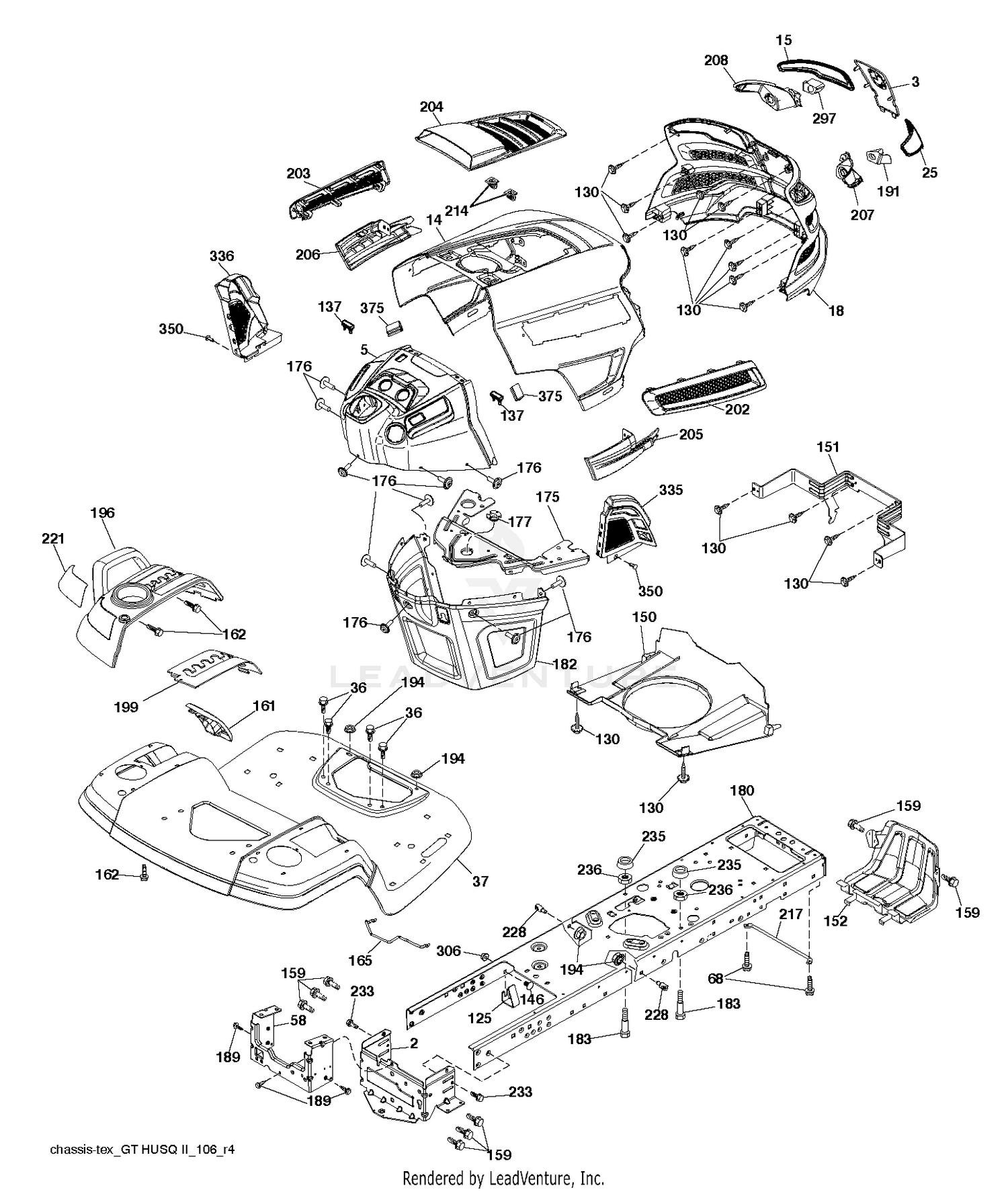

| Ref | Part Number | Description |
|---|
| 1 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 2 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 2 |
532412282 |
DRAWBAR.LOWER.2PC.18/22 Price: $32.99 |
| 3 |
3220-3 |
NUT-HJ Price: $0.28 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 4 |
76-9690-03 |
ROD-BRAKE This part replaces 76-9690. Price: $52.07 |
| 5 |
590748817 |
DASH.UPR.GT2.DUAL.RD.PT This part replaces 532437488. Price: $39.99 |
| 7 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 8 |
82-5190-03 |
PEDAL-TRACTION This part replaces 82-5190. Price: $140.00 |
| 9 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 10 |
63-9751 |
DISCONTINUED Price: Call Us |
| 11 |
88-1160 |
DISCONTINUED Price: Call Us |
| 12 |
3274-19 |
SCREW-HSH Price: $1.42 |
| 13 |
92-1367 |
LEVER-TRACTION Price: $84.25 |
| 14 |
323-9 |
SCREW-HH Price: $1.29 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 15 |
532439733 |
LENS.HEADLIGHT.LH.GTII.2011 Price: $11.99 |
| 15 |
82-4960 |
PAD-FOOT, BRAKE Price: $27.27 |
| 16 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 17 |
3234-14 |
SCREW-HHF Price: $0.61 |
| 18 |
597247201 |
Grilles This part replaces 532440653. Price: $84.99 |
| 18 |
76-9680 |
HUB-BRAKE Price: $54.35 |
| 19 |
256-90 |
BUSHING-FLANGE Price: $2.92 |
| 20 |
302-2 |
FITTING-GREASE Price: $1.89 |
| 21 |
92-5804-01 |
PEDAL-BRAKE, LH This part replaces 92-5804. Price: $97.16 |
| 22 |
256-10 |
BUSHING-FLANGE Price: $3.68 |
| 23 |
92-5805 |
PEDAL-BRAKE, RH Price: $133.73 |
| 24 |
92-2586-01 |
LEVER-BRAKE This part replaces 92-2586. Price: $75.15 |
| 25 |
32121-25 |
PIN-ROLL Price: $0.61 |
| 25 |
532443385 |
LENS.HEADLIGHT.RH.GTII.2011 Price: $11.99 |
| 26 |
92-5806-01 |
SHAFT-BRAKE This part replaces 92-5806. Price: $107.68 |
| 27 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 28 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 29 |
323-12 |
SCREW-HH Price: $1.14 |
| 30 |
76-9030 |
BRAKE SUPPORT ASM Price: $116.55 |
| 31 |
322-21 |
SCREW-HH Price: $4.29 |
| 32 |
66-1140 |
HUB-ADJUSTMENT Price: $15.52 |
| 33 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 34 |
63-8410 |
WASHER Price: $1.76 |
| 35 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 36 |
32128-20 |
NUT-HF Price: $0.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 37 |
532441208 |
FENDER.PNT.TX.GT.CH/FW/DL.HUSQ Price: $219.99 |
| 38 |
74-6110 |
STOP-TRACTION Price: $21.73 |
| 39 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 40 |
3218-2 |
NUT-JAM Price: $0.25 |
| 41 |
322-4 |
SCREW-HH Price: $0.35 |
| 42 |
84-1470 |
DECAL-SAFETY Price: $43.53 |
| 43 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 44 |
92-1370 |
DECAL-WARNING Price: $16.76 |
| 58 |
532412281 |
DRAWBAR.UPPER.2PC,LRG.FENDER Price: $37.99 |
| 68 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 125 |
581684801 |
CLIP.FUEL.LINE Price: $2.99 |
| 130 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 146 |
581857901 |
BOLT.RDHD.SHT.SQNK.3/8-16X5/8 Price: $3.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 This part replaces 532436086. Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 161 |
532401801 |
FUEL WINDOW This part replaces 532439929. Price: $5.99 |
| 162 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 165 |
532194330 |
SUPPORT.TANK.REAR.B/TE Price: $17.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE This part replaces 532196304. Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
582033101 |
KITS.TEX.BOLTED.CHASSIS.445559 This part replaces 532445559. Price: $229.99 |
| 182 |
532406859 |
DASH.LOWER.COMMON.12V.ADAPTOR Price: $84.99 |
| 183 |
595305701 |
Screws This part replaces 874520520. Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 196 |
532439674 |
CONSOLE.ASM.DECKLIFT.HUSQGT.DL Price: $84.99 |
| 199 |
532198259 |
PLATE.DECK.LIFT.HUSQVARNA.GT Price: $17.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 This part replaces 532435714. Price: $22.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 233 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 235 |
596564201 |
Spacers This part replaces 532406129. Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 306 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
