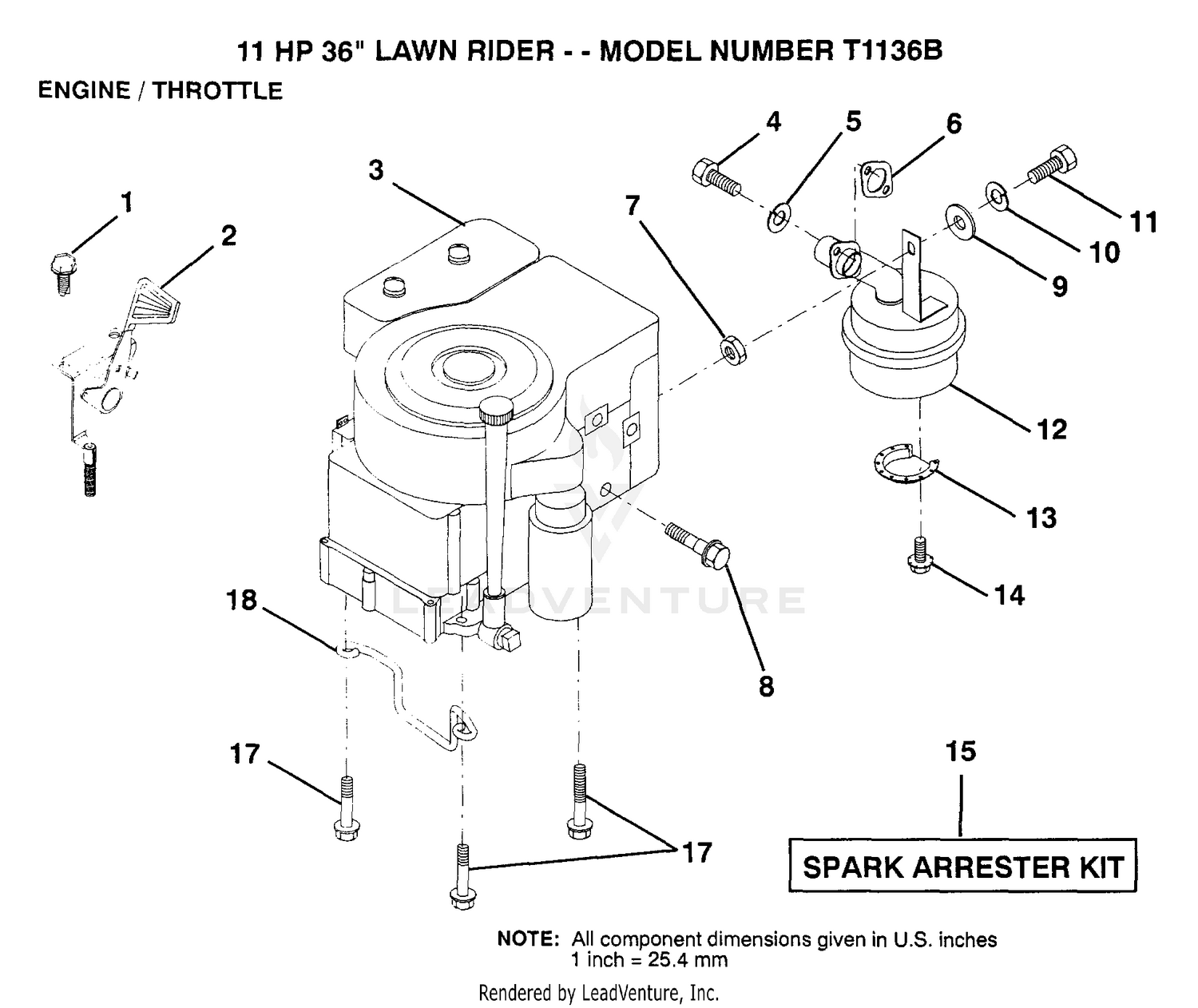

| Ref | Part Number | Description |
|---|
| 1 |
17720408 |
SCREW Price: Call Us |
| 2 |
132521 |
THROTTLE CONTROL Price: Call Us |
| 3 |
131996 |
ENGINE Price: Call Us |
| 4 |
71070512 |
SCREW Price: Call Us |
| 5 |
10040500 |
LOCKWASHER Price: Call Us |
| 6 |
125593X |
SUB= 272293 Price: Call Us |
| 7 |
73220500 |
NUT.HEX.5/16-18 Price: Call Us |
| 8 |
121094X |
BOLT T Price: Call Us |
| 9 |
19101216 |
WASHER Price: Call Us |
| 10 |
10040400 |
LOCKWASHER Price: Call Us |
| 10 |
105-3786 |
SPRING-START Price: $3.91 |
| 11 |
74760416 |
BOLT Price: Call Us |
| 12 |
124097X |
MUFFLER Price: Call Us |
| 13 |
101326L |
DEFLECTOR.222573 Price: Call Us |
| 14 |
17030808 |
SUB= 17030814 Price: Call Us |
| 15 |
121851X |
SUB= 532137180 Price: Call Us |
| 17 |
17490624 |
SCREW LT Price: Call Us |
| 20 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 30 |
115-4502 |
FORK LEVER ASM This part replaces 107-9082. Price: $551.34 |
| 35 |
98-9692 |
ROLLER Price: $11.45 |
| 36 |
107-9083 |
LEVER-THRUST Price: $29.76 |
| 40 |
107-9084 |
LEVER-FORK Price: $101.37 |
| 50 |
107-9085 |
SHAFT-LEVER, FORK Price: $24.90 |
| 60 |
107-9086 |
SHAFT-LEVER, FORK Price: $24.90 |
| 70 |
98-9570 |
BEARING-MINIATURIZE Price: $13.60 |
| 80 |
130-8182 |
KIT-SHAFT COVER, FORK LEVER This part replaces 98-9569. Price: $13.53 |
| 90 |
98-9682 |
GASKET Price: $0.95 |
| 100 |
98-9351 |
BOLT Price: $0.98 |
| 110 |
98-9567 |
COLLAR Price: $3.78 |
