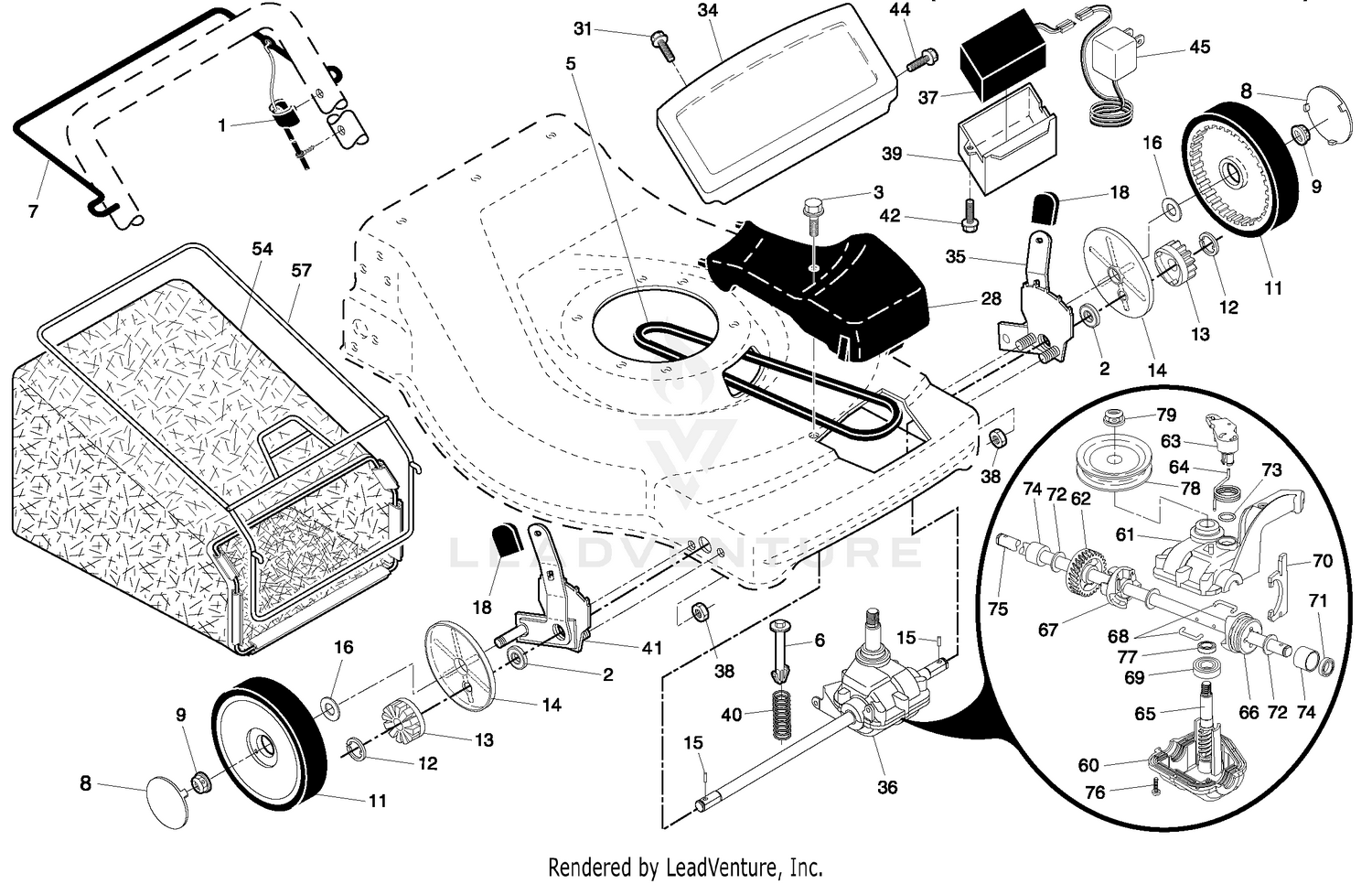

| Ref | Part Number | Description |
|---|
| 1 |
69-8750-03 |
BRAKE ASM Price: $121.25 |
| 2 |
191039 |
Bearing, Wheel Adjuster Price: Call Us |
| 2 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 3 |
175262 |
Pan Head Tapping Screw #10-24 x 2-3/4 Price: Call Us |
| 3 |
69-7700-03 |
PEDAL ASM Price: $51.40 |
| 4 |
93-7629 |
PAD-FOOT, BRAKE This part replaces 49-6170. Price: $25.13 |
| 5 |
146527 |
V-Belt Price: Call Us |
| 5 |
322-3 |
SCREW-HH Price: $0.79 |
| 6 |
150495 |
Retainer, Spring Price: Call Us |
| 6 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 7 |
194185X421 |
Bar, Drive Control Price: Call Us |
| 7 |
323-7 |
SCREW-HH Price: $0.65 |
| 8 |
32128-21 |
NUT-HF Price: $0.39 |
| 8 |
407793X421 |
Hubcap Price: Call Us |
| 9 |
409149 |
Locknut, Hex Price: Call Us |
| 9 |
69-2640 |
CYLINDER-MASTER Price: $367.32 |
| 10 |
353-994 |
FITTING-BRAKE Price: $13.81 |
| 11 |
180775 |
Wheel & Tire Assembly, Front Price: Call Us |
| 11 |
74-2530 |
FRONT BRAKE TUBE ASM Price: $70.21 |
| 12 |
12000058 |
E-Ring Price: Call Us |
| 12 |
218-243 |
TEE Price: $60.49 |
| 13 |
403849 |
Pinion Price: Call Us |
| 13 |
74-2510 |
LH BRAKE TUBE ASM Price: $86.75 |
| 14 |
189403 |
Dust Cover Price: Call Us |
| 14 |
74-2520 |
RH BRAKE TUBE ASM Price: $59.09 |
| 15 |
404845 |
Pawl, Drive Price: Call Us |
| 15 |
69-9340 |
SHAFT-CYLINDER, MASTER Price: $98.11 |
| 16 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 16 |
67725 |
Washer, Flat 3/8 Price: Call Us |
| 17 |
3220-2 |
NUT-JAM Price: $0.50 |
| 18 |
282-2 |
YOKE Price: $30.04 |
| 18 |
701037X421 |
Selector Knob Price: Call Us |
| 19 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 20 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 21 |
93-7039-01 |
BRACKET-BRAKE Price: $22.56 |
| 22 |
93-7037 |
SWITCH Price: $265.78 |
| 23 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 24 |
283-1 |
PIN-CLEVIS Price: $1.63 |
| 25 |
218-242 |
SWITCH-LIGHT, STOP Price: $60.78 |
| 26 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 27 |
32127-11 |
NUT-LOCK Price: $1.60 |
| 28 |
401271X428 |
Drive Cover Price: Call Us |
| 31 |
141841 |
Screw, Trimplate Price: Call Us |
| 34 |
411190 |
Trimplate Price: Call Us |
| 35 |
408862 |
Kit, Wheel Adjuster, LH Price: Call Us |
| 36 |
415226 |
Gear Case Assembly, Complete Price: Call Us |
| 37 |
189589 |
Battery Price: Call Us |
| 38 |
73800400 |
Locknut 1/4-20 Price: Call Us |
| 39 |
186237 |
Battery Box Price: Call Us |
| 40 |
137090 |
Spring Price: Call Us |
| 42 |
17411308 |
Screw, Battery Box Price: Call Us |
| 44 |
175551 |
Screw, Trimplate Price: Call Us |
| 45 |
190097 |
Charger, Battery Price: Call Us |
| 54 |
411062 |
Grassbag Assembly Price: Call Us |
| 57 |
411952 |
Frame, Grassbag Price: Call Us |
| 62 |
183499 |
Gear, 27 Teeth Price: Call Us |
| 63 |
183500 |
Lever, Clutch Price: Call Us |
| 64 |
183501 |
Spring, Return Price: Call Us |
| 65 |
416988 |
Shaft, Input Price: Call Us |
| 66 |
183503 |
Dog, Movable Price: Call Us |
| 67 |
183504 |
Dog, Fixed Price: Call Us |
| 68 |
183505 |
Wire, Formed Price: Call Us |
| 69 |
183506 |
Bearing, Ball Price: Call Us |
| 70 |
183507 |
Fork, Shift Price: Call Us |
| 71 |
183508 |
Seal, Output Shaft Price: Call Us |
| 72 |
183509 |
Washer Price: Call Us |
| 73 |
183510 |
Seal, Case Price: Call Us |
| 74 |
183511 |
Bushing Price: Call Us |
| 75 |
196561 |
Shaft, Output Price: Call Us |
| 76 |
183513 |
Screw Price: Call Us |
| 77 |
183514 |
Seal, Input Shaft Price: Call Us |
| 78 |
416987 |
Pulley, Drive Price: Call Us |
