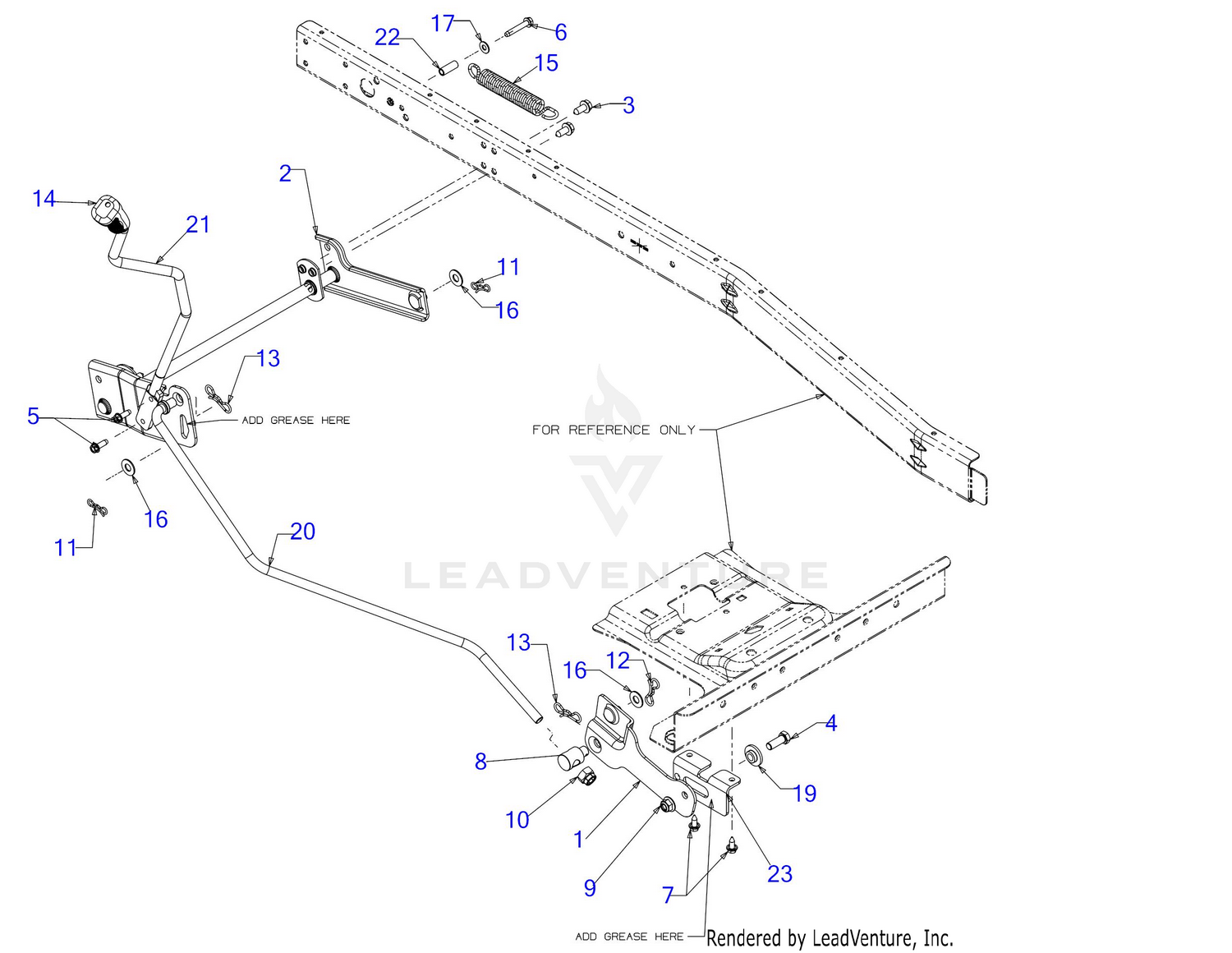

Deck Lift
Parts (21)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 683-04757-0637 | BRACKET ASSEMBLY Price: $22.36 |
| 2 | 683-05060-0637 | LIFT SHAFT ASSEMBLY Price: $37.25 |
| 3 | 710-04484 | SCREW 5/16-18 x .750 Price: $3.19 |
| 4 | 710-0514 | SCREW 3/8-16 x 1 GR5 Price: $3.78 |
| 5 | 710-0642 | SCREW 1/4-20 x .750 Price: $4.05 |
| 6 | 710-0778 | SCREW 1/4-20 x 1.50" Price: $3.90 |
| 7 | 710-1652 | SCREW 1/4-20X.625 Price: $3.86 |
| 8 | 711-05690C | FERRULE Price: $9.67 |
| 9 | 712-04065 | NUT Price: $3.68 |
| 10 | 712-04243 | NUT Price: $3.52 |
| 11 | 714-04040 | BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 12 | 714-04043 | PIN:COTTER Price: $4.24 |
| 13 | 714-05005 | BOW TIE COTTER PIN Price: $4.24 |
| 14 | 720-0311 | HANDLE GRIP Price: $13.26 |
| 15 | 732-04692 | EXTENSION SPRING .85 x 5.91 Price: $8.33 |
| 16 | 736-0300 | Fl-Wash. .385" I.D. This part replaces 936-0300. Price: $3.93 |
| 19 | 938-0347 | SHOULDER SPACER Price: $8.93 |
| 20 | 747-05511 | LIFT ROD Price: $23.25 |
| 21 | 747-07006 | DECK LIFT ROD Price: $27.99 |
| 22 | 750-0566A | SPACER Price: $9.17 |
| 23 | 783-07129 | FRONT DECK BRACKET Price: $4.76 |
