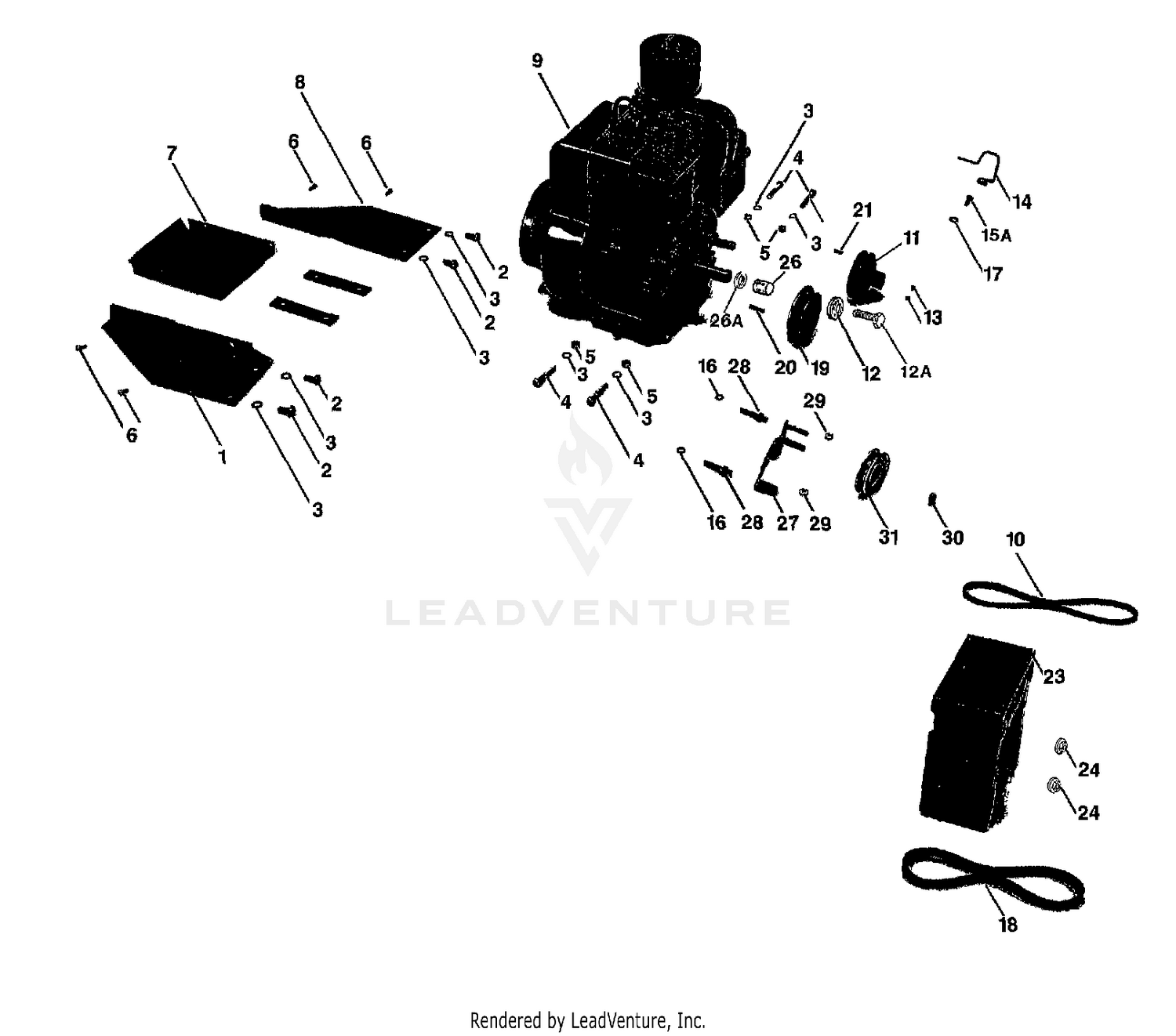

| Ref | Part Number | Description |
|---|
| 1 |
20754 |
BRKT-ENG LT P4 Not Available Price: |
| 2 |
9703 |
BOLT-hex head, 5/16-18 x 3/4", brackets to transmission Price: Call Us |
| 3 |
9912 |
LOCKWASHER-5/16" Price: $19.56 |
| 4 |
9758 |
BOLT-5/16"-18 x 1 1/2" Price: Call Us |
| 5 |
9801 |
NUT-hex, 5/16"-18 Price: Call Us |
| 6 |
9768 |
SCREW-hex head, No. 10-32 x 1/2" self-tapping (sems-with permanent washer) Price: $21.33 |
| 7 |
786-04080-0638 |
Belts/Pulleys Guard This part replaces 20673. Price: $18.41 |
| 8 |
20755 |
BRKT-ENG RT PNT Not Available Price: |
| 9 |
N/A |
ENGINE - Briggs & Stratton, standard recoil start with Magnetron ignition, 5 HP, Model 130292, Type 1900-01 |
| 11 |
20503 |
REVERSE PULLEY- engine driven, one groove, single belt Price: Call Us |
| 12 |
736-04193 |
Washer, 396 x 1140 x 095, B&S This part replaces 9944. Price: $5.94 |
| 12A |
710-0157 |
HEX SCREW 5/16-24 x .75 This part replaces 9655. Price: $3.90 |
| 13 |
9561 |
SET SCREW- socket head, 1/4"-20 x 1/4",(secures reverse engine pulley) Price: Call Us |
| 14 |
20555 |
BELT GUIDE Not Available Price: |
| 15A |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available This part replaces 9573. Price: |
| 16 |
9910 |
LOCKWASHER-1/4" Price: Call Us |
| 17 |
9900 |
WASHER-plain (flat), 1/4", S.A.E Price: $61.14 |
| 19 |
20765 |
ENGINE PULLEY Not Available Price: |
| 20 |
GW-9301 |
Key, 3/16 sq. x 1 This part replaces 9301. Price: $3.46 |
| 21 |
9361 |
KEY- Woodruff (size #5),reverse pulley to reverse PTO shaft Price: Call Us |
| 23 |
20655 |
COVER -shields belts and pulleys Price: Call Us |
| 24 |
9848 |
NUT-5/16"-18, locking, whiz-style Price: $10.95 |
| 26 |
9089 |
SPACER (on forward PTO shaft between engine and forward pulley) Price: Call Us |
| 26A |
736-04192 |
SHIM - same as above, 1/32" thick This part replaces 1138-2. Price: $5.94 |
| 27 |
20648 |
MOUNTING BRACKET- reverse idler pulley Price: Call Us |
| 28 |
EB94067 |
STUD-engine, reverse idler pulley mounting bracket (Briggs & Stratton part) Price: Call Us |
| 29 |
9811 |
LOCKNUT-1/4"-20 Price: Call Us |
| 30 |
690-239-0020 |
PRIMER BULB TEC Not Available This part replaces 9807. Price: |
| 31 |
9017 |
PULLEY-Reverse Idler (internal bushing type) Price: Call Us |
