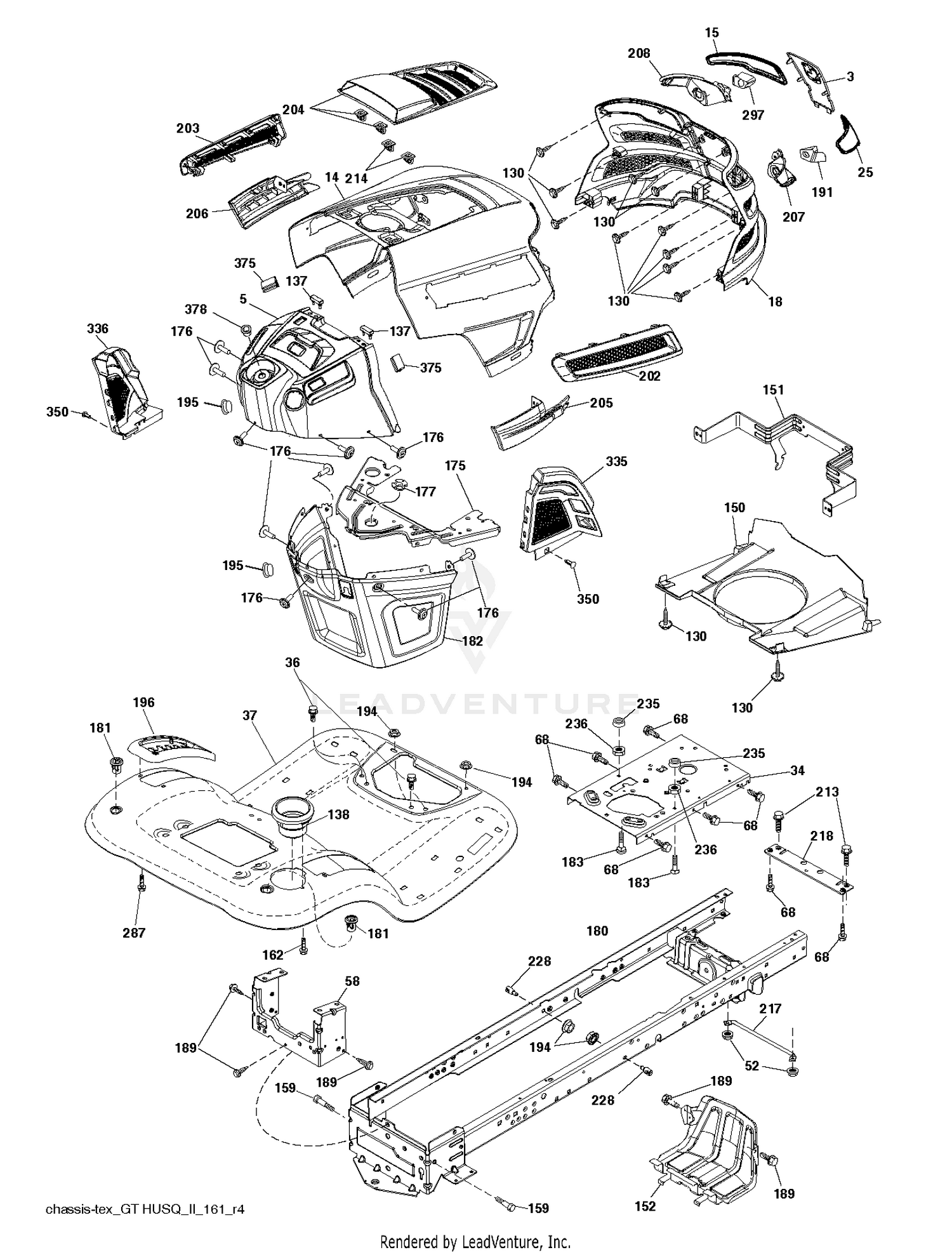

| Ref | Part Number | Description |
|---|
| 1 |
22-8330 |
PLUG Price: $64.59 |
| 2 |
237-42 |
O-RING Price: $2.78 |
| 3 |
22-8340 |
SPRING Price: $19.09 |
| 3 |
532444481 |
APPLIQUE.SUBASM.GT.HUSQ.II Price: $22.99 |
| 4 |
22-8350 |
BALL Price: $12.28 |
| 5 |
22-8370 |
SEAT-VALVE Price: $88.05 |
| 5 |
590748818 |
DASHBOARD.UPPER.ASM.GT2.X498 Price: $37.99 |
| 6 |
22-8360 |
PIN Price: $43.02 |
| 8 |
22-8420 |
SPOOL Price: $437.22 |
| 9 |
22-8500 |
O-RING Price: $18.87 |
| 10 |
22-8380 |
RETAINER Price: $17.86 |
| 11 |
22-8410 |
SPRING Price: $17.61 |
| 12 |
22-8390 |
RETAINER Price: $56.56 |
| 13 |
22-8400 |
SPACER Price: $42.41 |
| 14 |
22-8480 |
RING-SNAP Price: $49.87 |
| 14 |
587483301 |
KIT.HOOD.ASM.HUSQ.GT.TEX.668 This part replaces 532441177. Price: $74.99 |
| 18 |
597247201 |
Grilles This part replaces 587523401. Price: $84.99 |
| 34 |
580910801 |
PLATE.ENGINE.WELDED.CHASSIS Price: $59.99 |
| 36 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 37 |
597652401 |
SERVICE KIT FENDER.TLT.CPH.615 This part replaces 532441206. Price: $219.99 |
| 52 |
596040501 |
Hardware Price: $2.99 |
| 58 |
531152601 |
SERVICE KIT DRAWBAR FENDER DRA This part replaces 532412280. Price: $44.99 |
| 68 |
596030701 |
Screws Price: $2.99 |
| 130 |
596321701 |
Screws Price: $2.99 |
| 137 |
532407590 |
BUMPER DASH Price: $3.99 |
| 138 |
532439747 |
HOLDER.CUP.LT.GREY Price: $4.99 |
| 150 |
532439774 |
AIR.DUCT.GTV.BLACK Price: $39.99 |
| 151 |
531077401 |
SERVICE KIT PIVOT BRACKET BRAC This part replaces 532436670. Price: $37.99 |
| 152 |
532439870 |
SHIELD.BROWNING.PNT.GT.V2 Price: $14.99 |
| 159 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 162 |
596134101 |
Screws Price: $2.99 |
| 175 |
590607702 |
PLATE.PNT.CROSSMEMBER.HUSQ/PRE Price: $32.99 |
| 176 |
532400776 |
SCREW.#10-24X5/8.RN.QU Price: $4.99 |
| 177 |
532195228 |
BUSHING STEERING Price: $4.99 |
| 180 |
532415063 |
CHASS.WLDMNT.TL.12GA/2P.48/54 Price: $169.99 |
| 181 |
532403025 |
BUSHING.MNT.FEND.CRGO. This part replaces 532439746. Price: $4.99 |
| 183 |
595305701 |
Screws Price: $3.99 |
| 189 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 191 |
532437455 |
INSERT.REFLECTIVE.RH.HUSQ.GTII Price: $14.99 |
| 194 |
596135701 |
GSPW Nuts Price: $2.99 |
| 195 |
532404137 |
PLUG.HOLE.DASH.LOWER.12V.BLK Price: $4.99 |
| 196 |
547634701 |
CONSOLE.DECKLIFT.GREY.PKG.KIT This part replaces 532439647. Price: $17.99 |
| 204 |
587485801 |
VENT.TOP.ASM.HUSQ.GT2 Price: $22.99 |
| 213 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- Price: $3.99 |
| 214 |
532199145 |
CLIP.RETAINER.TINNER. Price: $2.99 |
| 217 |
532409167 |
ROD.PIVOT.HOOD Price: $9.99 |
| 218 |
532196395 |
X-PIECE.HOOD.STOP.NON/ Price: $6.99 |
| 228 |
593824001 |
STUD.W/"D"ANTI-ROTATION Price: $3.99 |
| 235 |
596564201 |
Spacers Price: $4.99 |
| 236 |
873930500 |
NUT.CENTERLOCK.5/16- Price: $3.99 |
| 287 |
817600406 |
SCREW 1/4X20 Price: $2.99 |
| 297 |
532437456 |
INSERT.REFLECTIVE.LH.HUSQ.GTII Price: $14.99 |
| 335 |
532448204 |
COVER.LOWER.DASH.RH.BLACK Price: $24.99 |
| 336 |
532445309 |
COVER-LH.LOWER.DASH.GT2.BLACK Price: $24.99 |
| 350 |
532445143 |
CLIP.X-MAS.TREE Price: $3.99 |
| 375 |
586908201 |
BUMPER CLIP-ON. DASH 1" Price: $3.99 |
| 378 |
590849801 |
BUSHING FLANGE; PLASTIC Price: $3.99 |
