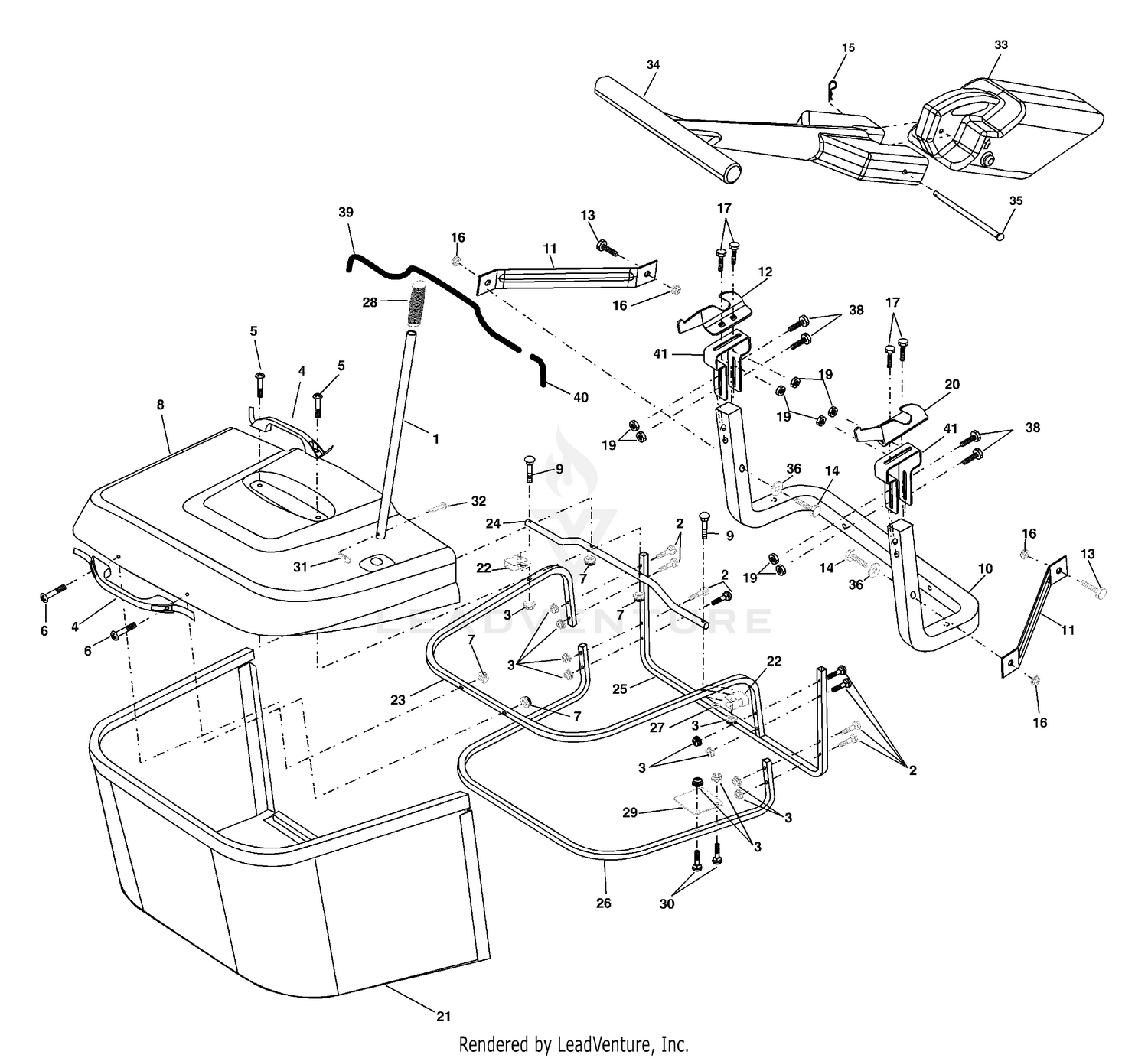

| Ref | Part Number | Description |
|---|
| 1 |
532170690 |
TUBE HANDLE BAGGER This part replaces 532165249. Price: $7.14 |
| 2 |
872140416 |
Bolt Carriage 1/4-20 x 2.0 Gr.5 Price: $4.99 |
| 3 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 4 |
532169916 |
HANDLE.BAGGER.W/LVRS.BLK.CRD Price: $9.99 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $4.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $4.99 |
| 7 |
873401000 |
NUT Price: $6.99 |
| 8 |
532165715 |
COVER.BAGGER.CRD.ORANGE This part replaces 532167980. Price: $289.99 |
| 9 |
872140418 |
Bolt Carriage 1/4-20 x 2.25d x Gr.5 Price: $7.99 |
| 10 |
583110201 |
TUBE.SUPPORT.BAGGER.CRD This part replaces 532169688. Price: $59.99 |
| 11 |
532165719 |
BRACKET.SUPPORT.UPPER.BAG.CRD Price: $9.99 |
| 12 |
532169685 |
BRACKET Price: $32.99 |
| 13 |
596136001 |
Bolts This part replaces 872110606. Price: $3.99 |
| 14 |
874520640 |
Bolt Hex 3/8-16 x 2-1/2 Gr.5 Price: $5.17 |
| 15 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 16 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 17 |
595901601 |
GSPW Bolts This part replaces 872140506. Price: $2.99 |
| 19 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD This part replaces 532169684. Price: $7.99 |
| 21 |
532180880 |
GRASS BAG This part replaces 532165780. Price: $130.99 |
| 22 |
532165781 |
BRKT.SIDE.BAG.CRD Price: $2.99 |
| 23 |
532165782 |
TUBE.UPPER.BAG.CRD Price: $279.99 |
| 24 |
532165783 |
TUBE.PIVOT.BAG.CRD.BLACK Price: $22.99 |
| 25 |
532165784 |
TUBE Price: $21.14 |
| 26 |
532165785 |
TUBE.LOWER.BAG.CRD Price: $32.99 |
| 27 |
532169692 |
BUSHING Price: $2.38 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $5.99 |
| 29 |
532165839 |
PLATE Price: $4.99 |
| 30 |
872140410 |
Bolt Carriage 1/4-20 x 1 Gr.5 Price: $7.99 |
| 31 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
532428683 |
MULCHING.PLUG.107.CRD.(2 2) This part replaces 532169380. Price: $37.99 |
| 34 |
532165570 |
HANDLE.MULCHER.92.CRD (2 2) Price: $44.99 |
| 35 |
532165572 |
PIN Price: $12.99 |
| 36 |
596134901 |
GSPH This part replaces 819132016. Price: $2.99 |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $4.99 |
| 39 |
532169997 |
SET OF SEALING STRIPS This part replaces 532169999. Price: $12.99 |
| 40 |
532169997 |
SET OF SEALING STRIPS This part replaces 532170000. Price: $12.99 |
