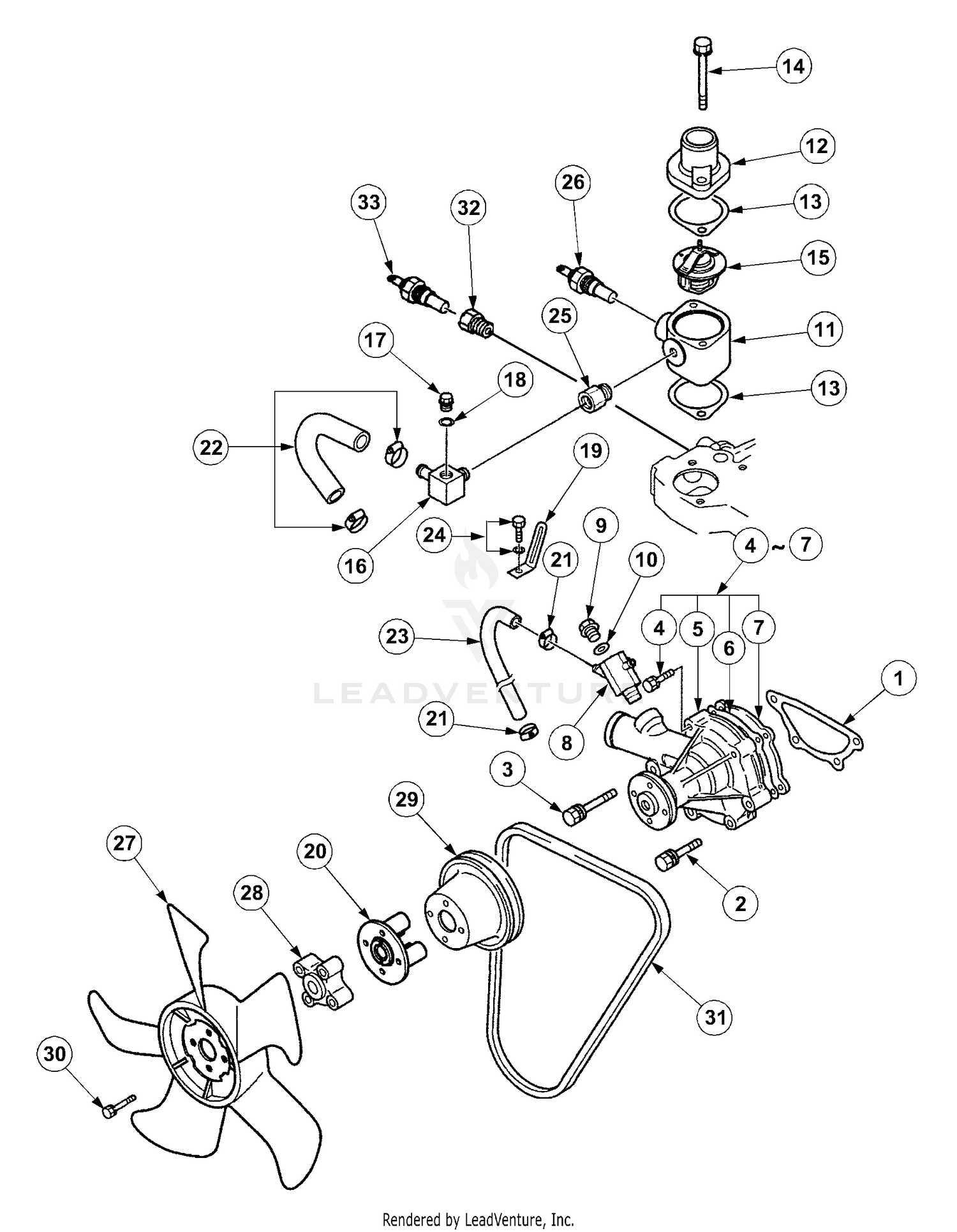

Cooling
Parts (53)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 577939001 | CHASSIS Price: $999.99 |
| 1 | MA-30H45-00101 | GASKET-WATER PUMP Not Available Price: |
| 2 | 94-5359 | DISCONTINUED Price: Call Us |
| 2 | MA-H1540108045 | BOLT W/WASHER Not Available This part replaces MA-MF244860. Price: |
| 3 | 33024-00 | NUT-LOCK, NI Price: $0.75 |
| 3 | MA-MF244863 | BOLT Not Available Price: |
| 4 | 33114-020 | SCREW-HH Price: $0.28 |
| 4 | MA-MF240031 | BOLT Not Available Price: |
| 5 | None | Body,Water Pump |
| 5 | 93-2191 | AIR CLEANER MOUNTING BAND ASM Price: $54.37 |
| 6 | 93-2190 | AIR CLEANER ASM Price: $217.17 |
| 6 | MA-MM409326 | GASKET Not Available Price: |
| 7 | 119-4129 | MUFFLER This part replaces 94-8153. Price: $304.30 |
| 7 | MA-MM409327 | PLATE Not Available Price: |
| 8 | 108-6485 | GUARD-MUFFLER This part replaces 94-9629. Price: $35.96 |
| 8 | MA-30H46-01300 | FITTING-WA Not Available Price: |
| 9 | 93-8069 | DECAL-SURFACE, HOT Price: $10.04 |
| 9 | MA-MM316248 | DRAIN PLUG Not Available Price: |
| 10 | 2112-9 | CLAMP Price: $7.78 |
| 10 | MA-30636-25900 | GASKET Not Available This part replaces MA-30636-25901. Price: |
| 11 | 93-2188 | EXHAUST BRACKET WA Price: $140.78 |
| 11 | MA-MM431970 | FITTING-TH Not Available Price: |
| 12 | 93-2181 | DISCONTINUED Price: Call Us |
| 12 | MA-MM40931301 | COVER-THERMOSTAT Not Available Price: |
| 13 | 33114-020 | SCREW-HH Price: $0.28 |
| 13 | MA-31A46-11200 | GASKET-THERMO CASE This part replaces MA-MD000551. Price: $8.71 |
| 14 | MA-MF241267 | BOLT Not Available Price: |
| 15 | MA-30A46-10700 | THERMOSTAT This part replaces MA-30A46-00700. Price: $52.26 |
| 16 | MA-30H46-01600 | FITTING-WA Not Available Price: |
| 17 | 93-2194 | DISCONTINUED Price: Call Us |
| 17 | MA-MM316248 | DRAIN PLUG Not Available Price: |
| 18 | 93-2035 | HOSE - AIR CLEANER Price: $81.72 |
| 18 | MA-30636-25900 | GASKET Not Available This part replaces MA-30636-25901. Price: |
| 19 | 2412-92 | CLAMP-HOSE Price: $2.44 |
| 19 | MA-MS470059 | CLIP Not Available Price: |
| 20 | 285-17 | PLUG-PIPE Price: $2.59 |
| 20 | MA-31A48-01100 | SPACER-FAN Not Available Price: |
| 21 | 94-3652 | COVER ASM Price: $90.38 |
| 21 | MA-05317-50161 | HOSE CLAMP WATER Not Available Price: |
| 22 | 87-9400 | VALVE-VACUATOR This part replaces 94-1414. Price: $11.48 |
| 22 | MA-30H46-02300 | HOSE ASSEMBLY-WATER TH Not Available Price: |
| 23 | MA-MS603031 | HOSE-WATER Not Available Price: |
| 24 | 33024-00 | NUT-LOCK, NI This part replaces 48-9510. Price: $0.75 |
| 24 | MA-MF240051 | SCREW Not Available Price: |
| 25 | 94-3654 | SPRING Price: $9.05 |
| 25 | MA-30H46-01700 | FITTING-CO Not Available Price: |
| 26 | MA-ME049274 | SWITCH-THERMO Not Available Price: |
| 27 | MA-MD009014 | COOLING FAN Not Available Price: |
| 28 | MA-MM434493 | SPACER,FAN Not Available Price: |
| 29 | MA-MM405460 | PULLEY Not Available Price: |
| 30 | MA-MF241238 | BOLT W/ WA Not Available Price: |
| 31 | MA-MD041704 | V Belt Price: $22.58 |
| 32 | MA-30A46-01200 | JOINT-TEMP Not Available Price: |
