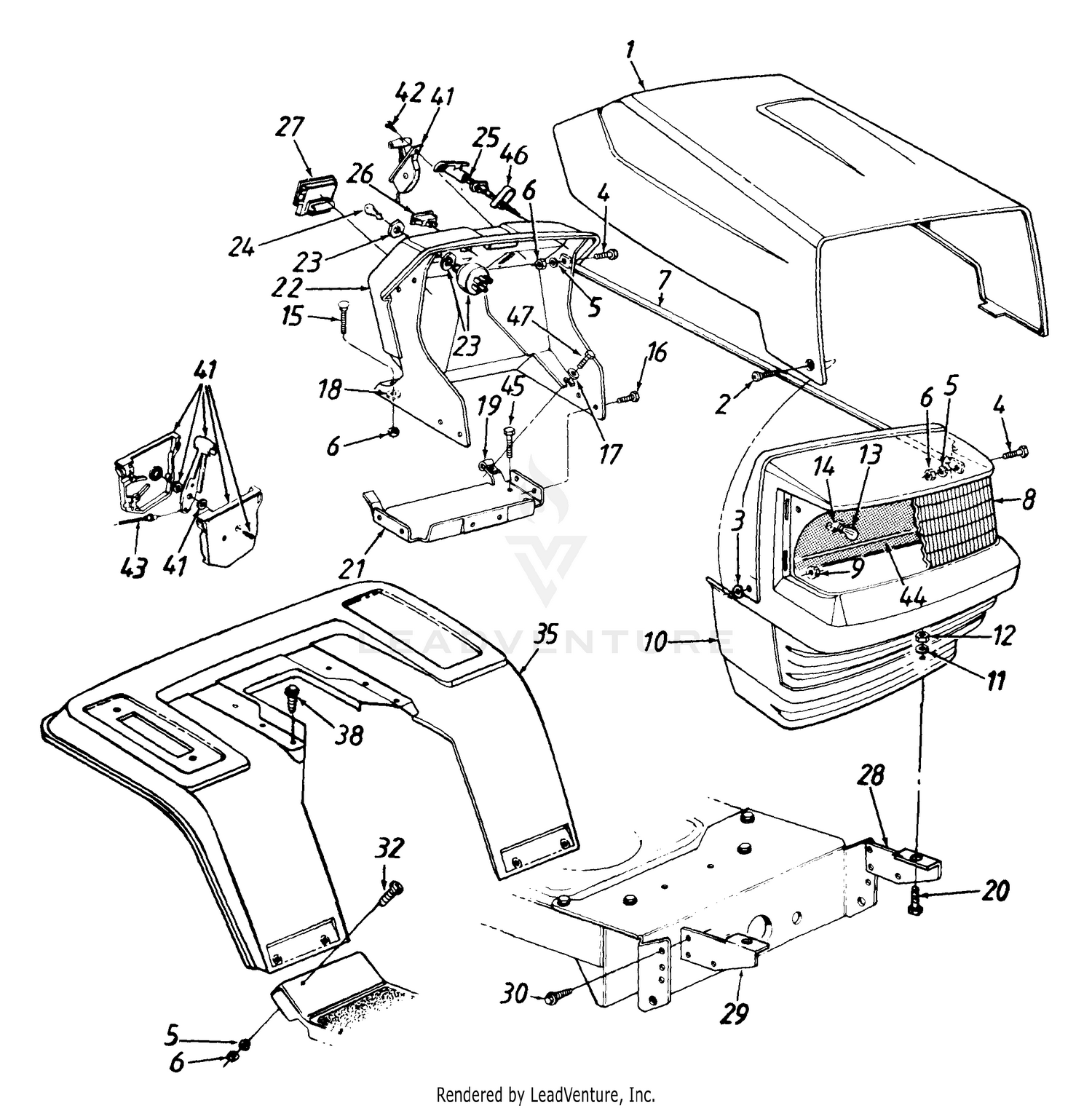

| Ref | Part Number | Description |
|---|
| 1 |
783-0250A |
HOOD-STY O W/LOUVERS Not Available This part replaces 17551A. Price: |
| 2 |
938-0952A |
Shoulder Bolt, .375 x .125 This part replaces 738-0724. Price: $6.17 |
| 3 |
736-0342 |
Fl-Wash. .28" I.D. x .75" O.D. Price: $6.24 |
| 7 |
749-0812 |
Grille Support Rod Price: $16.98 |
| 8 |
931-1099A |
Lens This part replaces 731-1099A. Price: $81.56 |
| 9 |
712-0380 |
LOCK NUT 1/4 x 28 Not Available Price: |
| 10 |
931-1097G |
GRILLE-10 STYLE Not Available This part replaces 731-1097A. Price: |
| 11 |
736-3078 |
Fl-Wash. .344" I.D. x 1" O.D. Price: $3.95 |
| 13 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 14 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 15 |
710-0703 |
Carriage Bolt 1/4-20 x .75" Lg. Price: $3.66 |
| 16 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 17 |
736-0173 |
Fl-Wash. .281" I.D. x .73" O.D. Price: $3.76 |
| 18 |
726-0233 |
Bolt Retainer 1/4" I.D. Price: $3.93 |
| 19 |
712-0185 |
SPEED NUT 1/4-20 Not Available Price: |
| 20 |
710-0118 |
Hex Bolt 5/16-18 x .75" Lg. Price: $3.76 |
| 22 |
731-1096A |
KIT-DASH Not Available Price: |
| 23 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 24 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 28 |
15821 |
BRACKET-GR Not Available Price: |
| 29 |
15822 |
BRACKET-GRILLE (RH) Not Available Price: |
| 30 |
710-0607 |
Hex Wash. Hd. Tap Scr. 5/16 x .5" Lg. Price: $6.06 |
| 32 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 35 |
17871A |
FENDER-RR Not Available Price: |
| 38 |
710-0726 |
Hex Wash. Hd. AB-Tap Scr. 5/16 x .75" Lg. Price: $3.82 |
| 41 |
831-0823A |
Throttle Box Ass'y. Price: $30.59 |
| 42 |
710-0779A |
Truss Mach. AB-Tap Scr. #10 x .5" Lg. Price: $3.85 |
| 44 |
777X40318 |
LABEL-REFLECTIVE Not Available This part replaces 777-9206. Price: |
| 45 |
710-0603 |
Hex Wash. Hd. B-Tap Scr. 5/16-18 x .5" Lg. Price: $4.19 |
| 46 |
17782 |
CLIP-CHOKE RETAINER Not Available Price: |
| 47 |
710-0642 |
Hex TT-Tap Scr. 1/4-20 x .75" Lg. Price: $4.05 |
