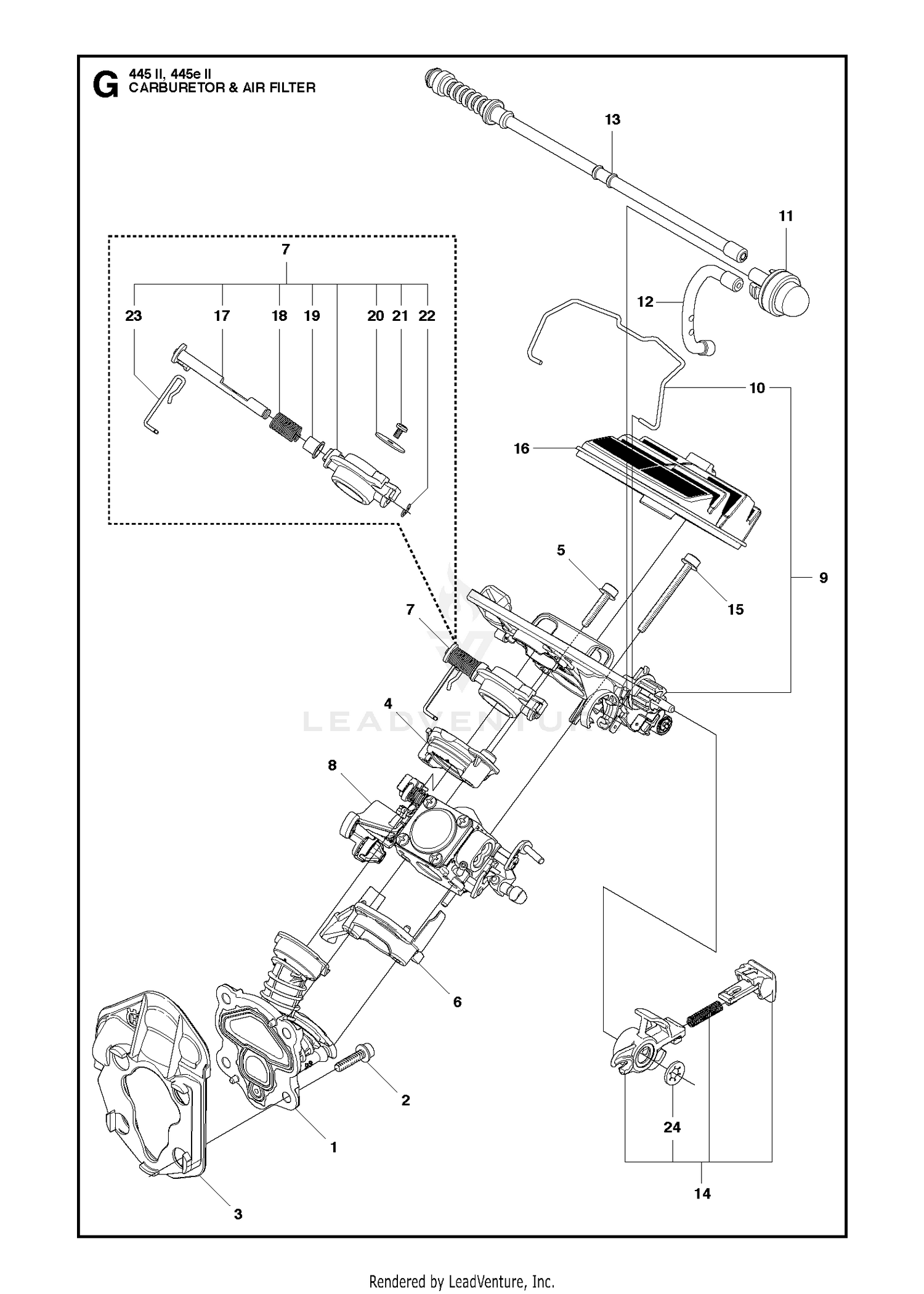

CARBURETOR & AIR FILTER
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544082301 | INLET PIPE ASSY Price: $37.99 |
| 2 | 503200216 | SCREW Price: $3.99 |
| 3 | 544083801 | INTERMEDIATE WALL Price: $5.99 |
| 4 | 544084001 | FLANGE Price: $3.99 |
| 5 | 503210725 | SCREW Price: $3.99 |
| 6 | 544084101 | FLANGE Price: $3.99 |
| 7 | 544148201 | THROTTLE Price: $27.99 |
| 9 | 505514701 | FILTER HOLDER ASSY This part replaces 504003401. Price: $11.99 |
| 10 | 544231401 | SHACKLE Price: $11.99 |
| 14 | 544359902 | CONTROL Price: $7.99 |
| 15 | 503210750 | SCREW Price: $2.99 |
| 17 | 502081001 | SHAFT ASSY Price: $14.99 |
| 18 | 502081101 | SPRING Price: $3.99 |
| 19 | 502080801 | COLLAR Price: $4.99 |
| 20 | 117-5542 | BRACKET Price: $47.03 |
| 21 | 503481801 | SCREW Price: $2.99 |
| 22 | 537385201 | CLIP Price: $2.99 |
| 23 | 502080901 | ROD Price: $11.99 |
| 24 | 735583000 | LOCK WASHER Price: $3.99 |
| 30 | 108-7088 | BOLT Price: $1.22 |
| 40 | 98-9360 | BOLT Price: $2.35 |
| 50 | 99-7526 | NUT This part replaces 98-7737. Price: $1.29 |
| 60 | 98-9366 | WASHER-PLAIN This part replaces 98-7696. Price: $0.28 |
| 70 | 98-7738 | WASHER-SPRING Price: $0.24 |
| 80 | 98-7692 | BOLT Price: $0.92 |
| 90 | 105-3745 | PULLEY-DRIVE, FAN Price: $293.55 |
