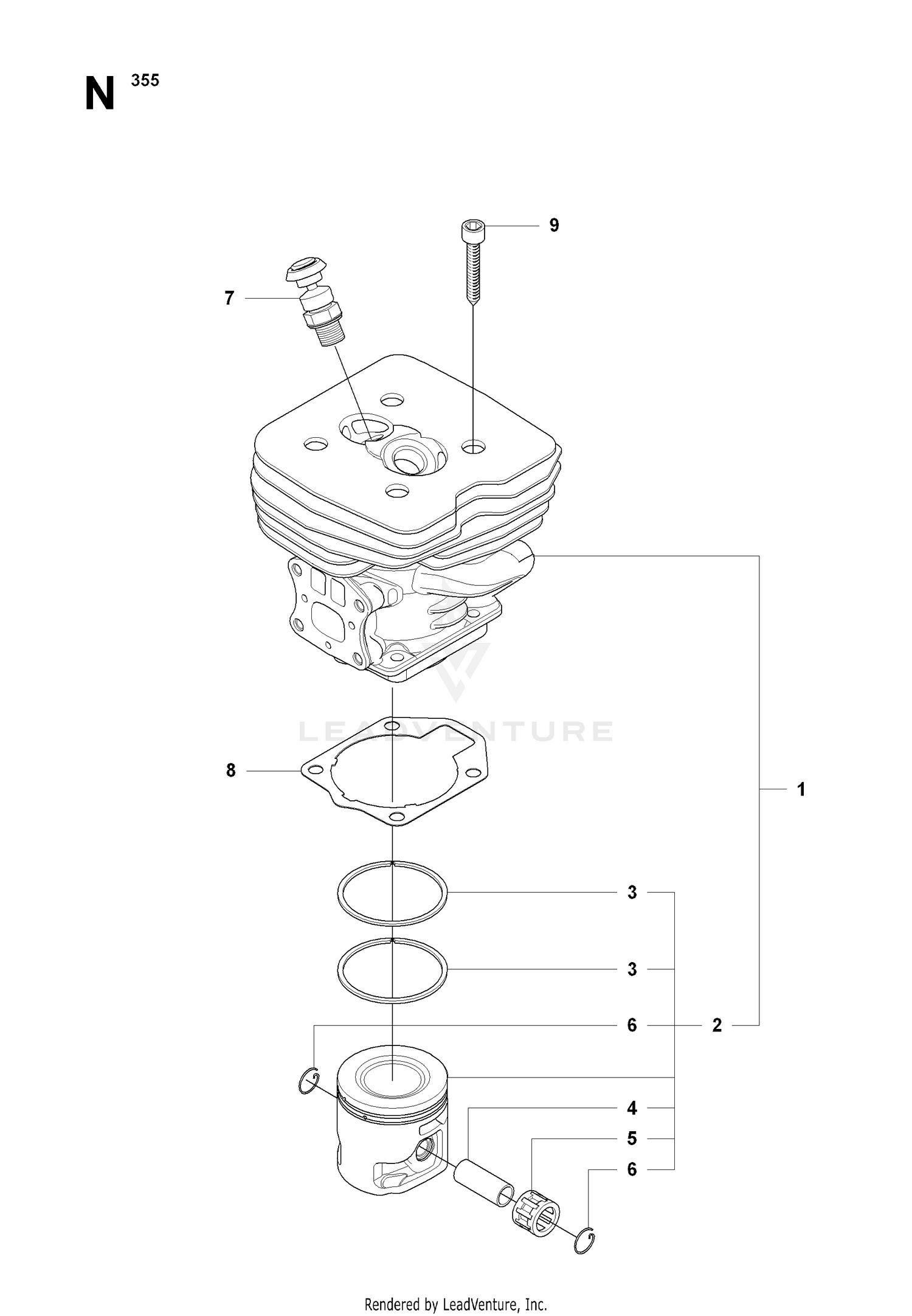

| Ref | Part Number | Description |
|---|
| 1 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 1 |
544986002 |
CYLINDER ASSY Price: $199.99 |
| 2 |
576954802 |
Pistons This part replaces 544144002. Price: $99.99 |
| 2 |
80-5330 |
BUSHING-FOLLOWER, CAM Price: $168.34 |
| 3 |
80-5240 |
GEARBOX Price: $1,415.26 |
| 4 |
237-171 |
O-RING Price: $20.07 |
| 4 |
544143701 |
PISTON PIN Price: $6.99 |
| 5 |
501451601 |
SUPPORT BUSHING Price: $11.99 |
| 5 |
80-5260-03 |
COVER This part replaces 80-5260. Price: $243.21 |
| 6 |
80-7020 |
VENT-FILTER Price: $48.46 |
| 7 |
353-550 |
PLUG-HYD, HH Price: $10.71 |
| 7 |
544200001 |
DECOMPRESSION VALVE Price: $29.99 |
| 8 |
237-79 |
O-RING Price: $5.46 |
| 8 |
537346801 |
GASKET Price: $3.99 |
| 9 |
322-4 |
SCREW-HH Price: $0.35 |
| 9 |
725533355 |
SCREW MC6S 5X25 Price: $3.99 |
| 10 |
115-9471 |
BEARING-CUP This part replaces 254-61. Price: $6.46 |
| 11 |
254-62 |
BEARING-ROLLER, CONE Price: $12.61 |
| 12 |
80-8340 |
SHAFT-PINION, TAPERED Price: $326.76 |
| 13 |
254-68 |
CONE-BEARING, ROLLER Price: $30.37 |
| 14 |
254-67 |
CUP-BEARING, ROLLER Price: $14.53 |
| 15 |
237-172 |
O-RING Price: $3.68 |
| 16 |
80-7030 |
SHIM-PINION (.002 RED) Price: $9.24 |
| 17 |
80-5320 |
HOUSING-BEARING, PINION Price: $130.59 |
| 18 |
323-5 |
SCREW-HH Price: $0.41 |
| 19 |
80-5300 |
HOUSING-BEARING, GEAR Price: $159.66 |
| 20 |
80-7040 |
SHIM-GEAR (.002 RED) Price: $9.24 |
| 21 |
237-25 |
O RING Price: $10.13 |
| 22 |
80-5280 |
GEAR Price: $899.96 |
| 23 |
80-8500 |
CAM Price: $280.78 |
| 24 |
32121-42 |
PIN-ROLL Price: $2.04 |
| 25 |
323-52 |
SCREW-HH Price: $3.63 |
| 26 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 27 |
80-8510 |
BLOCK-WEIGHT Price: $146.86 |
| 28 |
69-1170 |
GLASS-SIGHT Price: $31.63 |
| 29 |
237-81 |
O-RING Price: $2.76 |
| 30 |
340-98 |
FITTING-ELBOW, 90 DEG Price: $31.91 |
| 31 |
237-30 |
O-RING Price: $2.50 |
| 32 |
237-78 |
O-RING Price: $3.85 |
| 33 |
304-99 |
STEM-HOSE Price: $34.00 |
| 34 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 35 |
110-1876 |
HOSE-FUEL This part replaces 80-7360. Price: $11.99 |
| 36 |
253-148 |
SEAL Price: $22.46 |
