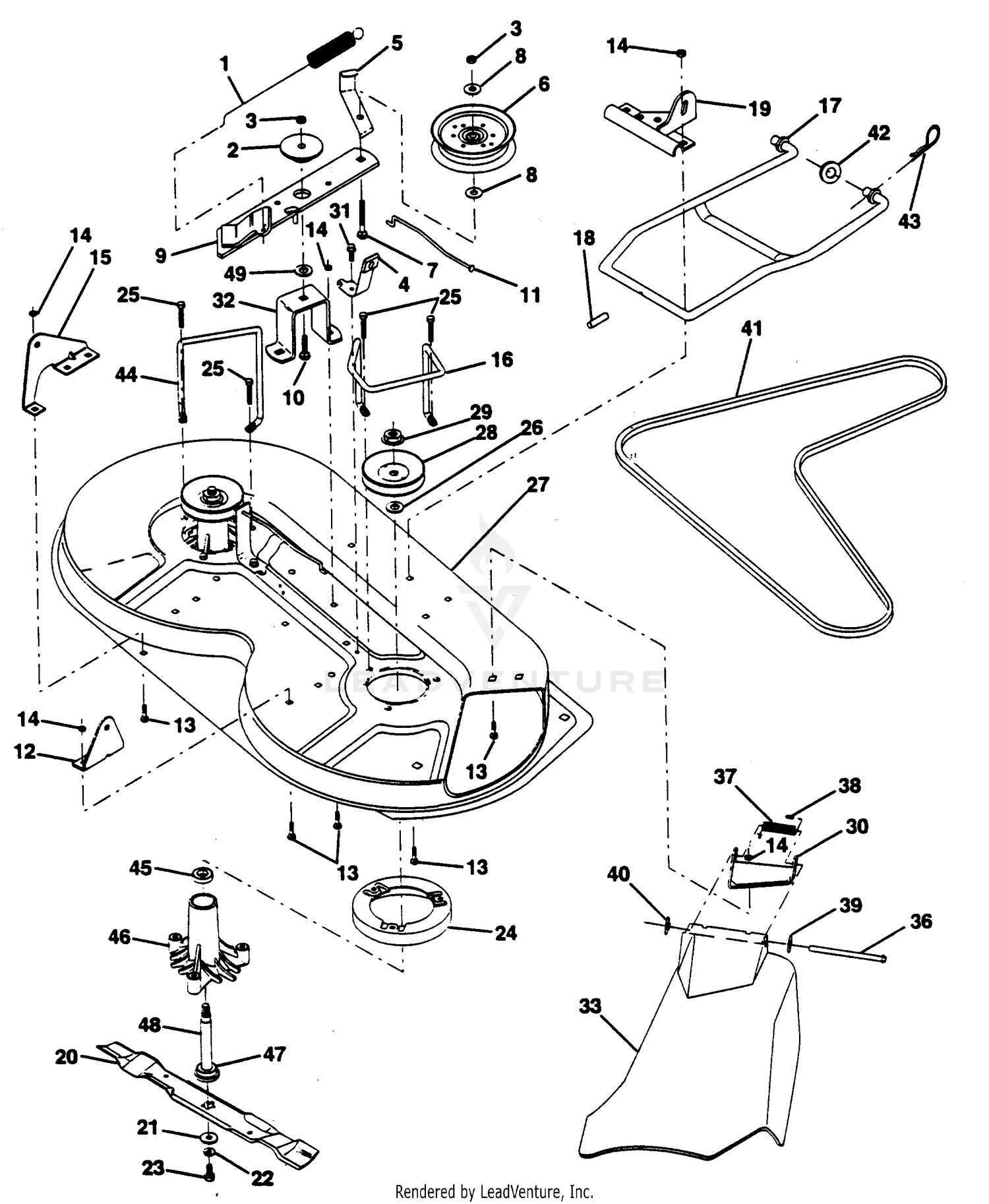

| Ref | Part Number | Description |
|---|
| 1 |
532140064 |
Spring, Mower Clutch Price: $12.99 |
| 2 |
532165723 |
Spacer Retainer This part replaces 532122052. Price: $2.99 |
| 2 |
84-8500-01 |
LEVER-PTO Price: $107.85 |
| 3 |
84-8520-01 |
BRACKET-SWITCH, PTO Price: $11.07 |
| 3 |
873680600 |
Nut This part replaces 873800600. Price: $1.99 |
| 4 |
283-42 |
PIN-CLEVIS Price: $40.05 |
| 4 |
532130840 |
Brake Asm. Price: $8.99 |
| 5 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 5 |
532131251 |
Guide, Belt Idler Price: $3.99 |
| 6 |
43-3860 |
SHAFT-PIVOT, PTO Price: $55.10 |
| 6 |
532121316 |
Pulley, Flat Idler Price: $22.99 |
| 7 |
106-4383 |
BELT-V, BANDED Price: $40.02 |
| 7 |
872110616 |
Bolt, Carr. 3/8-16 x 1-3/4 Gr. 5 Price: $3.99 |
| 8 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 8 |
734117201 |
WASHER This part replaces 819131410. Price: $1.99 |
| 9 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 9 |
532140092 |
IDLER ARM ASSY This part replaces 532127744. Price: $8.78 |
| 10 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 10 |
872140610 |
Bolt, Carriage 3/8-16 x 1-1/4 Price: $2.99 |
| 11 |
3-8812 |
SPACER-SPRING, ANCHOR Price: $15.47 |
| 11 |
532130841 |
Rod, Brake Price: $22.99 |
| 12 |
3256-6 |
WASHER-FLAT Price: $0.34 |
| 12 |
532127356 |
Bracket, Lift R. H. Rear Price: $3.99 |
| 13 |
5-1747 |
SPRING-ADJUSTMENT Price: $5.76 |
| 13 |
872140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: $2.69 |
| 14 |
873800500 |
Locknut, Hex w/Ins 5/16-18 Price: $2.69 |
| 14 |
92-5727 |
SCREW-LOCK, PATCH Price: $0.92 |
| 15 |
532127357 |
Bracket, Lift L. H. Rear Price: $4.99 |
| 15 |
92-5723 |
BUSHING-FORK, PTO Price: $4.74 |
| 16 |
110-9681-03 |
FORK-PTO This part replaces 92-4060-03. Price: $195.34 |
| 16 |
532153298 |
BELT KEEPER This part replaces 532140093. Price: $9.99 |
| 17 |
27-7370 |
PTO BRAKE ASM Price: $218.20 |
| 17 |
532128508 |
Link, Asm. Mower Stabilizer Price: $41.84 |
| 18 |
532128511 |
Pin, Drive Price: $2.99 |
| 18 |
93-3769 |
PIN-CLEVIS Price: $4.14 |
| 19 |
3296-28 |
NUT-LOCK, NI Price: $0.61 |
| 19 |
532127380 |
Bracket, Asm. Front Price: $7.99 |
| 20 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 20 |
532140101 |
Blade Mulching Price: $17.99 |
| 21 |
32121-9 |
PIN-ROLL, SLOTTED Price: $2.56 |
| 21 |
532140296 |
Washer, Hard Price: $2.99 |
| 22 |
21-1830 |
SPRING-EXTENSION Price: $34.62 |
| 22 |
539990118 |
WASHER.3/8 This part replaces 810030600. Price: $1.49 |
| 23 |
5-0701 |
ANCHOR Price: $4.07 |
| 23 |
532850857 |
Bolt 3/8-24 x 1-1/4 Gr. 8 Price: $1.99 |
| 24 |
212-93 |
CLAMP-CASING Price: $3.46 |
| 24 |
532174493 |
Stripper, Mower This part replaces 532140329. Price: $3.99 |
| 25 |
21-1600 |
CLAMP-LEVER, PTO Price: $279.65 |
| 25 |
532173984 |
BOLT, MANDREL This part replaces 532138776. Price: $2.99 |
| 26 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 26 |
532187690 |
SPACER, MANDREL This part replaces 532129963. Price: $1.99 |
| 27 |
32104-6 |
SCREW-HH, TAP Price: $3.19 |
| 27 |
532174082 |
KIT.HOUSING.MOWER.36.LR This part replaces 532129983. Price: $104.99 |
| 28 |
532173434 |
MANDREL PULLEY This part replaces 532129207. Price: $11.99 |
| 29 |
321-4 |
SCREW-HH Price: $0.99 |
| 29 |
532139729 |
KIT.NUT.FLANGE This part replaces 532137266. Price: $4.99 |
| 30 |
532136631 |
Bracket, Asm. Deflector Price: $8.99 |
| 30 |
86-7050 |
BRACKET-SWITCH, ACTUATOR Price: $16.28 |
| 31 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 31 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 32 |
43-9071 |
LIMIT SWITCH ASM Price: $182.60 |
| 32 |
532122051 |
Arm, Support Idler Mower Price: $3.99 |
| 33 |
532175029 |
SHIELD.DEFL.MWR.36" This part replaces 532131560. Price: $19.99 |
| 36 |
532121980 |
Rod, Hinge Price: $3.99 |
| 37 |
532123713 |
Spring, Torsion Deflector Price: $3.99 |
| 38 |
532105304 |
Cap, Sleeve Price: $2.99 |
| 39 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02 |
| 40 |
532110452 |
Pushnut Price: $1.99 |
| 41 |
532131264 |
V-Belt Price: $19.99 |
| 42 |
532052160 |
Washer This part replaces 819171616. Price: $3.99 |
| 43 |
532003146 |
SPRING RETAINER This part replaces 532124660. Price: $1.99 |
| 44 |
532140608 |
Keeper, L. H. Price: $17.99 |
| 45 |
532110485 |
Bearing Price: $7.99 |
| 46 |
532128774 |
Housing Mandrel Vented Price: $22.99 |
| 47 |
738220419 |
BALL-BEARING 6204-2RS This part replaces 532129895. Price: $14.99 |
| 48 |
532137646 |
KIT MANDREL W/NUT This part replaces 532137645. Price: $17.99 |
| 49 |
532178515 |
Washer Hardened This part replaces 532133943. Price: $2.99 |
