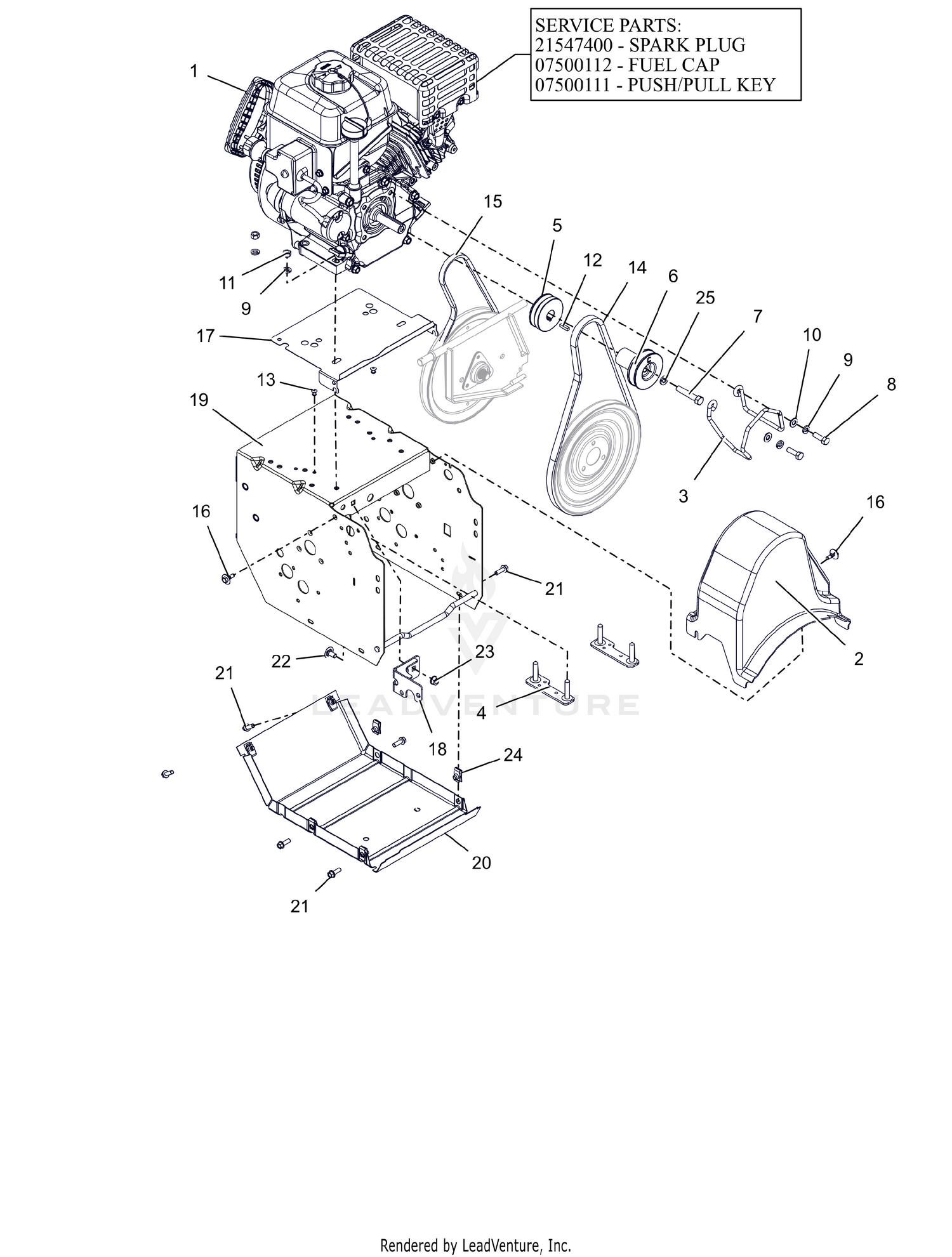

| Ref | Part Number | Description |
|---|
| 1 |
08200922 |
ENGINE, ARIENS AX208 240V/60W Price: Call Us |
| 2 |
03881000 |
COVER, COMPACT BELT Price: $18.45 |
| 3 |
04561800 |
FINGER, BELT Price: $22.95 |
| 4 |
00188400 |
STRAP, ENGINE BOLT-WELDMENT Price: $16.45 |
| 5 |
04553400 |
SHEAVE, TRACTION-COMPACT TRACK Price: $81.95 |
| 6 |
05243600 |
SHEAVE, ATTACHMENT SINGLE GRV Price: $25.45 |
| 7 |
05902015 |
BLT, HEX .38-24X2.00 G5 ZCC Price: $2.95 |
| 8 |
05902108 |
BLT, HEX 0.3125-24X1 G5 ZCC Price: $1.95 |
| 9 |
06300123 |
WSHR, LK-HVY .312X.097 ZCC Price: $0.45 |
| 10 |
06401017 |
WSHR,FLT .344X.688X.065 ZCC Price: $0.45 |
| 11 |
06500938 |
NUT, HEX .312-18 ZCC Price: $0.95 |
| 12 |
06606100 |
KEY-SQ .188X.75X.188 Price: $3.45 |
| 13 |
06800140 |
RVT, POP .1875 ZCC Price: $0.95 |
| 14 |
07200725 |
V-BELT, HA-RAW EDGE Price: $25.95 |
| 15 |
07200114 |
V-BELT, 3L-WRAPPED Price: $22.45 |
| 16 |
07400108 |
SCR-TAP .25-20X.5 CAPTIVE Price: $2.45 |
| 17 |
04895151 |
BAFFLE, COMPACT Price: $6.45 |
| 18 |
00657059 |
WELDMENT, FRAME BRACKET Price: $29.95 |
| 19 |
04875659 |
FRAME, MAIN-WELDMENT Price: $101.95 |
| 20 |
00492359 |
COVER, BOTTOM Price: $43.45 |
| 21 |
05901824 |
BLT, HWH .25-20X.75 G5 ZCC Price: $1.45 |
| 22 |
06200333 |
BLT, RHSSN .31-18X.625 G5 ZCC Price: $1.45 |
| 23 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC Price: $0.95 |
| 24 |
07009000 |
NUT-RTNR .25-20X.56 Price: $0.95 |
