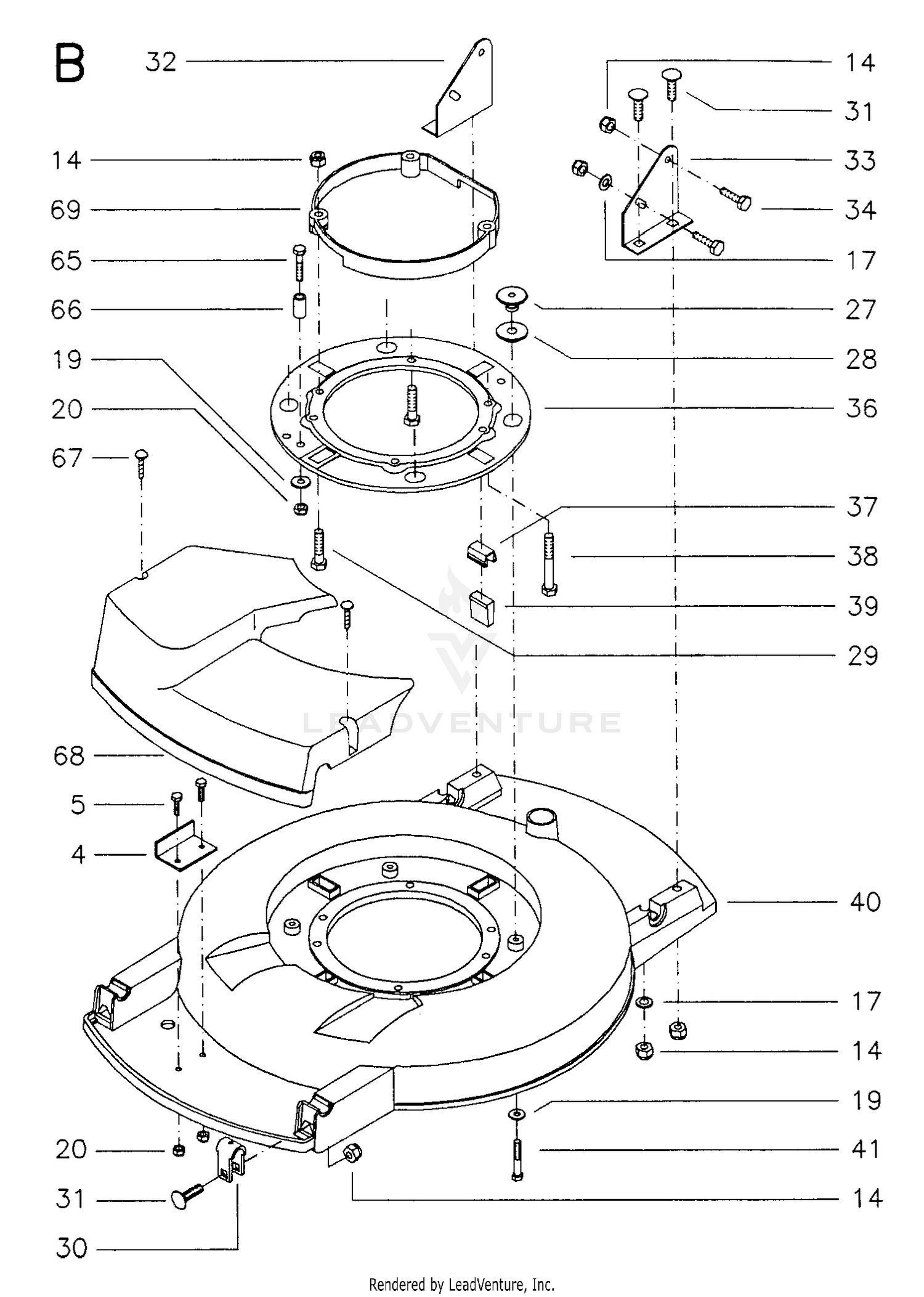

CHASSIS / FRAME
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 4 | 516643401 | PLATE Price: $7.94 |
| 5 | 725236851 | Screw Price: $1.32 |
| 14 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 17 | 596204101 | WASHER 11/32 X 11/16 X 14 GA T This part replaces 734116301. Price: $2.99 |
| 19 | 516449101 | WASHER Price: $2.15 |
| 20 | 732211601 | LOCKNUT M6 Price: $4.99 |
| 27 | 516644002 | WASHER Price: $10.91 |
| 28 | 516939800 | WASHER Price: $6.99 |
| 29 | 725246351 | SCREW Price: $4.99 |
| 30 | 515139855 | BEARING HOLDER Price: $3.94 |
| 31 | 727645501 | SCREW Price: $8.99 |
| 32 | 516434601 | HANDLE BRACKET Price: $9.99 |
| 33 | 516434701 | HANDLE BRACKET Price: $9.99 |
| 34 | 725244951 | BOLT - M8X16 Price: $2.99 |
| 36 | 516493711 | ADAPTER Price: $43.99 |
| 38 | 515700890 | SCREW Price: $3.87 |
| 39 | 516940200 | DAMPER Price: $17.99 |
| 40 | 517835207 | COVER Price: $336.99 |
| 41 | 725237456 | SCREW Price: $4.99 |
| 65 | 725237651 | BOLT FLANGE Price: $3.99 |
| 66 | 516495301 | SPACER Price: $3.99 |
| 67 | 729542201 | SCREW Price: $2.99 |
| 68 | 517835507 | COVER Price: $77.36 |
| 69 | 516931523 | RING Price: $49.29 |
