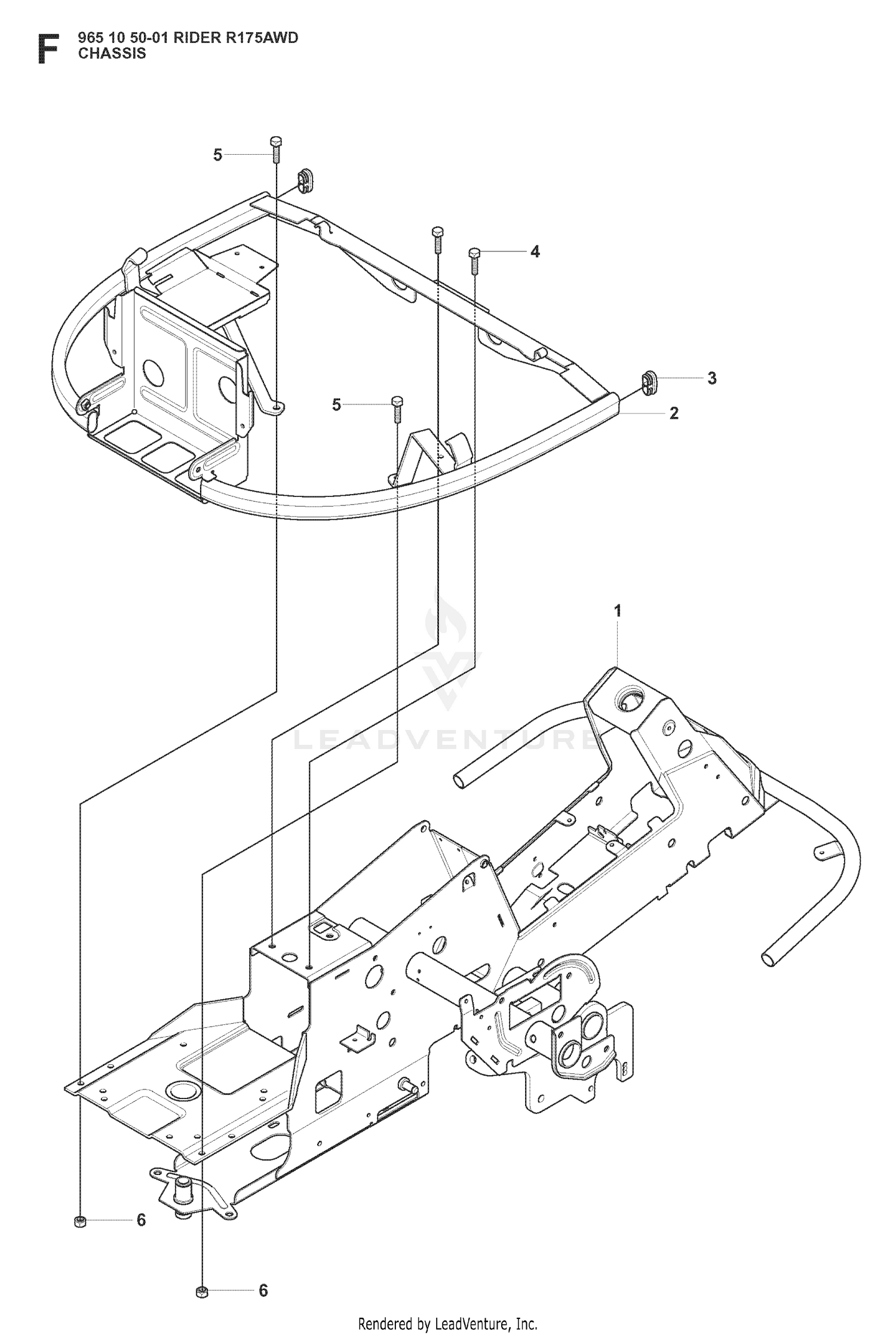

CHASSIS / FRAME
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 110-8260 | TUBE-VENT, RH Price: $45.53 |
| 1 | 544842401 | FRAME Price: $849.99 |
| 2 | 3290-412 | RIVET-BLIND Price: $3.19 |
| 3 | 544244401 | PLUG Price: $1.99 |
| 3 | 92-2379 | CLAMP-HOSE Price: $0.34 |
| 4 | 506570103 | BOLT Price: $3.99 |
| 5 | 110-8261 | TUBE-VENT, LH Price: $45.53 |
| 5 | 725245171 | SCREW Price: $2.08 |
| 6 | 110-6186 | HOSE-FUEL Price: $15.70 |
| 6 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 7 | 112-6349 | SCREW-HWH Price: $0.27 |
| 8 | 110-5540-03 | COVER-TOOLBOX Price: $31.98 |
| 9 | 144-7258 | DECAL-SERVICE INSTRUCTIONS This part replaces 125-2747. Price: $51.07 |
| 10 | 32149-8 | NUT-KEPS Price: $0.88 |
| 11 | 125-9170 | CAP-FUEL, DIESEL (ULTRA LOW SULFUR) Price: $40.55 |
| 12 | 131-5509 | LH FUEL TANK ASM Price: $567.76 |
| 13 | 108-2024 | HINGE Price: $54.81 |
| 14 | 110-5539 | SPACER Price: $18.21 |
| 15 | 95-1905 | WASHER-RUBBER Price: $1.89 |
| 16 | 105-6814 | WASHER-PLAIN Price: $0.69 |
| 17 | 3256-24 | WASHER-FLAT Price: $0.28 |
| 18 | 323-39 | SCREW-HH Price: $1.60 |
| 19 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 20 | 2412-89 | CLAMP-R Price: $2.09 |
| 21 | 322-10 | SCREW-HH Price: $0.70 |
| 22 | 112-9561 | PAD-FOAM Price: $1.25 |
| 23 | 107-4543 | CLAMP Price: $13.47 |
| 24 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 25 | 132-8116 | RH FUEL TANK ASM Price: $567.76 |
| 26 | 92-1239 | SPACER-SUPPORT Price: $16.42 |
