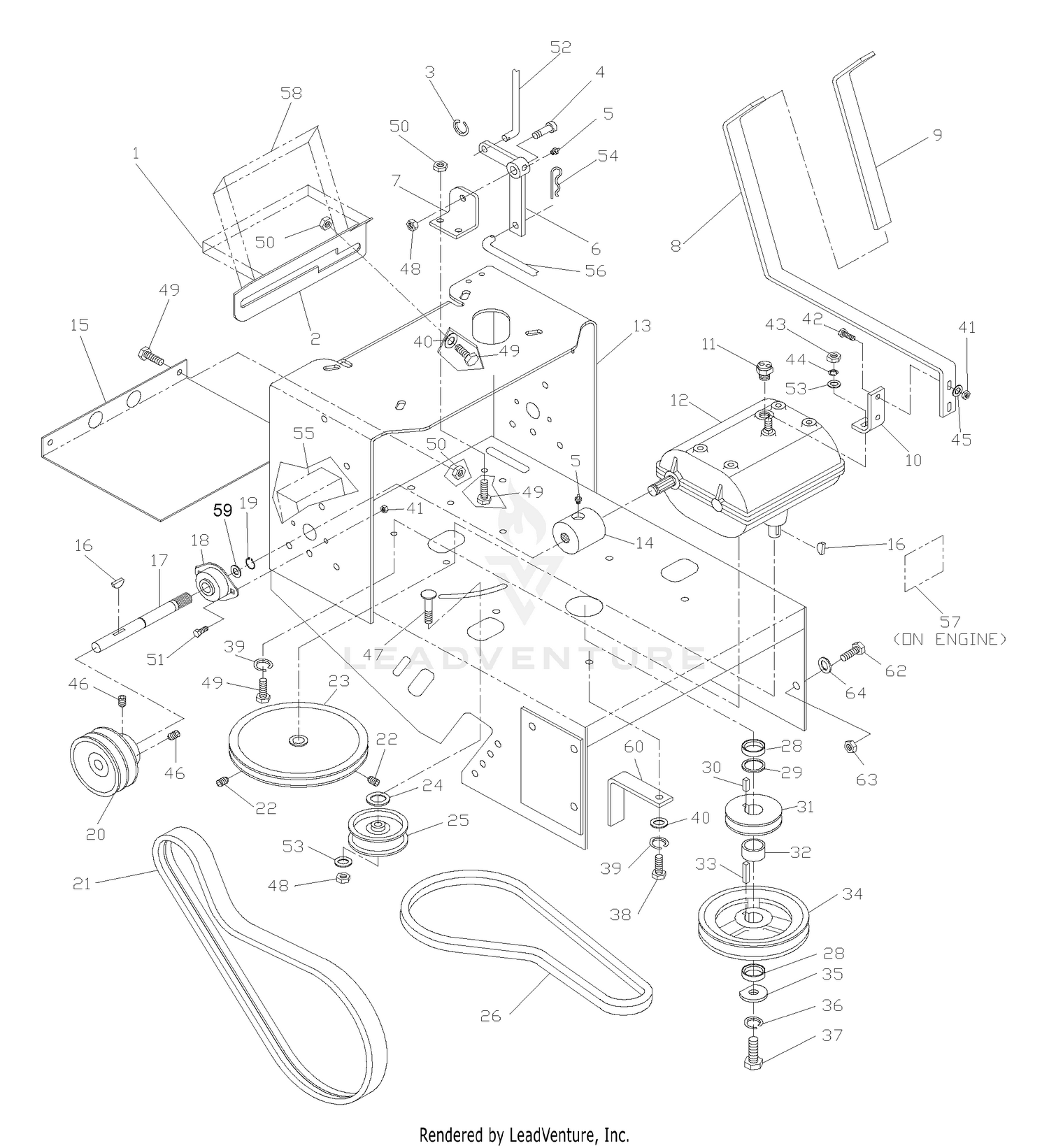

Transmission & Shifter Assembly

Transmission & Shifter Assembly

Parts (73)

RefPart NumberDescription
1 106-2669 DISCONTINUED This part replaces 70-8160. Price: Call Us
1 539100277 DECAL, SHIFTER Price: $2.99
2 539101960 SHIFTER PLATE Price: $17.99
3 539916459 RETAINER Price: $3.99
3 65-4560 PLUG Price: $14.82
4 539100150 SB 12C X 34 Price: $8.99
4 65-4570 SEAL Price: $6.24
5 596899901 GSPW Zerks This part replaces 539976998. Price: $2.99
5 70-8180 DISCONTINUED Price: Call Us
6 539100066 BELLCRANK Price: $37.99
6 65-4550 BALL-VALVE, CHECK Price: $4.59
7 539104648 BRACKET Price: $7.82
7 70-8150 VALVE PLATE Price: $265.01
8 539101961 SHIFTER ARM Price: $34.99
9 539101965 SHIFTER GRIP Price: $6.99
9 70-8140 DISCONTINUED Price: Call Us
10 539102165 SHIFTER BRACKET Price: $24.99
10 70-8190 DISCONTINUED Price: Call Us
11 539100148 SWITCH, TRANS Price: $34.99
11 65-4640 KEY Price: $15.19
12 539102162 TRANSMISSION WB Price: $449.99
12 65-4620 O-RING Price: $9.89
13 539106498 REAR DECK W/DECALS Price: $499.99
13 65-4650 DISCONTINUED Price: Call Us
14 539102164 COUPLING Price: $39.99
14 65-4500 RING-RETAINING Price: $10.98
15 539104547 LOWER BELT SHIELD Price: $37.99
16 539910211 KEY, #9 WOODRUFF Price: $2.99
17 539102163 DRIVE SHAFT Price: $49.99
18 539101967 BEARING Price: $27.99
19 539101971 RETAINER RING Price: $2.99
19 65-4600 WASHER Price: $24.64
20 65-4610 DISCONTINUED Price: Call Us
21 65-4590 SNAP RING This part replaces 70-8170. Price: $21.11
22 539101988 SETSCREW, 1/4-20 NYLOC Price: $2.99
23 539101964 PULLEY, INPUT Price: $37.99
24 595316401 Washers This part replaces 539990550. Price: $2.99
25 539919078 IDLER PULLEY Price: $27.99
26 539101957 BELT, TRANSMISSION Price: $27.99
28 539921960 SPACER Price: $2.99
29 539102050 BUSHING, 10GA MACHINERY Price: $2.99
30 539105718 SQUARE KEY - 1/4 X .5 Price: $0.62
31 539919148 PULLEY Price: $30.99
32 539101720 SPACER Price: $12.99
33 539101995 KEY 1/4 SQ X 1 1/8 Price: $2.99
34 539101834 PULLEY, ENGINE Price: $49.99
35 596770301 Washers This part replaces 539106504. Price: $4.99
36 596238901 Washers This part replaces 539990247. Price: $2.99
37 539100141 HCS 7/16F X 1 1/2 Price: $7.99
38 539100567 HCS M8-1.25 X 30MM Price: $2.99
39 596238801 WASHER SPRING LOCK WASHER WITH This part replaces 539990187. Price: $2.99
40 596134901 GSPH This part replaces 539990692. Price: $2.99
41 539990761 NUT 1/4C CENTER LOCK Price: $2.99
42 539977761 HCS 1/4C X 1 Price: $2.99
43 539990155 NUT 3/8F Price: $2.99
44 596238701 Washers This part replaces 539990118. Price: $3.99
45 597338501 Washers This part replaces 539990598. Price: $12.99
47 595901401 Bolts This part replaces 539100145. Price: $2.99
48 595305901 Nuts This part replaces 539990546. Price: $2.99
49 596030501 SCREW HEXAGON HEAD SCREW 5/16- This part replaces 539976934. Price: $3.99
50 596580701 Nuts This part replaces 539990184. Price: $2.99
51 596582501 Bolts This part replaces 539990072. Price: $2.99
52 539101972 BLADE ROD Price: $12.99
53 596433701 GSPW Washers This part replaces 539990517. Price: $2.99
54 596273101 Pins This part replaces 539976989. Price: $2.99
55 539105744 DECAL, BELT DRIVE Price: $5.99
56 539102048 BLADE ROD 36" Price: $13.99
57 539100128 DECAL, EXHAUST Price: $1.99
58 539102047 DECAL, CLUTCH Price: $1.99
59 596933401 Washers This part replaces 539991043. Price: $2.99
60 539103462 BELT GUIDE - LONG Price: $9.99
62 594944601 Bolts This part replaces 539101175. Price: $2.99
63 539990839 NUT 7/16C CENTERLOCK Price: $2.99
