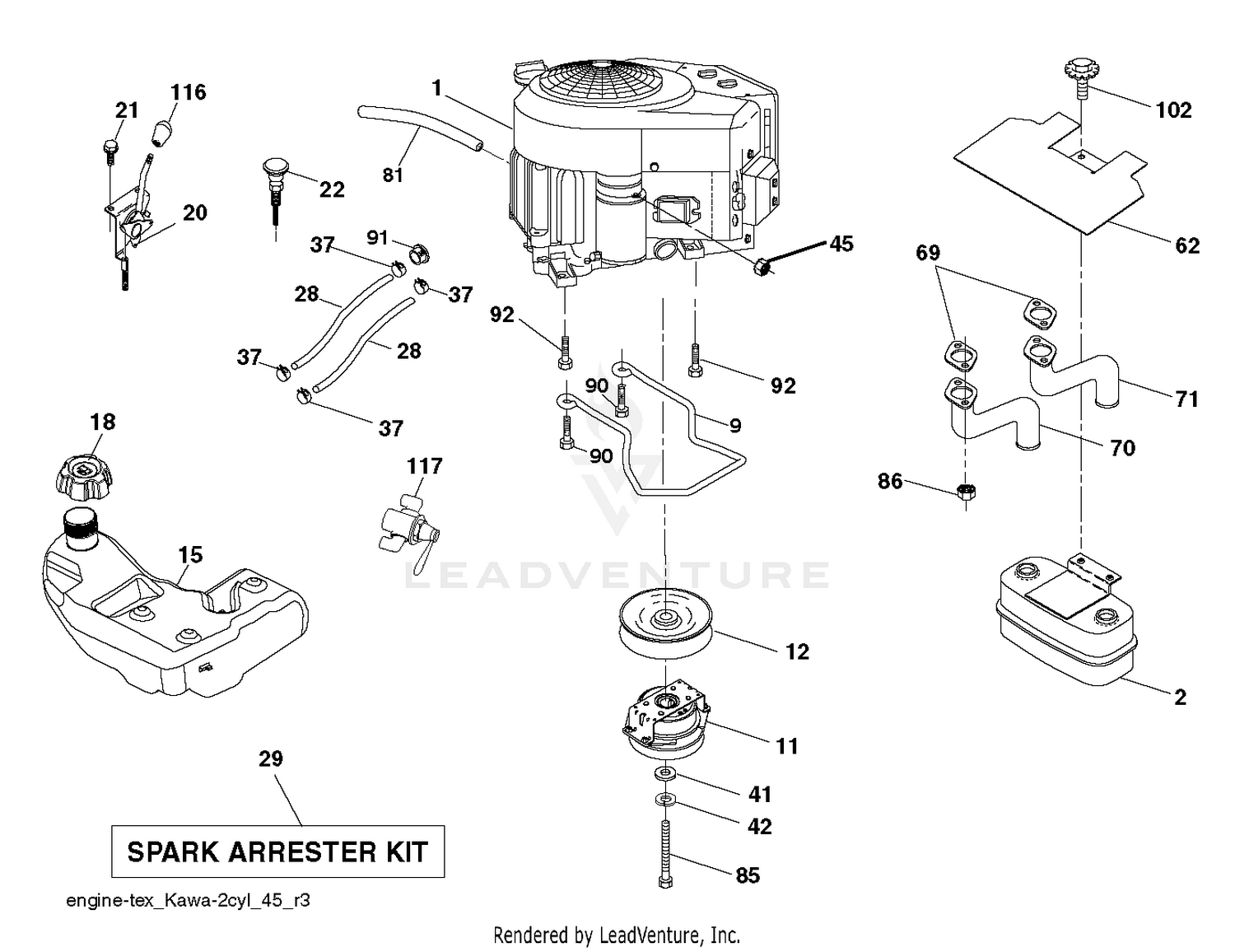

| Ref | Part Number | Description |
|---|
| 1 |
108-3282 |
HOSE-FUEL This part replaces 37-9560. Price: $36.93 |
| 2 |
2412-6 |
CLAMP-HOSE Price: $4.57 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 589818701. Price: $44.99 |
| 3 |
353-781 |
FITTING-HYD, 90 Price: $24.44 |
| 4 |
63-7650 |
SEPARATOR-FILTER / WATER This part replaces 63-8280. Price: $155.85 |
| 5 |
63-8290 |
VENT-AIR Price: $19.94 |
| 6 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 7 |
109-0310 |
HOSE-FUEL This part replaces 71-2690. Price: $6.09 |
| 8 |
63-8310 |
VALVE-DRAIN Price: $13.54 |
| 9 |
596501502 |
Keepers This part replaces 501832602. Price: $9.99 |
| 9 |
69-1760 |
PROBE-SENSOR, WATER Price: $273.95 |
| 10 |
237-154 |
O-RING Price: $3.67 |
| 11 |
117-9432 |
SPIN ON ELEMENT KIT This part replaces 69-1770. Price: $35.14 |
| 11 |
587255001 |
CLUTCH. 5.0 PD. 2.5 OFFSET Price: $229.99 |
| 12 |
586899601 |
PULLEY.EXTENDED.SHAFT.GROUND Price: $29.99 |
| 15 |
532422804 |
TANK FUEL Price: $149.99 |
| 18 |
584248702 |
CAP.ASSY.FUEL.3".N-EPA.GRY.498 Price: $14.99 |
| 20 |
532424341 |
CONTROL.THROTTLE.PRO. Price: $34.99 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 28 |
587044861 |
HOSE 1/4" LOW PERMEATION FUEL Price: $14.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 62 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532434017. Price: $11.99 |
| 69 |
532178151 |
GASKET Price: $4.99 |
| 70 |
583955601 |
TUBE.EXHAUST.LH.FR961/FR730 Price: $24.99 |
| 71 |
583955701 |
TUBE.EXHAUST.RH.FR961/FR730 Price: $24.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 85 |
501606701 |
BOLT.HEX.7/16-20X5.GR5.GREEN Price: $7.99 |
| 86 |
532184362 |
NUT.HEX.FLANGE.TOPLOCK Price: $3.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 92 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
