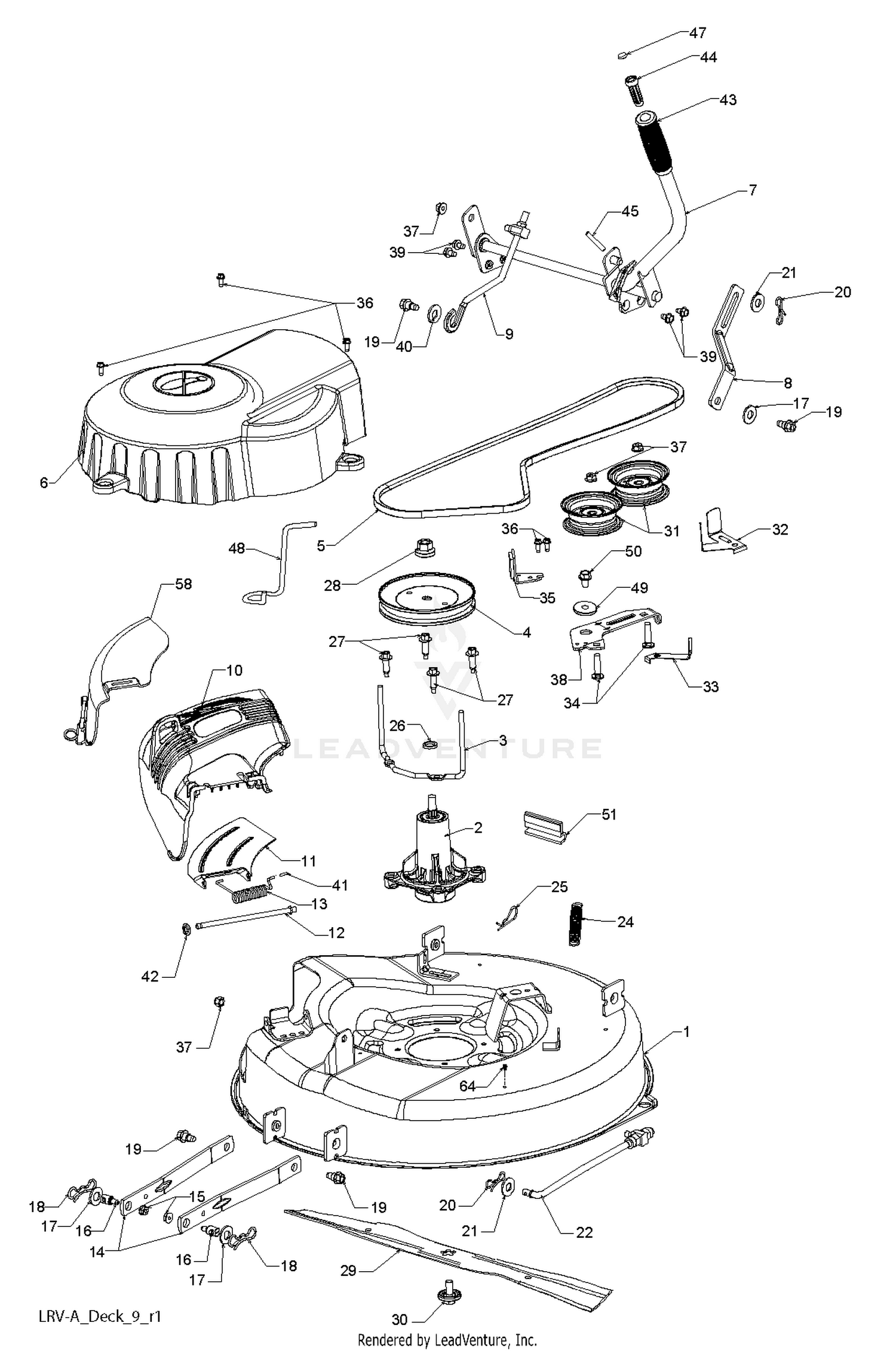

| Ref | Part Number | Description |
|---|
| 1 |
3-8394 |
DISCONTINUED Price: Call Us |
| 1 |
584344001 |
DECK.WELDMENT.26LRV This part replaces 532428193. Price: $159.99 |
| 2 |
3-7138 |
DISCONTINUED Price: Call Us |
| 2 |
587253301 |
MANDREL.NONGREASEABLE.TALL This part replaces 532192870. Price: $32.99 |
| 3 |
3296-45 |
NUT-HEX Price: $3.79 |
| 3 |
532432520 |
KEEPER.BELT.MANDREL.PULLEY Price: $5.99 |
| 4 |
325-3 |
SCREW-HH Price: $1.49 |
| 4 |
532432594 |
PULLEY.MANDREL Price: $11.99 |
| 5 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 5 |
532428578 |
BELT Price: $32.99 |
| 6 |
322-10 |
SCREW-HH Price: $0.70 |
| 6 |
532428242 |
COVER, MANDREL Price: $27.99 |
| 7 |
20-4890 |
DISCONTINUED Price: Call Us |
| 7 |
532429395 |
LIFT.ASM.DECK.LRV Price: $54.99 |
| 8 |
3210-3 |
SCREW-HH Price: $5.29 |
| 8 |
532429195 |
LINK, DECK LIFT Price: $5.99 |
| 9 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 9 |
532429397 |
LINK.ASM.LIFT.ADJUSTABLE Price: $17.99 |
| 10 |
4-2320 |
DISCONTINUED Price: Call Us |
| 10 |
583536201 |
DEFLECTOR.LRV.26 This part replaces 532438923. Price: $32.99 |
| 11 |
256-148 |
FLANGE BUSHING Price: $14.60 |
| 11 |
532428968 |
SUPPORT, DEFLECTOR Price: $7.99 |
| 12 |
117127 |
TIRE (16 X 6.5-8) 2-PLY -2 WHEEL AXEL This part replaces 231-39. Price: $107.13 |
| 12 |
532131491 |
ROD.HINGE Price: $1.99 |
| 13 |
3-2889 |
DISCONTINUED Price: Call Us |
| 13 |
532197026 |
SPRING.TORSION.DEFLECT Price: $5.99 |
| 14 |
532418863 |
ARMS.SUSP.MOWER.REAR.SRD Price: $4.99 |
| 15 |
3-8014 |
AXLE SHAFT Price: $49.11 |
| 15 |
583612701 |
NUT HEX,LOCK,FLAN This part replaces 873900500. Price: $3.99 |
| 16 |
3-6514 |
THRUST WASHER Price: $1.74 |
| 16 |
532195161 |
STUD.FASTNER.W/ANTI-ROTATE Price: $3.99 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 17 |
819191912 |
WASHER.CLEAR.ZINC Price: $3.99 |
| 18 |
5108 |
VALVE This part replaces 232-27. Price: $6.29 |
| 18 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $1.99 |
| 19 |
242-39 |
WHEEL ASM Price: $244.32 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $4.99 |
| 20 |
242-33 |
DISCONTINUED Price: Call Us |
| 20 |
532194208 |
PIN.COTTER.5/16.BOW TI Price: $1.99 |
| 21 |
323-6 |
SCREW-HH Price: $0.66 |
| 21 |
819171912 |
WASHER Price: $3.99 |
| 22 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 22 |
532429350 |
LINK.ASM.TOP.DECK.LRV Price: $19.99 |
| 23 |
3-6506 |
DISCONTINUED Price: Call Us |
| 24 |
3255-9 |
WASHER-LOCK Price: $0.28 |
| 24 |
532429531 |
SPRING.EXTENSION.DECK.LRV Price: $2.99 |
| 25 |
5-0460 |
STRG SWAGED CABLE ASM Price: $96.86 |
| 25 |
532004497 |
RETAINER M This part replaces 532124788. Price: $5.99 |
| 26 |
3-8011 |
DISCONTINUED Price: Call Us |
| 26 |
532187690 |
WASHER.SPACER.MANDREL Price: $1.99 |
| 27 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 27 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $1.99 |
| 28 |
242-32 |
LUG NUT Price: $4.77 |
| 28 |
532400234 |
NUT.FLANGE.LOCK.TOP Price: $3.99 |
| 29 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 29 |
583537201 |
BLADE.LRV.BAGGING This part replaces 532439052. Price: $54.99 |
| 30 |
32146-1 |
DISCONTINUED Price: Call Us |
| 30 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $5.99 |
| 31 |
5-5560 |
DISCONTINUED Price: Call Us |
| 31 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $14.99 |
| 32 |
5-1257 |
DISCONTINUED Price: Call Us |
| 32 |
532141043 |
GUARD, BELT Price: $3.99 |
| 33 |
5-2106 |
PVT CSTR/SFT WA*RO Price: $291.44 |
| 33 |
532193414 |
KEEPER BELT Price: $3.99 |
| 34 |
32128-13 |
NUT-HF Price: $1.79 |
| 34 |
872110612 |
BOLT.3/8-16X1.50 Price: $3.99 |
| 35 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 35 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $11.99 |
| 36 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 36 |
532137729 |
SCREW.1/4-20X5/8 Price: $2.99 |
| 37 |
32153-3 |
NUT-HEX, SIDE DEFORM This part replaces 32146-5. Price: $5.59 |
| 37 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.99 |
| 38 |
3-6493 |
DISCONTINUED Price: Call Us |
| 38 |
532428435 |
ARM, IDLER Price: $5.99 |
| 39 |
3217-6 |
NUT-HEX Price: $1.19 |
| 39 |
817490508 |
SCREW LT Price: $3.99 |
| 40 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 40 |
819171616 |
Washer 17/32 x 1-1/6 x 13 Gauge (AYP part number) Price: $5.99 |
| 41 |
32121-48 |
PIN-SPRING Price: $0.61 |
| 41 |
532105304 |
CAP-SLEEVE LT Price: $2.99 |
| 42 |
532110452 |
NUT PUSH M Price: $1.99 |
| 43 |
20-4900 |
DISCONTINUED Price: Call Us |
| 43 |
532125631 |
GRIP HANDLE Price: $3.99 |
| 44 |
3-7993 |
DISCONTINUE Price: Call Us |
| 44 |
532429401 |
PLUNGER.ASM.LRV Price: $14.99 |
| 45 |
5-5540 |
DISCONTINUED Price: Call Us |
| 45 |
532105767 |
PIN GROOVE. Price: $2.99 |
| 46 |
325-9 |
SCREW-HH Price: $1.87 |
| 47 |
322-13 |
SCREW-HH Price: $2.73 |
| 47 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532124526. Price: $5.99 |
| 48 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 48 |
532438610 |
KEEPER.BELT Price: $2.99 |
| 49 |
3290-239 |
DISCONTINUED Price: Call Us |
| 49 |
532199092 |
SPACER.RETAINER Price: $3.99 |
| 50 |
3-6501 |
DISCONTINUED Price: Call Us |
| 50 |
817000616 |
SCREW 3/8-16X1 Price: $3.99 |
| 51 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 51 |
532404742 |
BUMPER.HOOD.TEX.HUSQVARNA Price: $2.99 |
| 58 |
532429758 |
COVER.ASM.MULCH.26"LRV Price: $19.37 |
