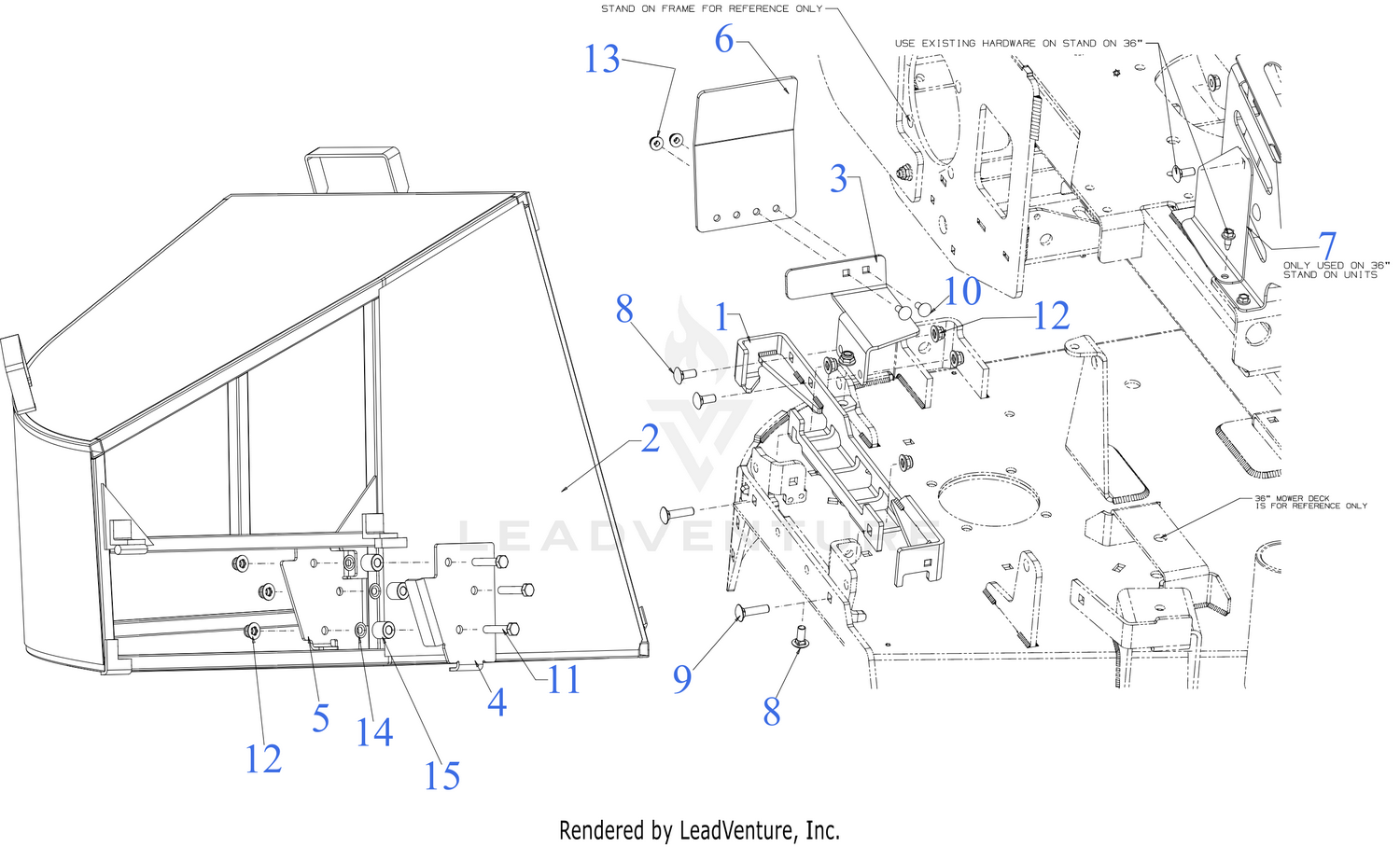

General Assembly
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 7 | 703-26860 | BRACKET Price: $11.96 |
| 8 | 710-0451 | CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 9 | 710-04821 | CARRIAGE BOLT 5/16-18 x 1.25 Price: $4.55 |
| 10 | 710-0703 | SCREW 1/4-20 x .75 GR5 Price: $3.66 |
| 11 | 710-0805A | SCREW 5/16-18 x 1.5 LG Price: $3.75 |
| 12 | 712-04063 | FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 13 | 712-04064 | FLANGE LOCK NUT Price: $3.64 |
| 14 | 726-0201 | PUSH NUT Price: $6.01 |
| 15 | 750-06201 | SPACER .34 x .75 x .63 LG Price: $3.66 |
