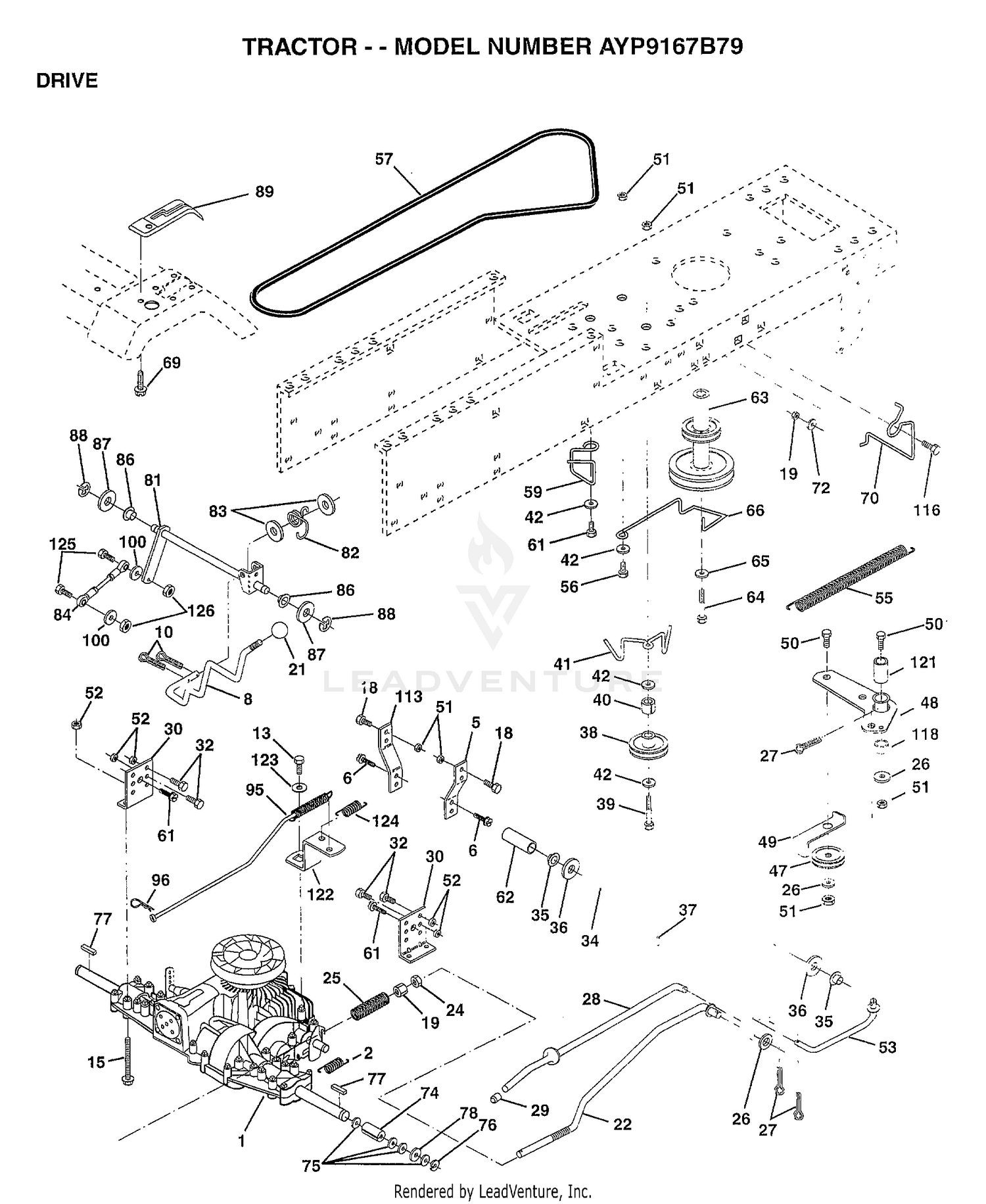

| Ref | Part Number | Description |
|---|
| 1 |
106-8059 |
KIT-ENGINE KUBOTA This part replaces 108-1361. Price: $9,147.51 |
| 1 |
205-026B |
TRANSAXLE, PEERLESS Price: Call Us |
| 2 |
104-3494 |
BELT-V Price: $29.84 |
| 2 |
146682 |
SPRING.BRAKE.RETU Price: Call Us |
| 3 |
104-1723 |
ADAPTER-FRONT DRIVE Price: $186.52 |
| 4 |
3274-106 |
SCREW-HSH Price: $5.77 |
| 5 |
33103-020 |
SCREW-HHF Price: $2.16 |
| 6 |
104-4246 |
FAN-ENGINE Price: $154.04 |
| 6 |
17490512 |
SCREW Price: Call Us |
| 7 |
108-2872 |
COLLAR-FAN This part replaces 104-4247. Price: $21.29 |
| 8 |
104-3497 |
PULLEY-FAN Price: $25.58 |
| 8 |
141002 |
ROD SHIFT FEND YT Price: Call Us |
| 9 |
105-2556-03 |
BRACE-ALTERNATOR, UPPER Price: $60.30 |
| 10 |
33004-00 |
NUT-HF Price: $0.34 |
| 10 |
76020416 |
PIN COTTER 1/8 Price: Call Us |
| 11 |
108-1363 |
MUFFLER-EXHAUST Price: $518.88 |
| 12 |
99-8343 |
GASKET-MUFFLER This part replaces 98-9611. Price: $14.99 |
| 13 |
112-0183 |
SWITCH-THERMOMETER This part replaces 108-8682. Price: $110.70 |
| 13 |
74550412 |
BOLT.1/4-28.W/PAT Price: Call Us |
| 15 |
74490544 |
BOLT.HX.FLG.5/16 Price: Call Us |
| 16 |
106-4381-03 |
SHAFT-TENSION, PTO Price: $290.36 |
| 17 |
3230-4 |
BOLT-CARR Price: $0.47 |
| 18 |
74780616 |
BOLT Price: Call Us |
| 18 |
92-8799 |
BEARING-FLANGE Price: $126.15 |
| 19 |
32149-1 |
NUT-KEPS Price: $5.59 |
| 19 |
73800600 |
NUT Price: Call Us |
| 20 |
32121-32 |
PIN-ROLL Price: $1.34 |
| 21 |
106933X |
KNOB T (1/2-HOLE) Price: Call Us |
| 21 |
117-0841 |
LH REAR ENGINE MOUNT ASM This part replaces 104-3417. Price: $329.16 |
| 22 |
130804 |
BRAKE ROD Price: Call Us |
| 22 |
43-0090 |
SCREW-HH Price: $8.05 |
| 23 |
48-9590 |
WASHER-LOCK This part replaces 42-9600. Price: $0.25 |
| 24 |
117-0831-03 |
MOUNT-ENGINE, LH FRONT This part replaces 104-1702-03. Price: $82.72 |
| 24 |
73350600 |
NUT Price: Call Us |
| 25 |
106888X |
SPRING ROD LT Price: Call Us |
| 25 |
3-4324 |
WASHER-FLAT Price: $1.22 |
| 26 |
19131316 |
WASHER Price: Call Us |
| 26 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 27 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 27 |
76020412 |
COTTER PIN Price: Call Us |
| 28 |
145204 |
ROD.BRAKE.PARK.LT Price: Call Us |
| 29 |
124236X |
CAP Price: Call Us |
| 30 |
130807 |
TRANSAXLE MTG BKT Price: Call Us |
| 32 |
74760512 |
BOLT Price: Call Us |
| 34 |
155071 |
SHAFT ASM-PEDAL F Price: Call Us |
| 35 |
120183X |
NYLON BEARING Price: Call Us |
| 36 |
19211616 |
WASHER LT Price: Call Us |
| 37 |
1572H |
SUB= 2882J Price: Call Us |
| 38 |
123674X |
PULLEY.IDLER.FLAT Price: Call Us |
| 39 |
74760644 |
BOLT Price: Call Us |
| 40 |
4470J |
SPACER T Price: Call Us |
| 41 |
154777 |
SUB= 165692 Price: Call Us |
| 42 |
19131312 |
WASHER Price: Call Us |
| 47 |
127783 |
SUB= 139245 Price: Call Us |
| 48 |
154604 |
BELLCRANK ASM Price: Call Us |
| 49 |
123205X |
RETAIN BELT Price: Call Us |
| 50 |
74760624 |
SUB= 74930624 Price: Call Us |
| 51 |
73680600 |
SUB= 73690600 Price: Call Us |
| 52 |
73680500 |
SUB= 73690500 Price: Call Us |
| 56 |
74760620 |
Bolt Fin Flex 3/8-16unc X 1-1/4 Price: Call Us |
| 59 |
140312 |
KEEPER BELT CNTSP Price: Call Us |
| 61 |
17490612 |
SCREW Price: Call Us |
| 62 |
8883R |
PEDAL COVER T Price: Call Us |
| 63 |
140186 |
PULLEY.ENGINE Price: Call Us |
| 64 |
71170764 |
BOLT Price: Call Us |
| 65 |
10040700 |
LOCKWASHER Price: Call Us |
| 66 |
154778 |
KEEPER-BELT Price: Call Us |
| 69 |
142432 |
SCREW HEXWSH H-L Price: Call Us |
| 70 |
134683 |
KEEPER BELT ENG Price: Call Us |
| 72 |
19132012 |
WASHER Price: Call Us |
| 75 |
121749X |
WASHER Price: Call Us |
| 76 |
12000001 |
E-RING LT Price: Call Us |
| 77 |
123583X |
SQUARE KEY Price: Call Us |
| 78 |
121748X |
WASHER Price: Call Us |
| 81 |
156969 |
SHAFT ASM CROSS Price: Call Us |
| 83 |
19171216 |
WASHER Price: Call Us |
| 86 |
71208 |
BUSHING Price: Call Us |
| 87 |
19212016 |
WASHER D Price: Call Us |
| 88 |
12000008 |
KLIP RING Price: Call Us |
| 89 |
151146 |
SUB= 164892 Price: Call Us |
| 95 |
156970 |
ROAD ASM BYPASS Price: Call Us |
| 96 |
4497H |
RETAINER M Price: Call Us |
| 100 |
19111216 |
WASHER M Price: Call Us |
| 116 |
72110610 |
BOLT RDHD 3/8-16 Price: Call Us |
| 118 |
154774 |
SPACER-BELLCRANK Price: Call Us |
| 121 |
154419 |
NYLINER-CLUTCHING Price: Call Us |
| 123 |
19091016 |
WASHER Price: Call Us |
| 124 |
156967 |
SPRING RETURN Price: Call Us |
| 125 |
74780516 |
SUB= 77394 Price: Call Us |
