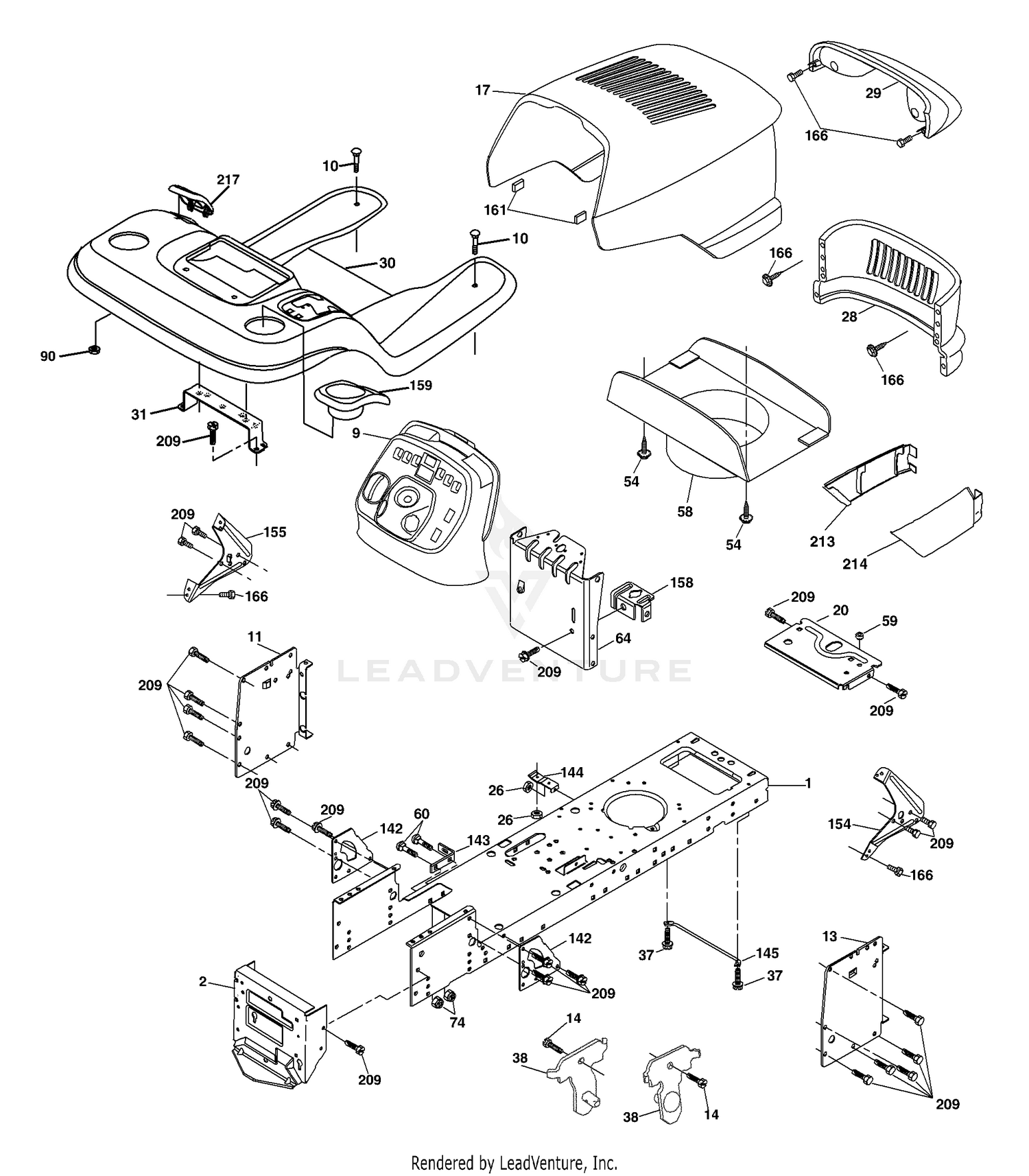

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 2 |
176554 |
Drawbar Price: Call Us |
| 3 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 05 |
99-9611 |
HEAD-CYLINDER Price: $1,828.25 |
| 07 |
99-9612 |
GASKET-HEAD, CYLINDER Price: $238.78 |
| 9 |
187934X428 |
Dash Price: Call Us |
| 10 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 11 |
104-7743 |
TUBE-BREATHER Price: $30.57 |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 13 |
178298 |
Panel Dash Rh Price: Call Us |
| 13 |
99-9614 |
SCREW-METRIC Price: $20.03 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 17 |
175260X505 |
Hood Price: Call Us |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 21 |
99-9052 |
CAP-FILL, OIL Price: $26.78 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 unc Price: Call Us |
| 28 |
175289X505 |
Grille Price: Call Us |
| 29 |
179761 |
Light Asm. Bar Price: Call Us |
| 30 |
188572X505 |
Fender Price: Call Us |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket, Asm. Pivot Mower Rear Price: Call Us |
| 49A |
99-9054 |
SCREW-HEX Price: $13.82 |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 54 |
99-9055 |
STUD-METRIC Price: $15.91 |
| 58 |
175351 |
Duct Hood Price: Call Us |
| 59 |
187495 |
Bushing Snap Price: Call Us |
| 60 |
72140606 |
Bolt Rd Hd Sqnk 3/8-16 unc x 3/4 Price: Call Us |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 unc Price: Call Us |
| 90 |
124346X |
Nut Self-Thd Wsh-Hd 1/4 Zinc Price: Call Us |
| 112A |
99-9057 |
STUD-METRIC Price: $9.99 |
| 112C |
99-9059 |
STUD-METRIC Price: $33.14 |
| 117B |
99-9058 |
STUD-METRIC Price: $27.41 |
| 127 |
99-9008 |
PLUG-WELCH Price: $8.70 |
| 127B |
99-9060 |
PLUG-WELCH Price: $6.17 |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
186689 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 149 |
99-9061 |
NUT-HEX, METRIC Price: $8.87 |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
179950X428 |
Cupholder Price: Call Us |
| 161 |
164655 |
Extrusion Bumper Price: Call Us |
| 166 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille LH Price: Call Us |
| 214 |
169847X428 |
Skirt Grille RH Price: Call Us |
| 355 |
99-9063 |
WASHER-SEAL Price: $28.21 |
| 615 |
99-9067 |
RETAINER Price: $36.03 |
| 830 |
99-9101 |
STUD-ARM, ROCKER Price: $39.61 |
| 1022 |
99-9073 |
GASKET-COVER, ROCKER Price: $46.78 |
| 1023 |
100-6402 |
COVER-ROCKER Price: $206.93 |
| 1036 |
99-9615 |
EMISSION LABEL KIT Price: $24.77 |
| 1077 |
99-9076 |
BRACKET-LIFTING Price: $12.35 |
| 1077A |
99-9077 |
BRACKET-LIFTING Price: $10.83 |
