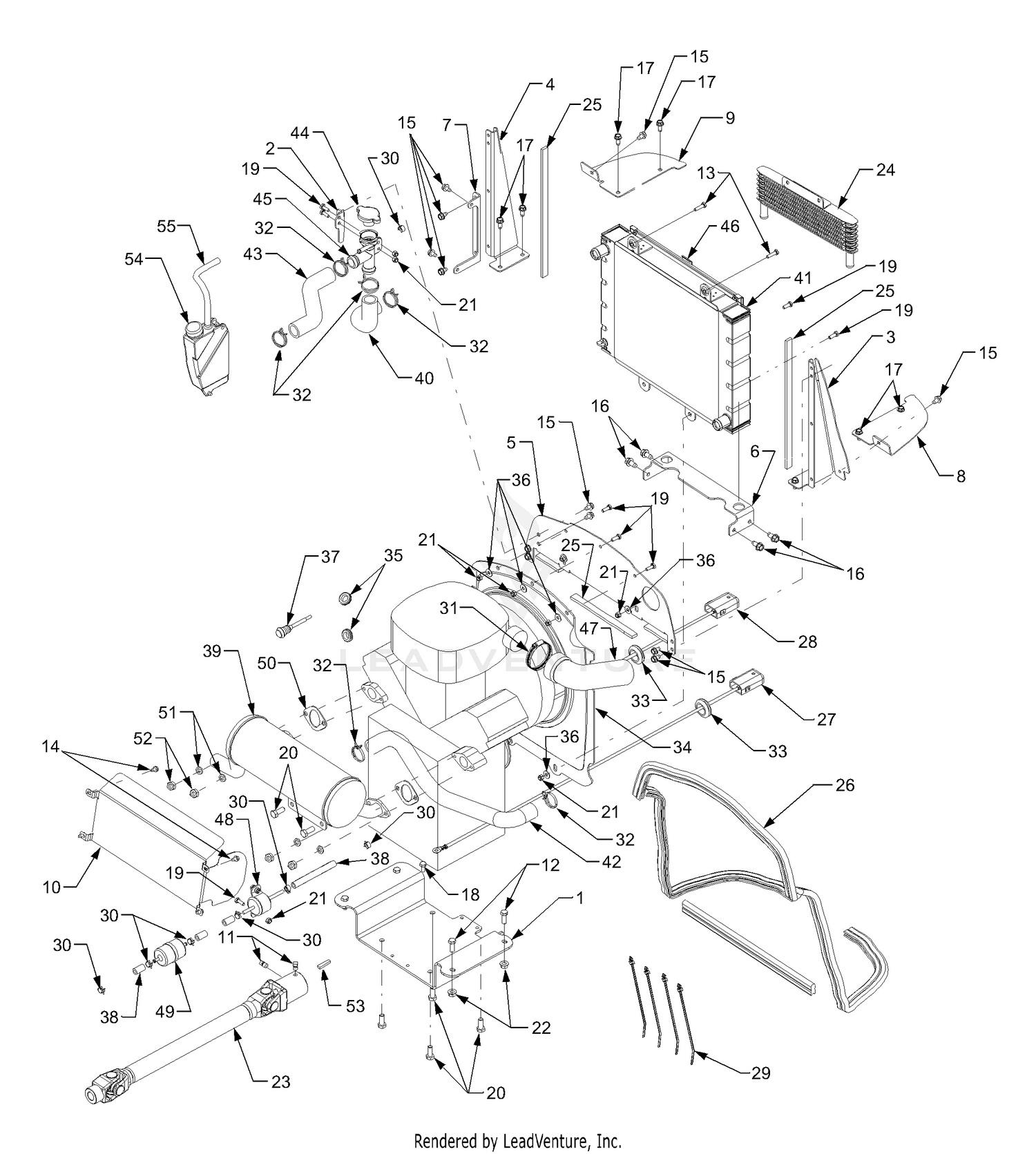

| Ref | Part Number | Description |
|---|
| 1 |
544256801 |
SCREW Price: $2.99 |
| 1 |
703-3521A |
ENGINE MOUNTING PLATE Not Available Price: |
| 1 |
95-7532 |
DISCONTINUED Price: Call Us |
| 2 |
578785301 |
PLATE CYLINDER Price: $8.99 |
| 2 |
703-3684 |
BRACKET-FILLER NECK Not Available Price: |
| 2 |
99-7594 |
SEAL-OIL Price: $5.99 |
| 3 |
506689001 |
BOLT TORX This part replaces 504114301. Price: $3.99 |
| 3 |
703-3688 |
RADIATOR BRACKET (RH) Not Available Price: |
| 3 |
777S30632 |
LABEL-ROTATING FAN Not Available Price: |
| 3 |
99-7535 |
PLUG Price: $8.15 |
| 4 |
577979001 |
CYLINDER COMP Price: $59.99 |
| 4 |
703-3689 |
RADIATOR BRACKET (LH) Not Available Price: |
| 4 |
777S30632 |
LABEL-ROTATING FAN Not Available Price: |
| 4 |
99-7536 |
WASHER-SEAL Price: $2.58 |
| 5 |
576398702 |
GASKET BASE Price: $4.99 |
| 5 |
703-3691 |
PLT-RADIATOR BAFFL Not Available Price: |
| 5 |
777S30631 |
LABEL-BATT EXPLODE Not Available Price: |
| 5 |
777S30633 |
LABEL-GAS EXPLODE Not Available Price: |
| 5 |
95-7528 |
GEAR-BEVEL, 27 TOOTH Price: $333.09 |
| 6 |
506618101 |
RING Price: $9.99 |
| 6 |
703-3692 |
BRACKET-RADIATOR MTG Not Available Price: |
| 6 |
99-7532 |
BEARING-ROLLER, TAPER Price: $45.81 |
| 7 |
577917401 |
PISTON Price: $39.99 |
| 7 |
703-3722 |
BRACKET-OVERFLOW MTG Not Available Price: |
| 7 |
95-7526 |
COVER-AXLE Price: $87.93 |
| 8 |
106-1072 |
O-RING This part replaces 99-7537. Price: $21.08 |
| 8 |
505040701 |
PIN Price: $5.99 |
| 8 |
703-3739 |
PLATE (RH) BAFFLE Not Available Price: |
| 9 |
505045201 |
RING Price: $2.99 |
| 9 |
703-3740 |
PLATE (LH) BAFFLE Not Available Price: |
| 9 |
99-7589 |
PLUG Price: $3.73 |
| 10 |
585248603 |
Mufflers This part replaces 585248601. Price: $59.99 |
| 10 |
703-4063B |
MUFFLER SHIELD Not Available This part replaces 703-4063. Price: |
| 10 |
99-7590 |
WASHER-SEAL Price: $2.94 |
| 11 |
578408101 |
GASKET MUFFLER Price: $8.99 |
| 11 |
710-0357 |
SCREW-SQ HD SET 3/8-16 x .50 CUP Not Available Price: |
| 12 |
506689001 |
BOLT TORX This part replaces 504114301. Price: $3.99 |
| 12 |
710-0514 |
Screw, Hex Cap, 3/8-16 x 1.0 GR5 Price: $3.78 |
| 13 |
710-0597 |
SCREW 1/4-20 X1.00 GR5 Price: $3.66 |
| 14 |
710-0599 |
Screw, Hex Wash Hd Tapp 1/4-20 x .5 Price: $3.86 |
| 15 |
710-0607 |
Screw, Hex Wash Hd Tapp 5/16-18 x .5 Price: $6.06 |
| 16 |
710-0623 |
Screw, Hex Wash Hd Tapp 3/8-16 x .75 Price: $3.93 |
| 17 |
710-1260A |
Screw, Hex Wash Hd Tapp 5/16-18 x .75 Price: $3.34 |
| 18 |
710-1376 |
Screw, Hex Cap, M8-20 x 16 Price: $6.06 |
| 19 |
710-3015 |
Screw, Hex Cap, 1/4-20 x .75 GR5 Price: $3.65 |
| 20 |
710-3208 |
BOLT M10-1.5X25MM GR8.8 Not Available Price: |
| 21 |
712-0324 |
Nut, Hex Nylon Insert Lock 1/4-20 GR8 Price: $3.38 |
| 22 |
912-0431 |
Nut, Hex Flange Lock, 3/8-16 This part replaces 7120431. Price: $4.29 |
| 23 |
717-3498 |
DRIVE SHAFT ASSEMBLY Not Available Price: |
| 24 |
918-3132 |
OIL COOLER Not Available This part replaces 718-3132. Price: |
| 25 |
722-3022A-12 |
FOAM TAPE .625 WIDE x .25 THK BULK This part replaces 722-3022. Price: $16.02 |
| 26 |
723-3061 |
Seal, Heat Baffle 96in. Price: $1.95 |
| 27 |
725-3282 |
NEGATIVE BATTERY CABLE Not Available Price: |
| 28 |
725-3289 |
POITIVE BATTERY CABLE Not Available Price: |
| 29 |
926-0154 |
Tie, Pushmount This part replaces 726-0154. Price: $5.50 |
| 30 |
726-0205 |
Clamp, Hose Price: $3.71 |
| 31 |
726-0476 |
HOSE CLAMP 2-3" Price: $10.68 |
| 32 |
726-0480 |
HOSE CLAMP Not Available Price: |
| 33 |
731-04018 |
GROMMET Not Available Price: |
| 34 |
931-3364 |
FAN SHROUD Not Available This part replaces 731-3364. Price: |
| 35 |
735-0226 |
Grommet Price: $9.09 |
| 36 |
736-0173 |
Washer, Flat, .28 x .74 x .063 Price: $3.76 |
| 37 |
746-04015 |
Cable, Choke Control Not Available Price: |
| 38 |
751-3130 |
FUEL LINE (BULK) Not Available Price: |
| 39 |
751-3166 |
EXHAUST MUFFLER Not Available Price: |
| 40 |
751-3177 |
UPPER RADIATOR HOSE Not Available Price: |
| 41 |
751-3185 |
RADIATOR ASSEMBLY-2" CORE Not Available Price: |
| 42 |
751-3187 |
LOWER RADIATOR HOSE Not Available Price: |
| 43 |
751-3189 |
FILLER NECK HOSE Not Available Price: |
| 44 |
759-04129 |
Radiator Cap Not Available This part replaces 751-3192. Price: |
| 45 |
751-3190 |
NECK-REMOTE FILLER Not Available Price: |
| 46 |
751-3193 |
RADIATOR SCREEN Not Available Price: |
| 47 |
751-3203 |
AIR CLEANER INLET HOSE Not Available Price: |
| 48 |
KM-49040-2065 |
Pump, Fuel Price: $192.81 |
| 49 |
KM-49019-0032 |
FUEL FILTER This part replaces KM-49019-1055. Price: $16.00 |
| 50 |
KM-11060-2467 |
GASKET-EXHAUST MUFFLER Not Available Price: |
| 51 |
KM-461DA0800 |
Spring Washer, 8mm This part replaces KM-461F0800. Price: $1.99 |
| 52 |
KM-317R0800 |
Nut, Hex Not Available Price: |
| 53 |
KM-92038-2101 |
KEY Not Available Price: |
| 54 |
KM-43078-2055 |
Bottle, Over Flow Price: $65.92 |
| 55 |
KM-39062-2086 |
TUBE-OVERFLOW Not Available Price: |
