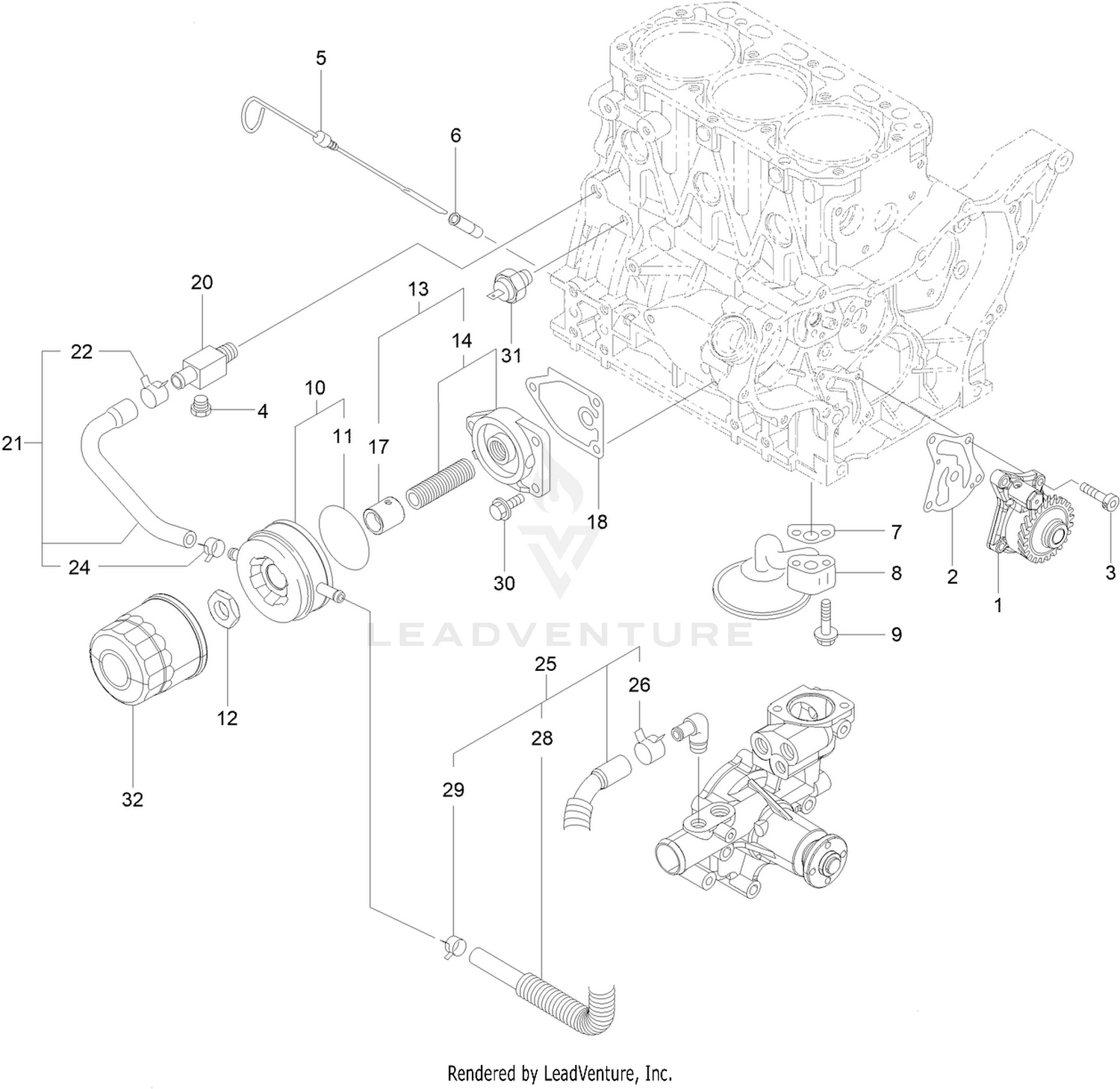

Lubrication and Oil System Assembly
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 127-4753 | OIL PUMP ASM Price: $208.64 |
| 2 | 127-3004 | GASKET Price: $2.73 |
| 3 | 125-7232 | BOLT Price: $3.28 |
| 4 | 125-7171 | PLUG-DRAIN Price: $23.08 |
| 5 | 125-6987 | DIPSTICK Price: $68.96 |
| 6 | 125-6954 | GUIDE-DIPSTICK Price: $9.80 |
| 7 | 125-7022 | GASKET Price: $7.07 |
| 8 | 127-3803 | PIPE ASM Price: $145.53 |
| 9 | 125-7217 | BOLT Price: $4.58 |
| 10 | 135-4018 | OIL COOLER ASM Price: $1,288.99 |
| 11 | 135-4019 | PACKING-OIL COOLER Price: $13.99 |
| 12 | 135-4020 | NUT Price: $8.99 |
| 13 | 135-4021 | LO FILTER BRACKET ASM Price: $111.99 |
| 14 | 125-6989 | BRACKET ASM Price: $67.51 |
| 17 | 135-4022 | COLLAR-COOLER, OIL Price: $12.99 |
| 18 | 125-7024 | GASKET Price: $3.16 |
| 20 | 125-6990 | JOINT Price: $64.80 |
| 21 | 125-7078 | PIPE ASM Price: $40.64 |
| 22 | 125-7162 | CLIP Price: $6.55 |
| 24 | 125-7191 | CLAMP-HOSE Price: $15.78 |
| 25 | 127-3804 | PIPE ASM Price: $31.64 |
| 26 | 125-7162 | CLIP Price: $6.55 |
| 28 | 127-3805 | TUBE Price: $15.40 |
| 29 | 125-7191 | CLAMP-HOSE Price: $15.78 |
| 30 | 125-7595 | BOLT Price: $2.39 |
| 31 | 125-6918 | SWITCH-OIL Price: $25.77 |
