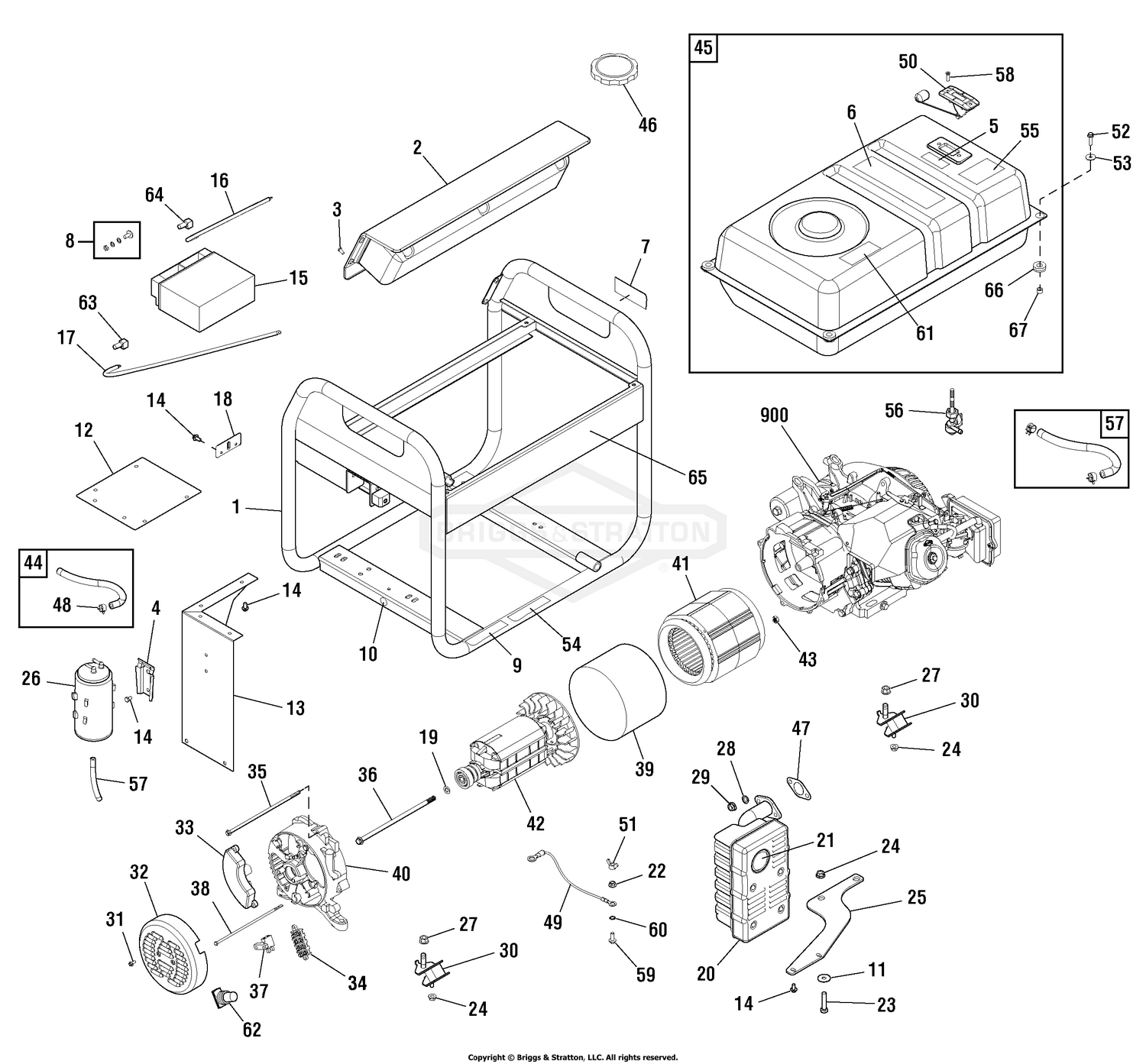

Main Unit (80013184)
Parts (61)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 705784 | CRADLE Price: Call Us |
| 2 | 706955 | PANEL-CONTROL Price: $499.99 |
| 3 | 703804 | SCREW Price: $3.63 |
| 4 | 318884GS | BRACKET Price: $11.44 |
| 5 | 703264 | DECAL Price: $15.53 |
| 6 | 319064GS | DECAL Price: $6.00 |
| 7 | 704142 | DECAL Price: $11.12 |
| 8 | 315546GS | KIT-HRDWR, BATTERY TERMINAL Price: $8.05 |
| 9 | 705545 | DECAL Price: $9.74 |
| 10 | 704331 | DECAL Price: $8.79 |
| 11 | B2495GS | WASHER Price: $2.49 |
| 12 | 705489 | HEATSHIELD Price: $45.49 |
| 13 | 705503 | HEATSHIELD Price: $79.99 |
| 15 | 316345GS | BATTERY Price: $229.66 |
| 16 | 312014GS | CABLE-BTTRY, RED Price: $18.93 |
| 17 | 312026GS | CABLE-BTTRY, BLACK Price: $17.32 |
| 18 | 311983GS | PLATE-BATTERY Price: $8.15 |
| 19 | 207826GS | WASHER Price: $2.96 |
| 20 | 192569GS | MUFFLER Price: $148.05 |
| 21 | 83083GS | SCREEN Price: $8.49 |
| 22 | 52857GS | NUT-M6 FLANGE Price: $3.06 |
| 24 | 67989GS | NUT Price: $2.77 |
| 25 | 319457GS | SUPPORT-MUFFLER Price: $27.81 |
| 26 | 209044GS | CARB CANISTER Price: $51.99 |
| 27 | 52859GS | NUT Price: $1.95 |
| 30 | 319451GS | MOUNT-VIBRATION Price: $10.58 |
| 31 | 207824GS | SCREW Price: $3.73 |
| 32 | 209428GS | END COVER Price: $25.13 |
| 33 | 207840GS | VOLTAGE REGULATOR Price: $40.40 |
| 34 | 316945GS | TERMINAL BLOCK Price: $7.37 |
| 35 | 704237 | BOLT Price: $5.79 |
| 36 | 705786 | BOLT Price: $9.49 |
| 37 | 207827GS | BRUSH ASSY Price: $9.35 |
| 38 | 705787 | BOLT Price: $6.09 |
| 39 | 705788 | BAND-STATOR Price: $9.89 |
| 40 | 708704 | CARRIER-BEARING This part replaces 207838GS. Price: $90.94 |
| 41 | 705789 | STATOR Price: $499.99 |
| 42 | 705790 | ROTOR Price: $349.99 |
| 43 | 207878GS | NUT Price: $5.79 |
| 44 | 315017GS | HOSE-VAPOR Price: $26.64 |
| 45 | 704184 | TANK-FUEL Price: $368.60 |
| 46 | 319587GS | CAP-FUEL Price: $18.25 |
| 47 | 797770 | GASKET, Exhaust This part replaces 813085GS. Price: $5.72 |
| 48 | 314955GS | CLAMP Price: $4.19 |
| 49 | 312040GS | WIRE Price: $5.54 |
| 50 | 704183 | GAUGE-FUEL Price: $15.07 |
| 51 | 87680GS | NUT Price: $6.57 |
| 52 | 703805 | BOLT Price: $8.89 |
| 53 | 312005GS | WASHER Price: $3.09 |
| 54 | 319066GS | DECAL Price: $9.79 |
| 55 | 202997GS | DECAL Price: $12.80 |
| 56 | 209417GS | VALVE-FUEL Price: $7.75 |
| 57 | 791745 | LINE, Fuel Price: $8.97 |
| 58 | 314440GS | SCREW Price: $3.61 |
| 61 | 319065GS | DECAL Price: $5.78 |
| 62 | 207879GS | BOOT Price: $6.22 |
| 63 | 319821GS | CAP-WIRE, BLACK Price: $2.99 |
| 64 | 319405GS | CAP-WIRE, RED Price: $2.99 |
| 65 | 705500 | DECAL Price: $57.99 |
| 66 | 189134GS | GROMMET Price: $3.73 |
| 67 | 189137GS | SPACER Price: $3.59 |
