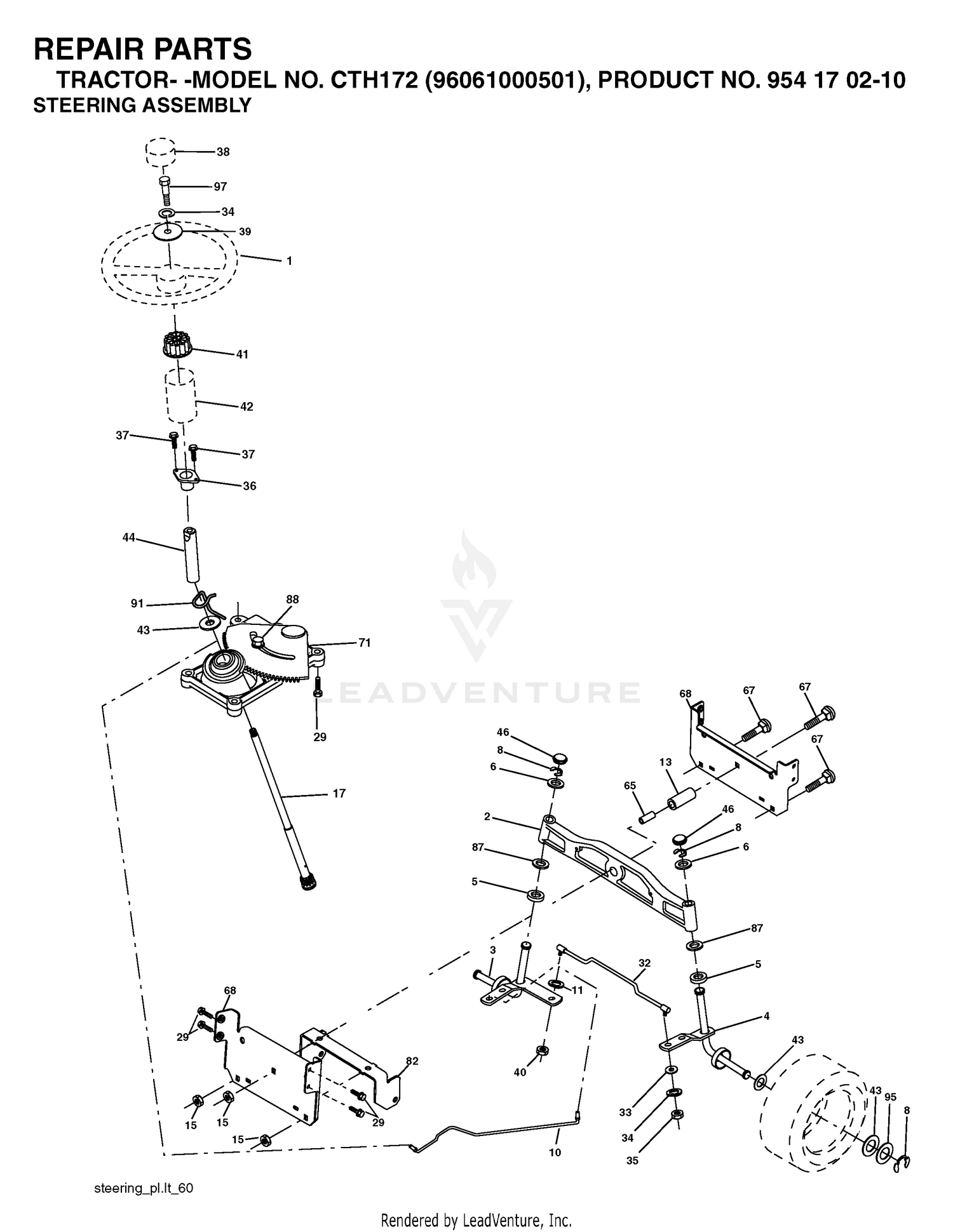

| Ref | Part Number | Description |
|---|
| 1 |
32104-32 |
SCREW-HWH Price: $1.99 |
| 1 |
532186094 |
STEERING WHEEL.PREM.2.BLK This part replaces 532193651. Price: $169.99 |
| 2 |
532193542 |
AXLE.ASM.LT.CAST.LGHTWGHT This part replaces 532184706. Price: $119.99 |
| 2 |
74-9110 |
PAD-PEDAL, REVERSE Price: $13.49 |
| 3 |
120-8095 |
PEDAL Price: Call Us |
| 3 |
596873901 |
KIT SPINDLE ASM.PNT.LH.15 This part replaces 532169840. Price: $14.99 |
| 4 |
32121-45 |
PIN-SPRING Price: $0.27 |
| 4 |
596873801 |
KIT SPINDLE ASM.PNT.RH.15" This part replaces 532169839. Price: $27.99 |
| 5 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 5 |
74-9100 |
PAD-PEDAL, FORWARD Price: $27.08 |
| 6 |
117-9507 |
PEDAL-ACCELERATOR Price: $12.86 |
| 6 |
532121748 |
WASHER Price: $3.99 |
| 7 |
323-29 |
SCREW-HH Price: $0.42 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
3220-3 |
NUT-HJ Price: $0.28 |
| 10 |
2411-36 |
BEARING-END, ROD Price: $32.13 |
| 10 |
532175121 |
DRAGLINK.15".TIRES.2001 Price: $59.99 |
| 11 |
32121-6 |
PIN-ROLL, SLOTTED Price: $0.28 |
| 11 |
596238701 |
Washers This part replaces 810040600. Price: $3.99 |
| 12 |
322-2 |
SCREW-HH Price: $0.69 |
| 13 |
256-236 |
BEARING-MOUNT, FLANGE Price: $27.99 |
| 13 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 14 |
32128-20 |
NUT-HF Price: $0.99 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 16 |
114-5608 |
SPACER-STANDOFF Price: $15.74 |
| 17 |
532190753 |
SHAFT STEERING SPLINE Price: $37.99 |
| 18 |
120-8088-0P |
HUB-TRACTION PEDAL PIVOT This part replaces 120-8088-03. Price: $69.27 |
| 19 |
115-4383 |
SHAFT-SPRING Price: $38.84 |
| 21 |
32121-11 |
PIN-ROLL Price: $0.47 |
| 22 |
92-7608-03 |
BRACKET-SPRING Price: $16.86 |
| 23 |
92-7610 |
RETAINER-SPRING Price: $26.52 |
| 24 |
84-9100 |
SPRING Price: $11.99 |
| 25 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 29 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 32 |
117-2718 |
DECAL-ARRESTER, SPARK Price: $5.95 |
| 32 |
532170162 |
ROD.ASM.TIE.BALL.JOINT.NOVAN Price: $79.99 |
| 33 |
120-8038 |
HUB ASM Price: $121.12 |
| 33 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 819111216. Price: $2.99 |
| 34 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 35 |
873540500 |
NUT, CROWNLOCK Price: $3.99 |
| 36 |
114-5609 |
SENSOR-POSITION Price: $371.51 |
| 36 |
532155106 |
KIT.BUSHING.STEERING This part replaces 532155099. Price: $8.99 |
| 37 |
114-5595 |
PLATE-CAPTURE Price: $5.99 |
| 37 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE Price: $3.99 |
| 38 |
32105-21 |
SCREW-HH Price: $1.09 |
| 38 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 39 |
596040001 |
Washers This part replaces 819113812. Price: $6.99 |
| 40 |
120-8091 |
SHAFT-PIVOT, TRACTION Price: $33.82 |
| 40 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 41 |
32121-69 |
PIN-SPRING Price: $1.79 |
| 41 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 42 |
532145054 |
STEERING BOOT, GRAY This part replaces 532169634. Price: $11.99 |
| 43 |
120-8089 |
PLATE-COVER, SENSOR Price: $3.38 |
| 43 |
532121749 |
WASHER Price: $2.99 |
| 44 |
121-3099 |
PLUG-PANEL, PLASTIC Price: $1.87 |
| 44 |
532190752 |
SHAFT.EXTEN.STRG.SPLINE Price: $11.99 |
| 45 |
32121-78 |
PIN-ROLL Price: $3.09 |
| 46 |
3290-321 |
SCREW-HWH Price: $3.99 |
| 46 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 65 |
532414736 |
SPACER.BRACE.AXLE This part replaces 532160367. Price: $5.99 |
| 67 |
872110618 |
BOLT CARRIAGE Price: $4.99 |
| 68 |
531167401 |
SERVICE KIT BRACE.AXLE.1 This part replaces 532169827. Price: $19.99 |
| 71 |
531167801 |
SERVICE KIT STEERING ASM This part replaces 532175146. Price: $139.99 |
| 82 |
531170201 |
SERVICE.KIT BRACKET This part replaces 532169835. Price: $19.99 |
| 87 |
532173966 |
WASHER, FLAT .781 X 1 1/2" Price: $4.99 |
| 88 |
532175118 |
BOLT, SHOULDER 7/16-20 Price: $4.99 |
| 95 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 97 |
874780564 |
BOLT Price: $4.99 |
