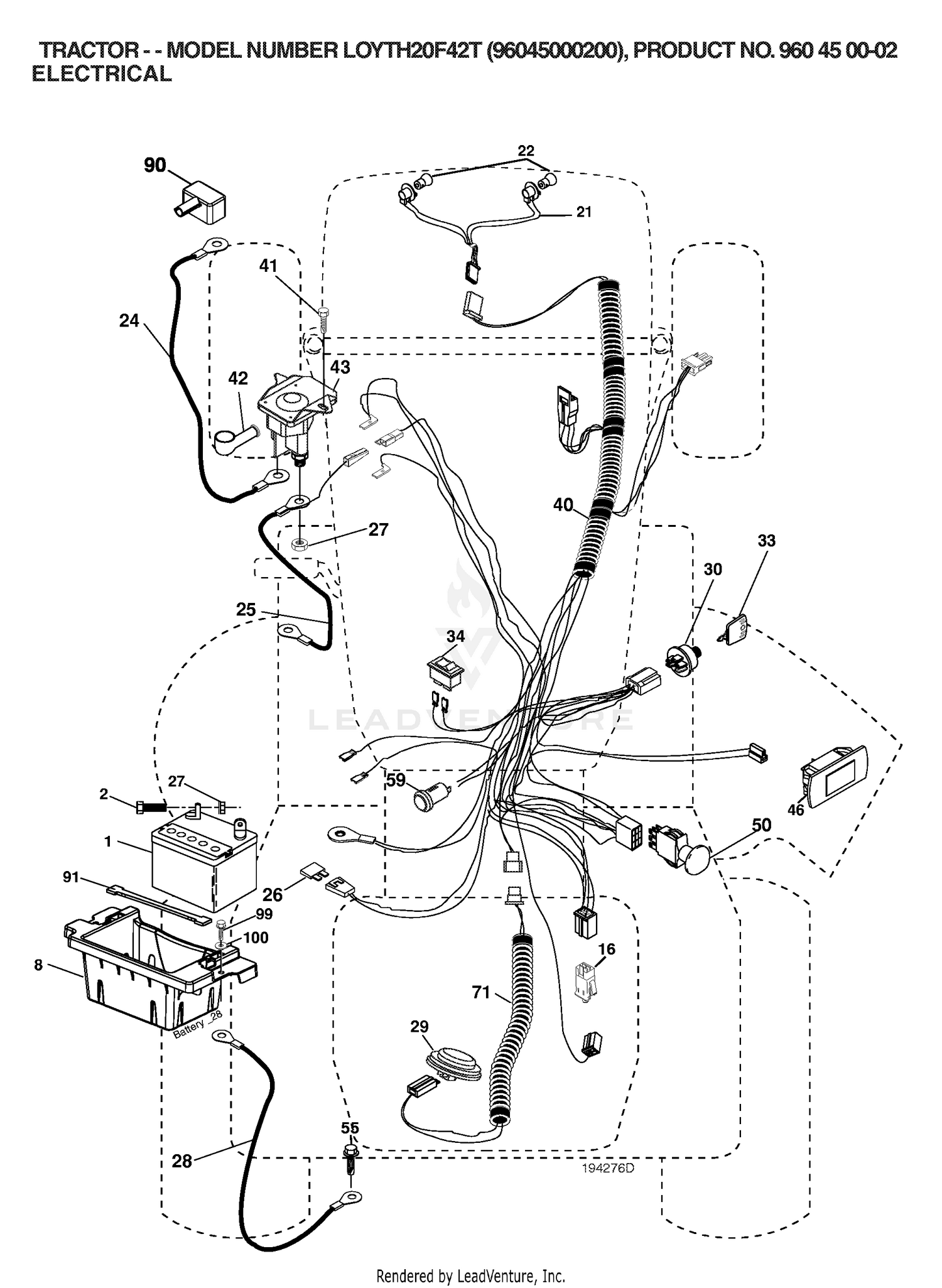

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 5 |
95-8960-0P |
BRACKET-NEUTRAL This part replaces 95-8960-03. Price: $47.94 |
| 6 |
32128-43 |
NUT-FLANGE Price: $0.94 |
| 7 |
3234-1 |
SCREW-HHF Price: $1.62 |
| 8 |
140-6168 |
NEUTRAL ARM ASM This part replaces 104-0422. Price: $115.71 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 10 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 11 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 12 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 13 |
100-4817 |
SPACER-BEARING Price: $4.03 |
| 14 |
76-8640 |
STUD-TRACTION Price: $23.60 |
| 16 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 18 |
94-1369 |
SPRING-EXTENSION Price: $12.72 |
| 19 |
3210-6 |
SCREW-HH Price: $1.76 |
| 20 |
88-7200 |
WASHER-FLAT Price: $2.51 |
| 21 |
120-5566 |
HUB Price: $49.38 |
| 21 |
532183759 |
HARNESS ASSY LIGHT Price: $24.99 |
| 22 |
32128-44 |
NUT Price: $2.69 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 24 |
104-0464-03 |
BRACKET-SUPPORT, CABLE Price: $35.63 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
251-259 |
BEARING-BALL Price: $13.67 |
| 25 |
532198893 |
CABLE.START.RED.17.5". Price: $11.99 |
| 26 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
3274-104 |
SCREW-HSBH Price: $0.54 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 30 |
99-3556 |
HOSE Price: $12.50 |
| 31 |
99-3594-0P |
LEVER-PUMP This part replaces 99-3594-03. Price: $53.70 |
| 32 |
321-8 |
SCREW-HH Price: $0.34 |
| 33 |
2844 |
WASHER Price: $2.69 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 34 |
95-3857 |
SCREW-HSBH Price: $4.09 |
| 35 |
63-9750 |
MOUNT Price: $18.92 |
| 36 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 37 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 40 |
532401104 |
HARNESS.IGN.DASH.HUQ/P Price: $59.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 46 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532198138. Price: $19.99 |
| 50 |
582107604 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532196112. Price: $29.99 |
| 55 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY This part replaces 532180449. Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
