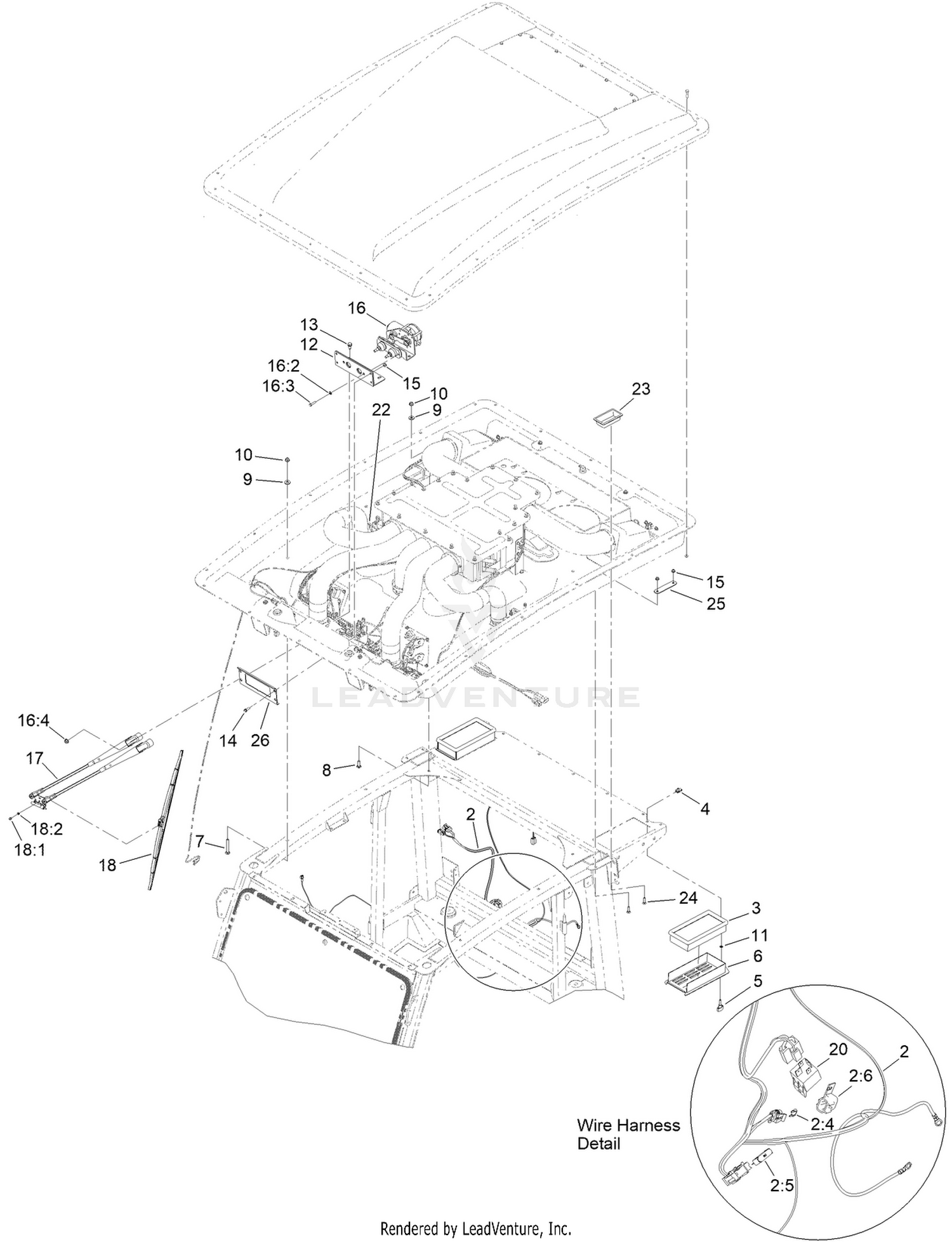

Windshield Wiper and Air Filter Assembly
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 122-2238 | HARNESS-WIRE, POWER Price: $213.75 |
| 3 | 121-8457 | FILTER-AIR Price: $34.12 |
| 4 | 107069 | CLIP Price: $1.79 |
| 5 | 126-5846 | KNOB-T Price: $9.75 |
| 6 | 125-9825-03 | COVER-AIR, FRESH Price: $80.77 |
| 7 | 3230-9 | SCREW-CARR Price: $0.68 |
| 8 | 3230-22 | SCREW-CARR Price: $1.99 |
| 9 | 3256-3 | WASHER-FLAT Price: $0.49 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 11 | 32115-15 | PUSHNUT-RETAINER, BOLT Price: $0.99 |
| 12 | 130-5871 | BRACKET-WIPER Price: $42.69 |
| 13 | 32144-11 | SCREW-THD ROLL, HWH Price: $6.99 |
| 14 | 32105-15 | SCREW-HWH Price: $1.79 |
| 15 | 104-7201 | NUT-HF Price: $0.69 |
| 16 | 125-7452 | WIPER MOTOR ASM Price: $435.07 |
| 17 | 125-7453 | ARM-WIPER Price: $121.52 |
| 18 | 125-7454 | BLADE-WIPER Price: $49.61 |
| 20 | 99-7435 | RELAY Price: $32.43 |
| 22 | 3290-378 | TIE-CABLE Price: $0.79 |
| 23 | 130-5661 | TUBE-SLEEVE Price: $37.14 |
| 24 | 3229-30 | SCREW-CARR Price: $1.39 |
| 25 | 130-5854 | BRACE-SEAL Price: $4.07 |
