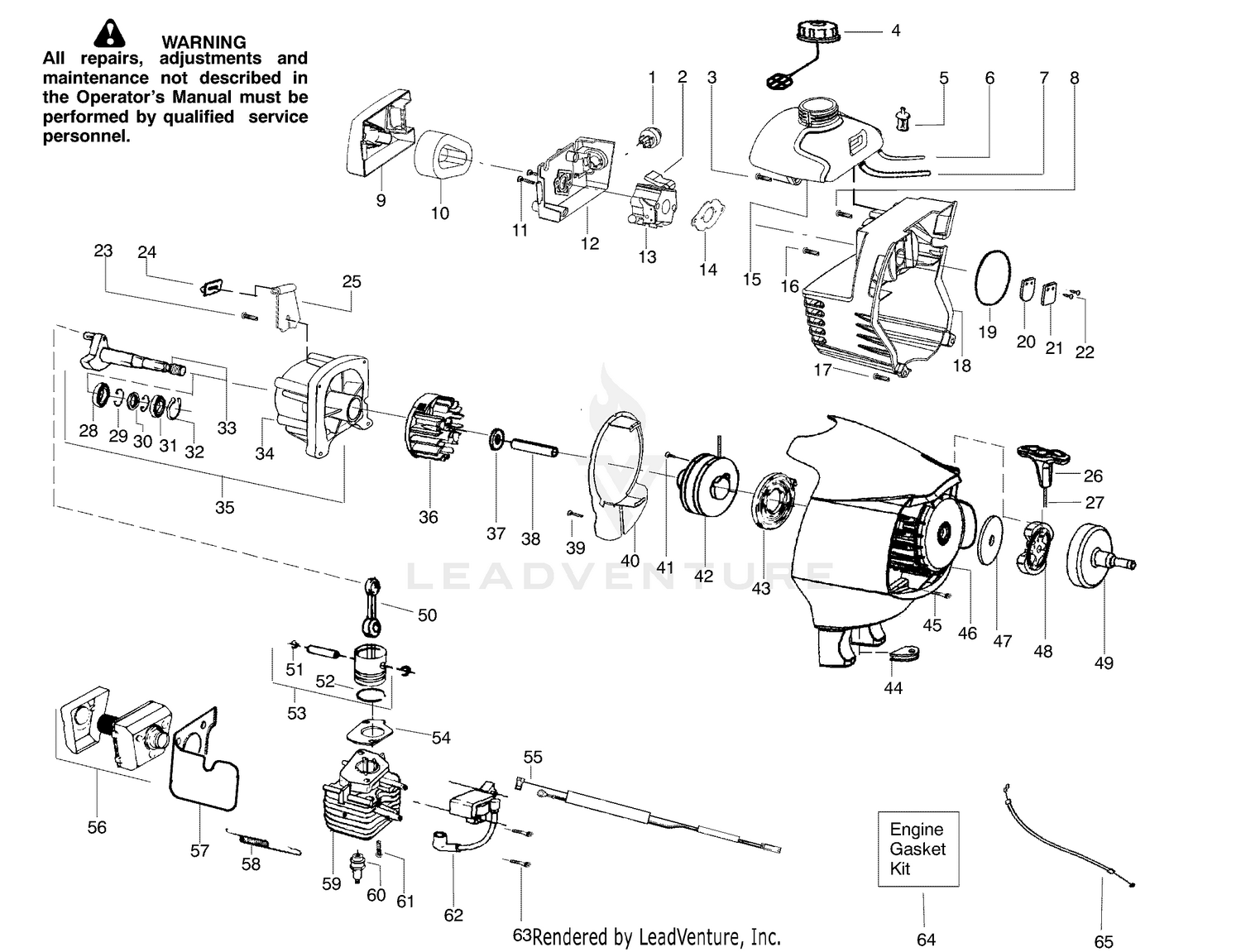

Engine Assembly
Parts (85)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530047721 | Bulb-Purge Price: $3.99 |
| 1 | 92-9727 | HOC CAP ASM Price: $78.05 |
| 2 | 530071717 | Kit-Choke Lever Price: $7.99 |
| 2 | 69-1510 | SPACER Price: $4.48 |
| 3 | 530015843 | Screw-tank Price: $1.99 |
| 3 | 69-6860 | WASHER-THRUST Price: $3.15 |
| 4 | 120-6587 | RH CASTOR ARM ASM Price: $578.98 |
| 4 | 530057973 | Assy - Fuel Cap w/retainer This part replaces 530049386. Price: $7.99 |
| 5 | 120-6588 | LH CASTOR ARM ASM Price: $519.70 |
| 5 | 530095646 | Assy-Fuel pickup Price: $2.99 |
| 6 | 140-6306-01 | CASTER FORK ASM This part replaces 104-0762-01. Price: $241.08 |
| 6 | 530069247 | Kit-Fuel Line This part replaces 530071404. Price: $3.99 |
| 7 | 3296-53 | NUT-LOCK, NI Price: $1.47 |
| 7 | 530069216 | Kit-Fuel/Purge line Price: $3.99 |
| 8 | 530015775 | Screw Price: $1.99 |
| 8 | 93-9938 | WHEEL ASM Price: $144.61 |
| 9 | 327-24 | SCREW-HH Price: $7.99 |
| 9 | 530054935 | Cover-Air box Price: $1.99 |
| 10 | 3234-41 | SCREW-HHF Price: $0.31 |
| 10 | 530054946 | Filter-Air Price: $1.99 |
| 11 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 11 | 530015849 | Screw-Carb. Price: $1.99 |
| 12 | 121-6415-01 | CASTOR FORK ASM Price: $134.38 |
| 12 | 530054934 | Box-Air Price: $3.99 |
| 13 | 325-19 | SCREW-HH Price: $2.57 |
| 14 | 530071401 | Gasket-Carb. (kit) Price: $3.99 |
| 14 | 99-1291 | SPACER Price: $17.18 |
| 15 | 545075305 | Assy-Fuel Tank Price: $11.99 |
| 15 | 63-1770 | SPANNER Price: $17.94 |
| 16 | 530015771 | Screw-Crankcase Price: $1.99 |
| 16 | 63-8400 | CASTER WHEEL ASM Price: $75.13 |
| 17 | 32128-23 | NUT-HF Price: $1.51 |
| 17 | 530015952 | Screw-Shroud Price: $1.99 |
| 18 | 117-0806 | LH LIFT ARM ASM Price: $900.19 |
| 18 | 530058797 | Shroud Price: $14.99 |
| 19 | 117-0800 | RH LIFT ARM ASM Price: $900.19 |
| 19 | 530071401 | O-ring-Shroud (kit) Price: $3.99 |
| 20 | 3272-24 | PIN-COTTER Price: $0.54 |
| 20 | 530027593 | Valve-Reed Price: $1.99 |
| 21 | 530054596 | Stop-Reed Price: $1.99 |
| 21 | 98-2330 | PIVOT PIN ASM Price: $62.61 |
| 22 | 107-7915 | WASHER-THRUST Price: $1.97 |
| 22 | 545227101 | SCREW 6-19X.437 This part replaces 530016064. Price: $1.99 |
| 23 | 107-7904 | PIN-CLEVIS Price: $36.06 |
| 23 | 530015875 | Screw-Retainer Price: $1.99 |
| 24 | 3290-256 | PIN-HAIR Price: $1.01 |
| 24 | 530055492 | Isolator-Tank Price: $1.99 |
| 25 | 530054941 | Ret.-Tank Price: $1.99 |
| 25 | 99-1283 | SPACER Price: $31.94 |
| 26 | 121-6418-01 | DECK STEP ASM Price: $103.97 |
| 26 | 530054834 | Handle-Starter Price: $1.99 |
| 27 | 121-6411-01 | BRACKET-MOUNTING, STEP Price: $26.20 |
| 27 | 530071325 | Kit-Rope Price: $3.99 |
| 28 | 530032103 | Bearing-Inner Price: Call Us |
| 29 | 530015787 | Retainer Price: $1.99 |
| 30 | 530019158 | Seal Price: $2.99 |
| 31 | 530032102 | Bearing-Outer Price: $8.99 |
| 32 | 530015789 | Ret.-Crankshaft Price: $2.99 |
| 33 | 530028807 | Assy-Crankshaft Price: $19.99 |
| 36 | 530055524 | Assy-Flywheel Price: $22.99 |
| 37 | 530016030 | Washer Price: $1.99 |
| 38 | 530055620 | Spacer Price: $4.99 |
| 39 | 530015775 | Screw-Baffle Price: $1.99 |
| 40 | 545115201 | Plate-Baffle This part replaces 530054939. Price: $2.99 |
| 41 | 530016391 | Screw-Rope Price: $1.99 |
| 43 | 545008011 | KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 44 | 530019182 | Grommet Price: $1.99 |
| 45 | 530016386 | SCREW This part replaces 530015810. Price: $5.99 |
| 46 | 530055248 | Assy.-Fan Housing Price: $17.99 |
| 47 | 530094189 | Washer-Clutch Price: $2.99 |
| 48 | 530055122 | Assy-Clutch Price: $8.99 |
| 49 | 530028799 | Drum-Clutch Price: $4.48 |
| 50 | 530010960 | Assy-Conn. Rod Price: $14.99 |
| 51 | 530015162 | Ret.-Piston pin Price: $1.99 |
| 52 | 530012595 | Ring-Piston Price: $4.99 |
| 54 | 530071401 | Gasket-Cylinder (kit) Price: $3.99 |
| 55 | 530058846 | Assy-Leadwire Price: $4.99 |
| 56 | 530069310 | Kit-Muffler Price: $9.99 |
| 57 | 530058957 | Shield Price: $3.99 |
| 58 | 530036409 | Spring-Muffler Price: $1.99 |
| 59 | 530012490 | Cylinder Price: $27.99 |
| 60 | 952030249 | Plug-Spark (RCJ-6Y) Price: $3.99 |
| 61 | 530001624 | Bolt-Cyl. 1/4-20" Price: $1.99 |
| 62 | 530039218 | Module-Ignition Price: $32.99 |
| 63 | 530016357 | Screw-Module Price: $1.99 |
