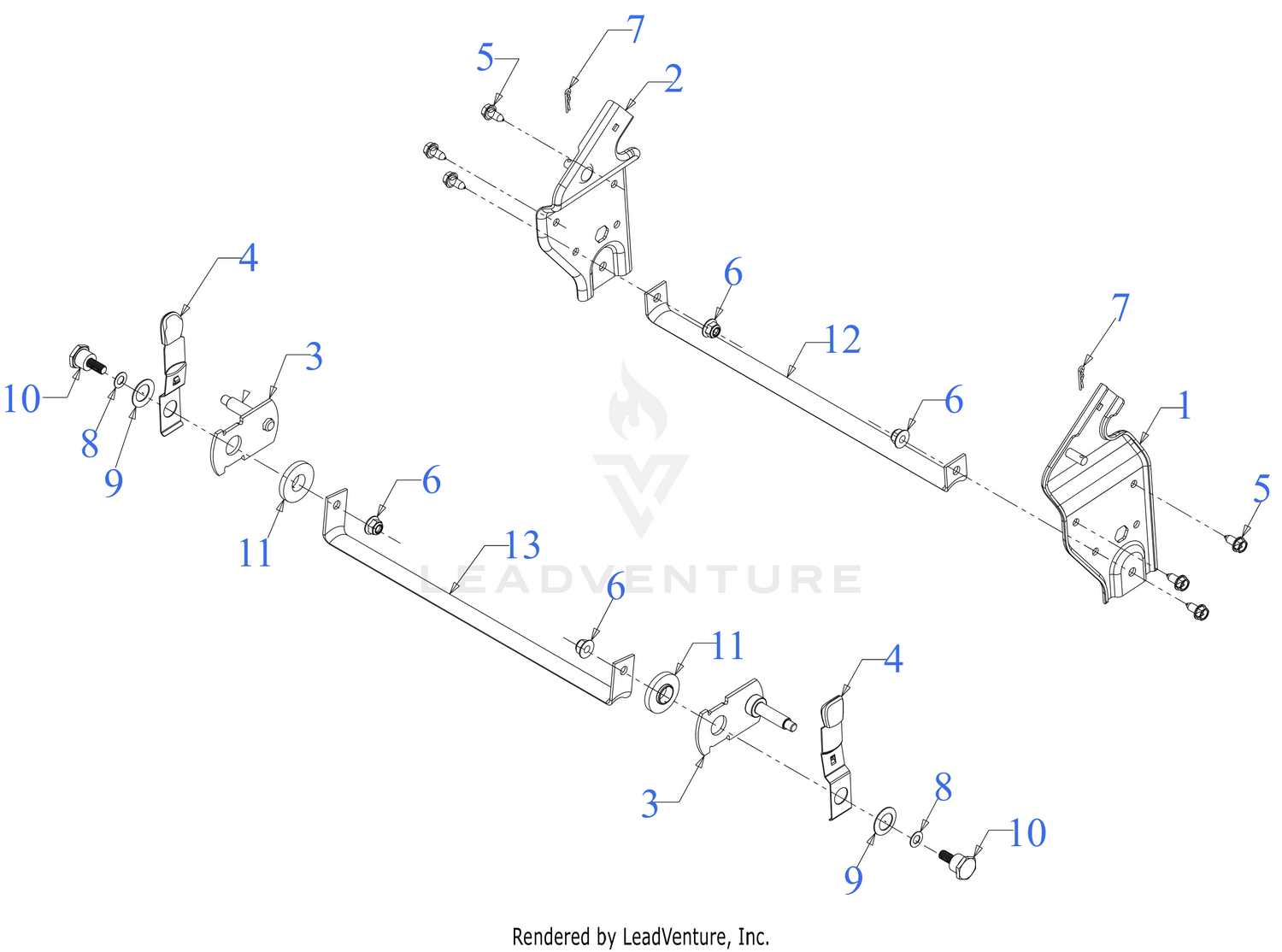

Wheel Height Adjustment
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 681-04195 | PIVOT ARM ASSEMBLY Price: $13.05 |
| 4 | 687-02051 | HEIGHT LEVER ASSEMBLY Price: $8.27 |
| 5 | 710-0726 | SCREW 5/16-12 x .750 Price: $3.82 |
| 6 | 712-04065 | NUT Price: $3.68 |
| 7 | 714-0104 | COTTER PIN .072 DIA Price: $3.90 |
| 8 | 736-0314 | WASHER THRUST .375X.70X.030 Price: $6.01 |
| 9 | 736-0741 | BELL WASHER Price: $3.99 |
| 10 | 738-1172 | SHOULDER SCREW .75 X.50 X3/8-16 Price: $5.01 |
| 11 | 741-04242 | HEIGHT ADJUSTMENT BEARING Price: $6.57 |
| 12 | 781-04081-0637 | SUPPORT BRACE Price: $24.01 |
