Home / OPE / Riding Products / 30656, CT2140 Compact Triple 4-Wheel Drive Turf Mower, 2012 (SN 312000001-312999999) / Steering Column, Seat and Platform Assembly

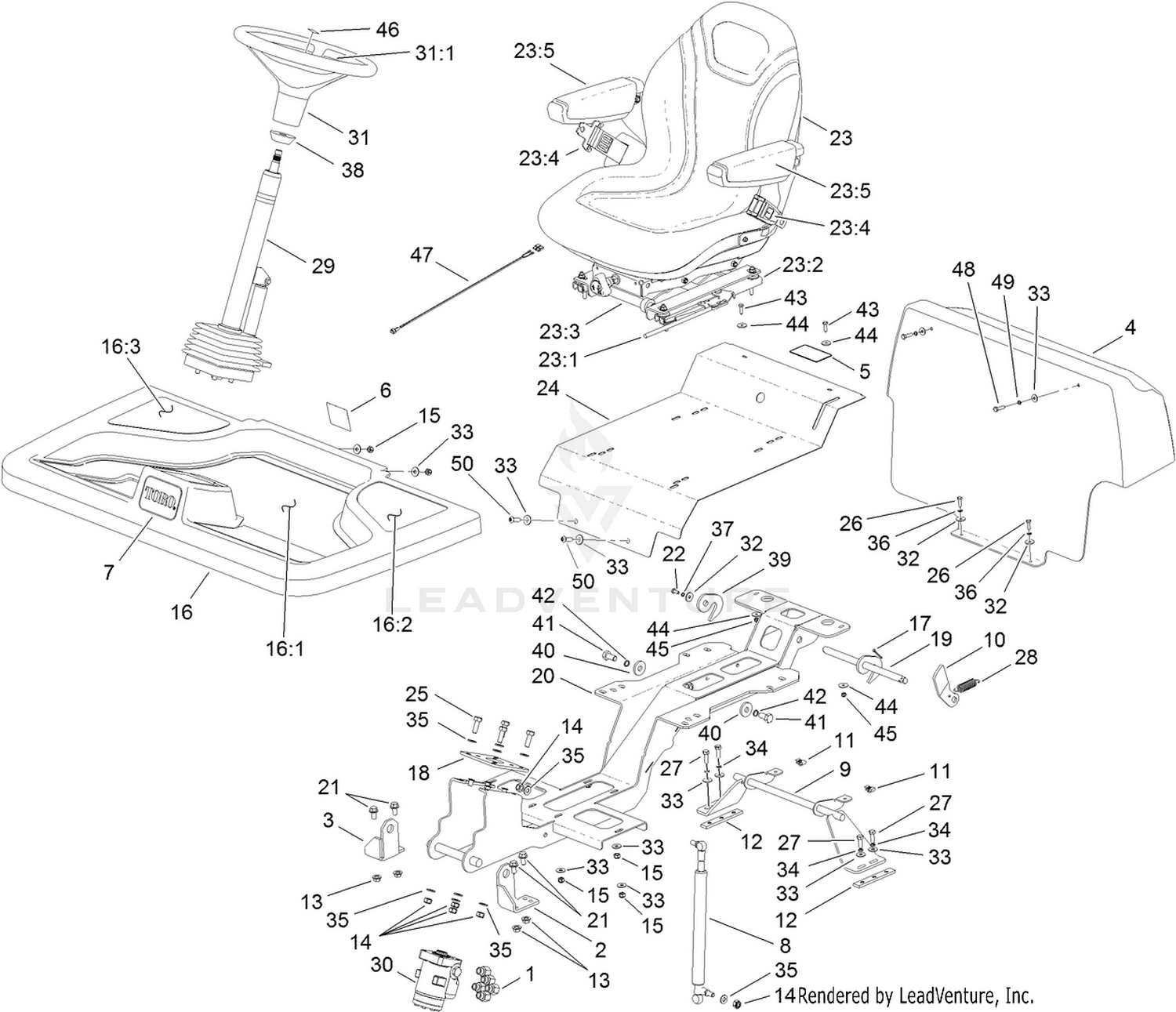

Steering Column, Seat and Platform Assembly

Steering Column, Seat and Platform Assembly

Parts (49)

RefPart NumberDescription
1 111-3509 ADAPTOR 3/8" BSP - T1FQLD Price: $15.31
2 111-3243-03 BRACKET PLATFORM PIVOT LH Price: $29.30
3 111-2665-03 BRACKET PLATFORM PIVOT RH Price: $28.32
4 111-3293 BULKHEAD Price: $258.58
5 111-3566 PLATFORM LATCH DECAL Price: $22.64
6 111-3562 DECAL Price: $21.00
7 67-1300 DECAL Price: $29.99
8 111-3510 GAS SPRING Price: $132.62
9 111-3140-03 LATCH BAR WELDED ASSEMBLY Price: $114.50
10 111-3269-03 LEVER PLATFORM LATCH Price: $16.31
11 410076 LUG NUT Price: $1.56
12 111-3281 NUT BAR Price: $18.16
13 63-11-015 FLANGED NUT(12.9)M10 Price: $2.54
14 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
15 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
16 111-9767 PLATFORM-OPERATOR This part replaces 111-3296. Price: $449.64
17 70-11-004 SPLIT PIN 4 DIA*40 Price: $5.90
18 111-2899-03 PLATE STEERING PUMP MOUNT Price: $14.60
19 111-3266 PLATFORM LATCH W/A Price: $57.99
20 111-9565-03 SUPPORT-PLATFORM This part replaces 111-2640-03. Price: $381.39
21 63-11-018 HEX HED. SCREW (DURLOCK)M10*20 Price: $7.62
22 09362 SCREW M6 X 16 HEX HD ZINC Price: $1.42
23 111-3500 SEAT Price: $491.70
24 111-3069-03 SEAT PAN Price: $97.51
25 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
26 09363 SETSCREW M6 X 20 Price: $1.31
27 03162 STEEL BOLT Price: $1.39
28 70-07-063 EXTENSION SPRING Price: $12.85
29 111-2576 STEERING COLUMN Price: $794.10
30 111-7464 VALVE-CONTROL, STEERING This part replaces 111-2574. Price: $765.32
31 98-1471 WHEEL-STEERING Price: $145.99
32 09263 WASHER 1/4 X 7/8 X .08" THK Price: $1.34
33 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
34 03469 WASHER M8 SC SPRING Price: $1.40
35 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
36 1-805004 WASHER-LOCK This part replaces 09264. Price: $0.56
37 09474 WASHER M6 SC SPRING Price: $1.34
38 93-5429 COLLAR-FOAM Price: $36.18
39 111-3268 PLATE PLATFORM LATCH Price: $53.93
40 63-01-115 WASHER Price: $2.67
41 09571 SETSCREW M12 X 25 HEX HD Price: $1.40
42 09599 WASHER Price: $1.42
43 09363 SETSCREW M6 X 20 Price: $1.31
44 09263 WASHER 1/4 X 7/8 X .08" THK Price: $1.34
45 09438 NUT M6 X 1.5 PLAIN Price: $1.39
46 98-1459 DECAL Price: $3.93
47 111-6186 CABLE-SEAT, BEACON This part replaces 111-3779. Price: $181.28
48 09369 SETSCREW M8 X 30 Price: $1.40
49 03469 WASHER M8 SC SPRING Price: $1.40
