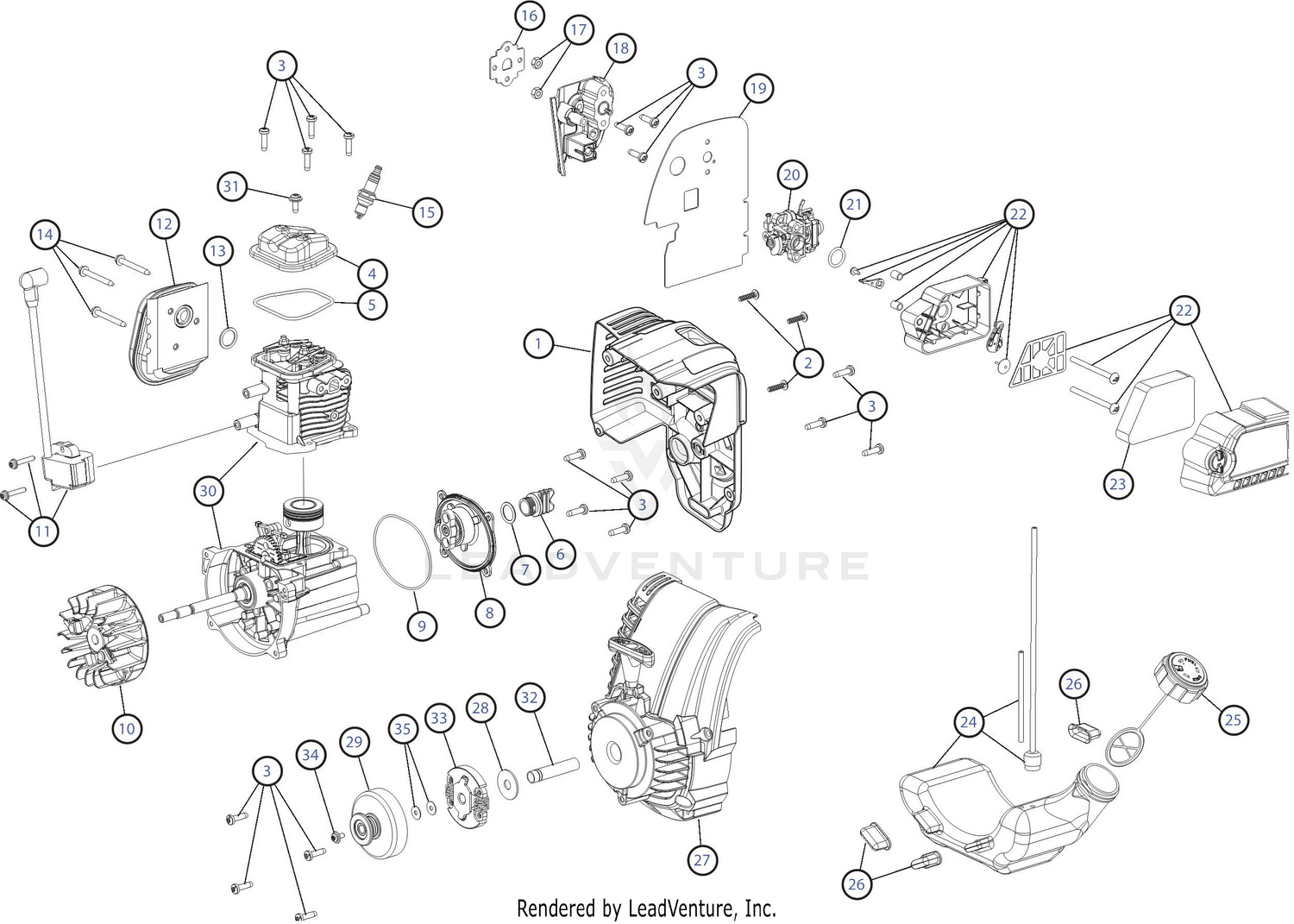

Engine Assembly
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 710-04194 | Cover Screw Price: $3.66 |
| 3 | 710-04604A | SCREW M5X0.8 This part replaces 710-04604. Price: $3.63 |
| 4 | 753-05901 | Rocker Cover Price: $7.13 |
| 5 | 753-05902 | Rocker Cover O-Ring Price: $4.58 |
| 7 | 791-182290 | Oil Plug O-Ring Price: $4.29 |
| 8 | 841-020721S | CRANKCASE COVER This part replaces 753-06111. Price: $11.71 |
| 9 | 753-05238 | Crankcase Cover O-Ring Price: $9.20 |
| 10 | 753-06221 | Flywheel Assembly Price: $18.82 |
| 11 | 753-05836 | Module Assembly Price: $43.89 |
| 13 | 753-05244 | Muffler Gasket Price: $5.11 |
| 14 | 710-04809 | SCREW M5 x 44MM This part replaces 710-04487. Price: $2.83 |
| 15 | 794-00082 | Spark Plug Price: $6.35 |
| 16 | 753-05247 | GASKET/INSULATOR Not Available Price: |
| 17 | 712-04099 | Nut Price: $5.94 |
| 18 | 753-05249 | Insulator Not Available Price: |
| 19 | 753-05366 | Carburetor Gasket Price: $17.21 |
| 21 | 791-181751 | O-Ring Price: $3.92 |
| 23 | 753-05996 | Air Filter Price: $3.04 |
| 25 | 753-1229 | Fuel Cap Price: $19.90 |
| 26 | 753-05259 | Fuel Tank Pads Price: $5.72 |
| 28 | 9162-1 | Washer Price: $3.91 |
| 30 | 753-06663 | Shortblock Assembly Price: $94.06 |
| 31 | 791-181025 | Screw Price: $2.44 |
| 32 | 750-04434 | Spacer Price: $5.91 |
| 34 | 791-182468 | SCREW 8-32X.375 PH S Not Available Price: |
