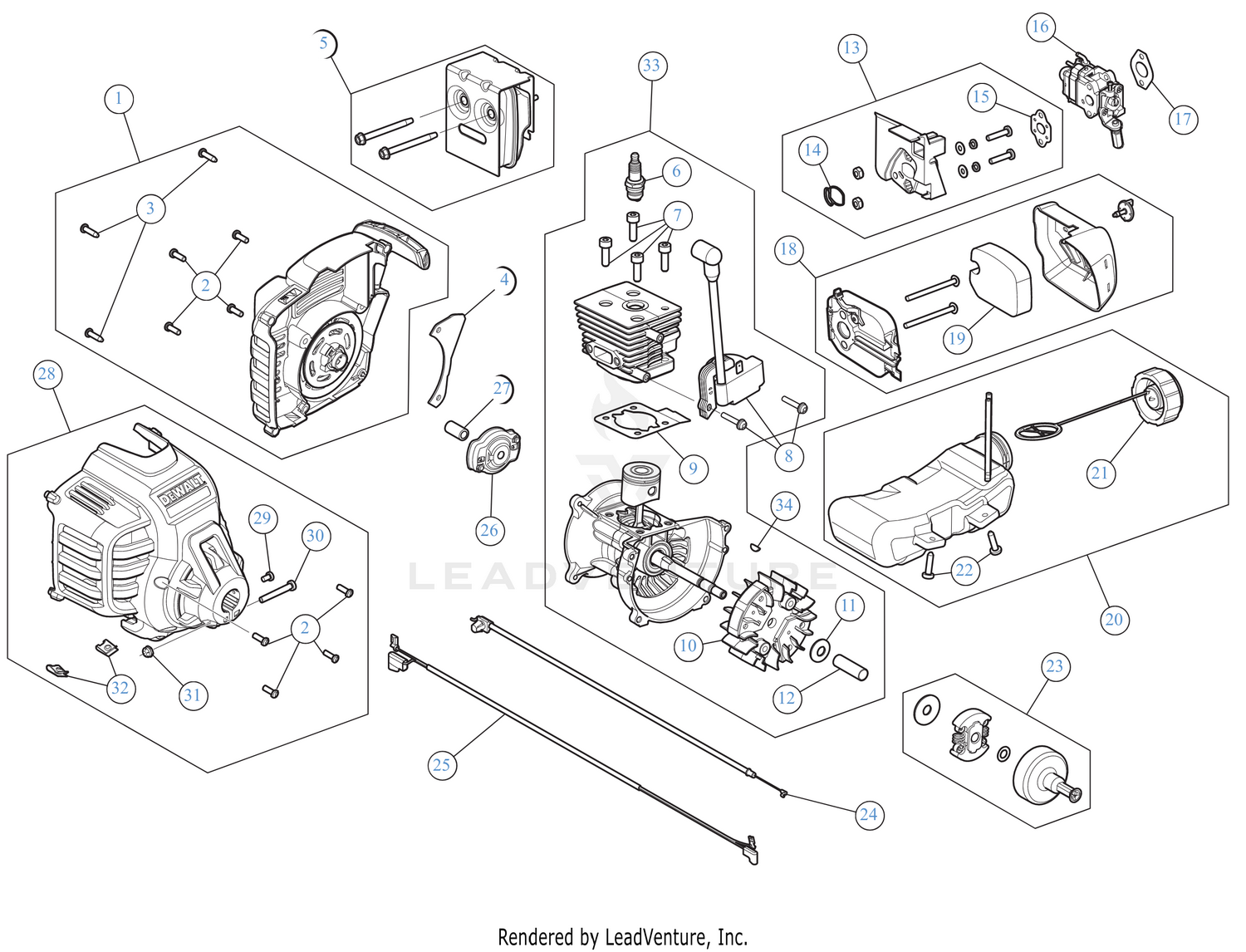

Engine Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 791-182195 | SCREW #10-24X11/16 T-25 Price: $6.20 |
| 3 | 710-04194 | SCREW 8-16 x 3/4 Price: $3.66 |
| 4 | 731-21835 | STARTER GUARD Price: $2.73 |
| 5 | 753-08745 | MUFFLER ASSEMBLY Price: $23.25 |
| 6 | 753-06847 | SPARK PLUG Price: $6.35 |
| 7 | 710-04715 | SCREW 1/4 x 20 x .8125 Price: $6.01 |
| 8 | 753-10924 | MODULE 27CC Price: $27.04 |
| 9 | 753-06827 | GASKET CYL Price: $2.87 |
| 10 | 753-06246 | FLYWHEEL ASSEMBLY 27CC Price: $19.20 |
| 11 | 753-06247 | BELL WASHER Price: $3.05 |
| 12 | 753-06248 | SPACER Price: $2.94 |
| 14 | 753-06184 | O-RING Price: $2.93 |
| 15 | 791-181709 | CARBURETOR GASKET Price: $4.30 |
| 16 | 753-11347 | CARBURETOR:27CC TRIM ROT This part replaces 751-20529. Price: $38.98 |
| 17 | 753-06253 | GASKET CARB Price: $2.98 |
| 19 | 753-06954 | AIR FILTER Price: $2.59 |
| 21 | 753-06857 | FUEL CAP Price: $6.73 |
| 22 | 791-181930 | SCREW:10-6 x .75 Price: $5.95 |
| 23 | 753-05860 | SMALL CLUTCH ASSEMBLY W/SMALL DRUM Price: $22.50 |
| 24 | 746-06691 | THROTTLE CABLE Price: $2.83 |
| 25 | 753-05877 | LEAD WIRES Price: $8.69 |
| 26 | 753-06091 | PAWL ASSEMBLY AC5 Price: $7.90 |
| 27 | 753-06104 | ELECTRIC START ADP Price: $3.61 |
| 29 | 791-182519 | SCREW, 8-32 x .312 P Price: $4.37 |
| 30 | 2986 | SCREW 10-24 X 1.12 Price: $0.40 |
| 31 | 712-0161 | HEX NUT Price: $4.02 |
| 32 | 791-182366 | NUT, TINNERMAN U-T Price: $4.90 |
