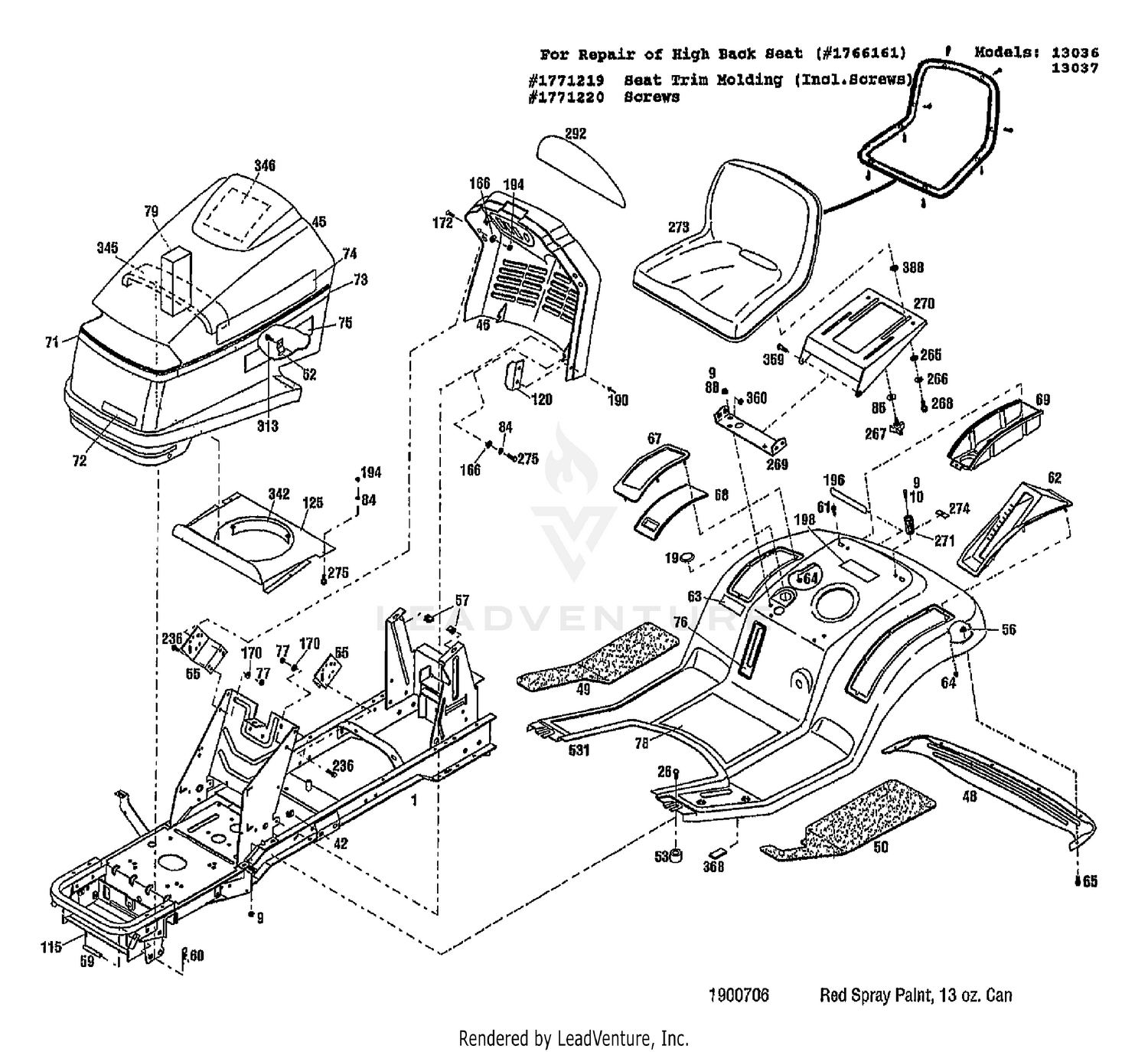

| Ref | Part Number | Description |
|---|
| 1 |
1772924001 |
FRAME BLACK Not Available This part replaces 1765435001. Price: |
| 9 |
712-04054 |
NUT-HFLK 5/16-18 ZP This part replaces 1186391. Price: $3.95 |
| 10 |
1100044 |
SCR-HHC 5/16-18X.75 GR 5 ZP Price: $3.76 |
| 19 |
1768787 |
PLUG Not Available Price: |
| 26 |
1186100 |
SCREW-CARR 5/16-18X1 Not Available Price: |
| 42 |
1185893 |
NUT SPEED Not Available Price: |
| 45 |
1765382 |
HOOD-LTX Not Available Price: |
| 46 |
1765376 |
CONSOLE Not Available Price: |
| 48 |
1765331010 |
TRIM-FENDE Not Available Price: |
| 49 |
1765370 |
PAD-FOOT RH Not Available Price: |
| 50 |
1772845 |
PAD-LEFT FOOT Not Available This part replaces 1765371. Price: |
| 52 |
1765384 |
LATCH Not Available Price: |
| 53 |
1730681 |
SPACER Not Available Price: |
| 55 |
1768775001 |
BRACKET-MOUNT Not Available Price: |
| 56 |
1186389 |
NUT-HF/LK 1/4-20 ZP Price: $3.05 |
| 57 |
726-0211 |
One Mulch Plug Drill Guide This part replaces 1761680. Price: $3.90 |
| 59 |
1765497 |
PIN-PIVOT Not Available Price: |
| 60 |
1723478 |
HITCH PIN Not Available Price: |
| 61 |
710-04048 |
SCREW 5/16-18 x 1 GR5 This part replaces 1186330. Price: $4.19 |
| 62 |
1766139 |
COVER-LIFT Not Available Price: |
| 63 |
1901900 |
DECAL-AMER LEGEND Not Available Price: |
| 64 |
712-0415 |
SELF TAPP NUT Not Available This part replaces 1750532. Price: |
| 65 |
1186309 |
SCREW-FLANGE Not Available Price: |
| 67 |
1765493 |
TOP-STORAG Not Available Price: |
| 68 |
1765492 |
COVER-CONT Not Available Price: |
| 69 |
1765494 |
CONTAINER-STORAGE Not Available Price: |
| 71 |
1766383 |
DECAL-STRIPE HOOD Not Available Price: |
| 72 |
1759101 |
DECAL Not Available Price: |
| 73 |
1766382 |
DECAL-STRIPE HOOD Not Available Price: |
| 74 |
1767886 |
DECAL-LOGO TROY-BI Not Available Price: |
| 75 |
1766388 |
DECAL-MODEL 13039 Not Available Price: |
| 75 |
1767813 |
DECAL MODEL Not Available Price: |
| 75 |
1767814 |
DECAL MODEL Not Available Price: |
| 76 |
1766140 |
DECAL-FUEL LEVEL Not Available Price: |
| 77 |
712-3010 |
HEX NUT 5/16-18 This part replaces 1186230. Price: $3.89 |
| 78 |
1766142 |
DECAL-OPERATING IN Not Available Price: |
| 79 |
1768829 |
SEAL BLOCK Not Available Price: |
| 84 |
936-0329 |
Lock Washer This part replaces 1100241. Price: $3.90 |
| 85 |
736-3050 |
Washer, Plain (flat) 3/8, S.A.E. This part replaces 1107383. Price: $3.90 |
| 88 |
710-0260A |
Carriage Bolt, 5/16-18 x .62 This part replaces 1186097. Price: $3.71 |
| 115 |
1120210 |
DRIVE PIN, 3/16 x 1 Not Available Price: |
| 120 |
1768828001 |
HOOD ALIGN Not Available Price: |
| 125 |
1767873001 |
SHIELD-HEAT UPPER Not Available Price: |
| 166 |
1720883 |
WASHER Not Available Price: |
| 170 |
936-0119 |
LOCK WASHER 5/16 This part replaces 1100242. Price: $4.29 |
| 172 |
1816081 |
SCR-CNTRSN Not Available Price: |
| 190 |
1739918 |
POP RIVET Not Available Price: |
| 194 |
1186229 |
NUT-HEX 1/4-20 ZP Price: $4.05 |
| 198 |
1767876 |
LABEL-FUEL Not Available Price: |
| 236 |
710-04043 |
SCREW 5/16-18 This part replaces 1186329. Price: $3.96 |
| 265 |
1705793 |
WASHER-NYLON Not Available Price: |
| 266 |
1706782 |
WASHER-BOWED Not Available Price: |
| 267 |
1734269 |
KNOB-ADJUS Not Available Price: |
| 268 |
1754125 |
SCR-SHLDR 3/8-16X.25 Not Available Price: |
| 269 |
1766075001 |
BRACKET-SEAT Not Available Price: |
| 270 |
1766074001 |
SEAT SUPPORT Not Available Price: |
| 271 |
1766077 |
COMPRESSION SPRING Not Available Price: |
| 273 |
1766160 |
KIT-SEAT (TRACTOR) Not Available Price: |
| 273 |
1766161 |
KIT-SEAT (TRACTOR) Not Available Price: |
| 274 |
1766347 |
BRACKET-SPR HOLD Not Available Price: |
| 275 |
1111599 |
SCR-HH 1/4-20X.625 G5 ZP Price: $3.63 |
| 292 |
1764887 |
LENS-INSTR Not Available Price: |
| 292 |
1766349 |
LENS-INSTR Not Available Price: |
| 313 |
1185712 |
SCREW Not Available Price: |
| 342 |
1767897 |
GASKET Not Available Price: |
| 345 |
1767898 |
STRIP SEAL Not Available Price: |
| 346 |
1765397 |
DECAL-SERVICE Not Available Price: |
| 359 |
710-3001 |
Hex Screw, 3/8-16, .880, Gr5, Std This part replaces 1100913. Price: $6.20 |
| 360 |
712-0375 |
Hex Cent. L-Nut 3/8-16 Thd. This part replaces 1110108. Price: $4.02 |
| 368 |
1767995 |
PAD Not Available Price: |
| 388 |
736-0133 |
Washer, Flat, .411 x 1.25 x .100 This part replaces 1893445. Price: $4.67 |
| 531 |
1768716 |
FENDER-RED W/DECALS Not Available Price: |
| 1771219 |
KIT-SEAT |
TRIM Price: Call Us 1771219 |
