| Ref | Part Number | Description |
|---|
| 1 |
33005-00 |
NUT-HF Price: $0.68 |
| 2 |
87-5100 |
WASHER-SNUBBING Price: $3.46 |
| 3 |
130-2486 |
MOUNT This part replaces 53-9681. Price: $36.47 |
| 4 |
33115-030 |
SCREW-HH This part replaces 48-9470. Price: $0.68 |
| 5 |
33115-100 |
SCREW-HH This part replaces 48-7840. Price: $1.57 |
| 6 |
92-7425-03 |
SUPPORT-MOUNT, ENGINE This part replaces 92-7425. Price: $47.42 |
| 7 |
33105-070 |
SCREW-HHF Price: $4.75 |
| 8 |
33105-030 |
SCREW-HHF Price: $1.56 |
| 9 |
48-7570 |
SCREW-HH Price: $8.48 |
| 10 |
48-7810 |
SCREW Price: $7.98 |
| 11 |
33114-020 |
SCREW-HH This part replaces 66-3160. Price: $0.28 |
| 12 |
94-1418 |
HOSE-RADIATOR, UPPER Price: $48.18 |
| 13 |
2412-3 |
CLAMP-HOSE Price: $3.49 |
| 14 |
92-7429-03 |
MOUNT-MOTOR, RH This part replaces 92-7429. Price: $99.31 |
| 15 |
94-1421 |
COUPLING-CENTER SPRING Price: $399.47 |
| 16 |
100-3794 |
DISCONTINUED This part replaces 93-4233. Price: Call Us |
| 17 |
75-1370 |
CABLE-BATTERY, POSITIVE Price: $74.84 |
| 18 |
94-3090 |
HARNESS - WIRE, MAIN Price: $1,957.31 |
| 19 |
3256-49 |
WASHER-PLAIN Price: $0.33 |
| 20 |
86-2990 |
MOUNT-CABLE, THROTTLE Price: $22.81 |
| 21 |
93-7594 |
SPACER Price: $34.12 |
| 22 |
93-4215 |
DISCONTINUED Price: Call Us |
| 24 |
48-7880 |
NUT-HEX Price: $0.25 |
| 25 |
110-6184 |
HOSE-FUEL This part replaces 92-7521. Price: $49.59 |
| 26 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 27 |
110-4113 |
HOSE-FUEL This part replaces 63-7627. Price: $9.44 |
| 28 |
68-9400 |
NUT-FLANGE This part replaces 48-7930. Price: $2.29 |
| 29 |
94-2624 |
DISCONTINUED Price: Call Us |
| 30 |
2412-125 |
CLAMP-HOSE Price: $5.22 |
| 31 |
92-7466 |
CLUTCH-FAN Price: $235.73 |
| 32 |
74-3650 |
FAN Price: $269.64 |
| 33 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 34 |
322-3 |
SCREW-HH Price: $0.79 |
| 35 |
33104-020 |
SCREW-HHF Price: $2.07 |
| 36 |
92-7463 |
DISCONTINUED Price: Call Us |
| 37 |
77-3700 |
GASKET-MUFFLER, EXHAUST Price: $27.34 |
| 38 |
92-7382 |
DISCONTINUED Price: Call Us |
| 39 |
2412-129 |
CLAMP-HOSE Price: $2.10 |
| 40 |
74-6490 |
HOSE-LINE, WATER Price: $4.86 |
| 41 |
92-7381 |
TUBE-RETURN, WATER Price: $75.00 |
| 42 |
33115-025 |
SCREW-HH This part replaces 48-7780. Price: $0.61 |
| 43 |
92-7426-03 |
MOUNT-MOTOR, LH ASM This part replaces 92-7426. Price: $92.73 |
| 44 |
33004-00 |
NUT-HF Price: $0.34 |
| 45 |
33114-016 |
SCREW-HH This part replaces 48-7700. Price: $0.27 |
| 46 |
33113-012 |
SCREW-HH This part replaces 48-7610. Price: $0.71 |
| 47 |
82-5120-03 |
PLATE-ADAPTER This part replaces 82-5120. Price: $822.40 |
| 48 |
2412-150 |
CLIP-J Price: $1.63 |
| 49 |
94-1422 |
SPACER-COUPLING Price: $17.98 |
| 50 |
3290-282 |
RIVET-BLIND Price: $0.28 |
| 51 |
93-9176 |
DIPSTICK Price: $75.61 |

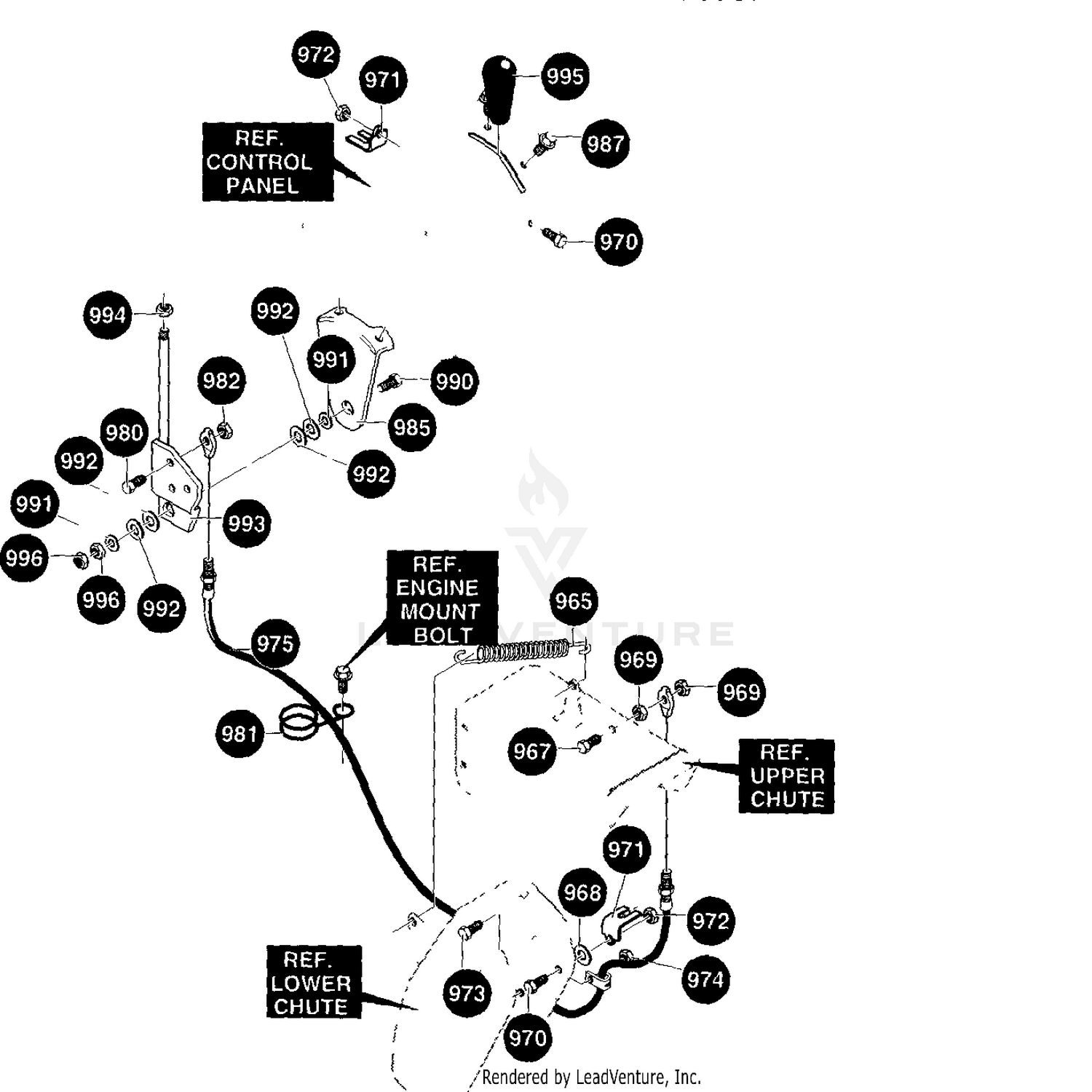

| 965 |
601001638 |
SPRING, TENSION Price: $3.96 |
| 967 |
601001639 |
SCREW, 1/4-20X1.00 Price: $3.99 |
| 968 |
601000019 |
WASHER, FLAT .344X .69X. Price: $2.99 |
| 969 |
601002318 |
RP NUT This part replaces 601000062. Price: $9.99 |
| 970 |
601000073 |
SCREW, 5/16-18X .75 HHC Price: $2.99 |
| 971 |
601001641 |
BRKT, CABLE Price: $4.56 |
| 972 |
601000059 |
NUT, 5/16-18 REGHEXCTRLK Price: $5.99 |
| 973 |
601000514 |
SCREW, 10-24X.38 SLHWATAP Price: $1.32 |
| 974 |
601001642 |
NUT, #10-24 HEXNYLLK Price: $1.59 |
| 975 |
601002461 |
CHUTE CONTROL CABLE This part replaces 601001643. Price: $64.99 |
| 980 |
601000068 |
SCREW, 1/4-20X .75 HHC Price: $2.99 |
| 981 |
601001645 |
WIRE, FORM Price: $26.16 |
| 982 |
601002318 |
RP NUT This part replaces 601000062. Price: $9.99 |
| 985 |
601002046 |
BRACKET This part replaces 601002042. Price: $6.99 |
| 987 |
601000519 |
SCREW, 5/16-18X .50 WAHHT Price: $1.99 |
| 990 |
601000034 |
SCREW, 3/8-16X1.75 HHC Price: $3.33 |
| 991 |
601000020 |
WASHER, FLAT .406X .81X. Price: $2.53 |
| 992 |
601001647 |
WASHER, SPRING Price: $3.46 |
| 993 |
601001559 |
SPEED CONTROL HANDLE Price: $20.99 |
| 994 |
601002407 |
NUT 3/8-16 This part replaces 601000060. Price: $3.99 |
| 995 |
601000236 |
HANDLE, 3/8-16 MOLDED GRE Price: $13.02 |
