Home / OPE / Greens Roller / 44912, GreensPro 1240 Greens Roller, 2014 (SN 314000001-314000800) / Transmission Control Assembly

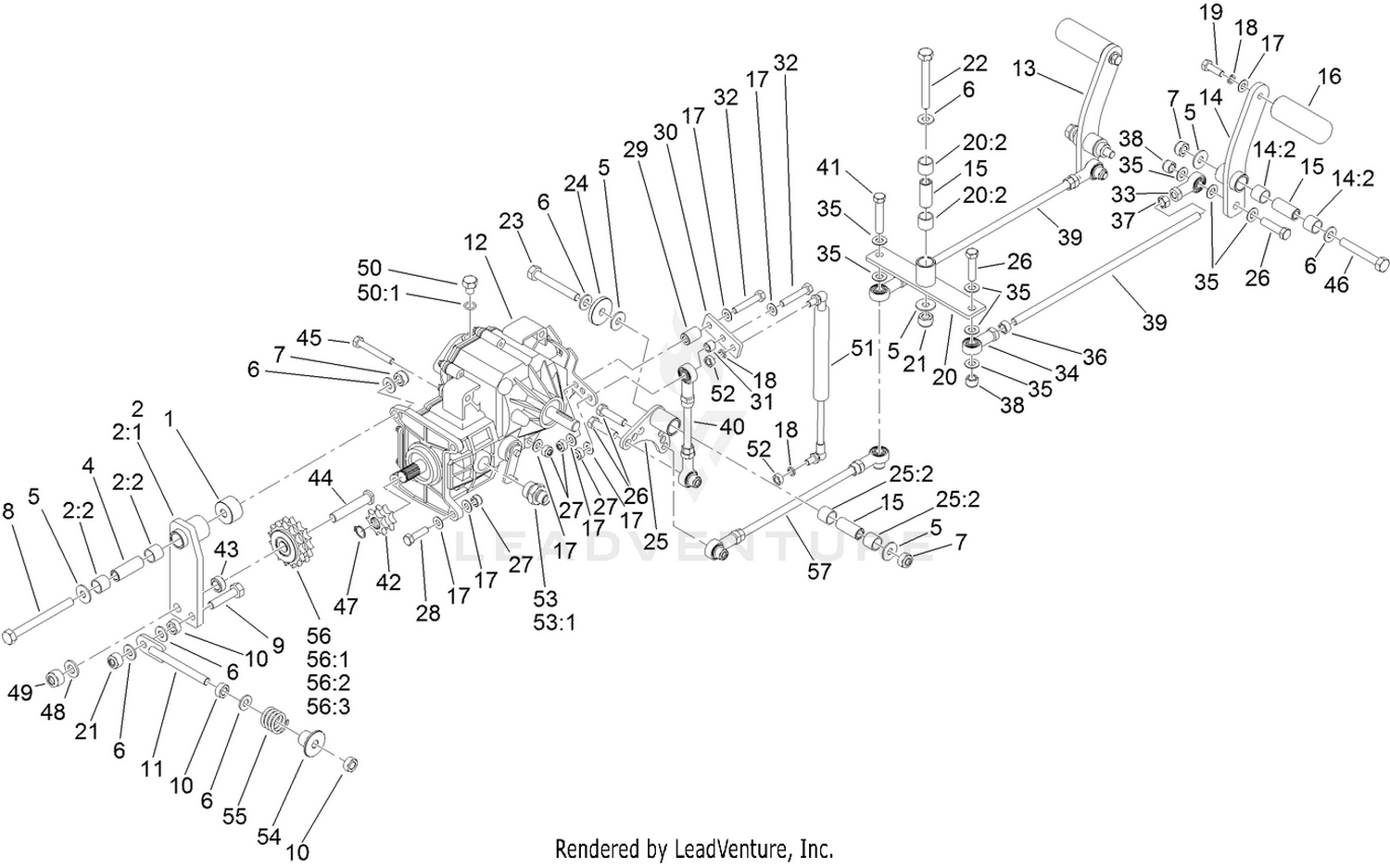

Transmission Control Assembly

Transmission Control Assembly

Parts (54)

RefPart NumberDescription
1 111-5672 SPACER Price: $8.88
2 127-7972 IDLER ARM ASM Price: $41.27
4 127-7969 BUSHING-PIVOT Price: $13.76
5 HY03355 WASHER 3/8 X 7/8 X 15G PLATED Price: $1.49
6 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
7 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
8 09405 BOLT M10*110*1.5 PITCH Price: $1.54
9 ZDH1J045U HEX.HD.SET SCW.M10 * 45LG Price: $1.31
10 09449 NUT M10 PLAIN Price: $1.34
11 111-5736 TENSIONING ROD ASM Price: $38.23
12 111-6000 TRANSMISSION ASM Price: $835.55
13 127-5948 LEFT HAND MOTION PEDAL ASM Price: $49.24
14 127-5947 RIGHT HAND MOTION PEDAL ASM Price: $49.24
15 127-5938 BUSHING-PIVOT Price: $13.83
16 111-5727 PEDAL Price: $21.04
17 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
18 03469 WASHER M8 SC SPRING Price: $1.40
19 03162 STEEL BOLT Price: $1.39
20 127-5946 PEDAL ROD PIVOT ASM Price: $48.42
21 09447 NUT M10 X 1.5 NYL INS Price: $1.40
22 09404 BOLT Price: $1.42
23 ZBH1J075U HEX HD.BOLT M10*75 Price: $1.31
24 111-5674 COLLAR-FIXING Price: $7.65
25 127-7950 LEVER QUADRANT ASM Price: $47.07
27 09441 NUT M8 NYL INSERT T TYPE Price: $1.39
28 09369 SETSCREW M8 X 30 Price: $1.40
29 111-5722 SPACER-DAMPER Price: $6.61
30 111-5711 PLATE-DAMPER Price: $4.32
31 111-5792 BUSHING Price: $6.72
32 09654 BOLT M8 X 45 HX.HD GR.8.8 Z/P Price: $1.40
33 111-5959 JOINT-BALL Price: $26.25
34 111-5748 JOINT-BALL Price: $24.51
35 09271 WASHER 3/8 X 3/4 X 18G PLAIN Price: $1.40
36 09213 NUT Price: Call Us
37 111-5855 NUT-HEX, LH Price: $1.27
38 09216 NUT-HEX, NI Price: $1.40
39 111-5682 ROD-LINKAGE Price: $22.58
40 111-5690 ARM-LINKAGE Price: $13.03
41 09121 BOLT UNF 3/8 X 2 S QUAL Price: $1.40
42 127-5870 SPROCKET-8 TOOTH Price: $37.97
43 111-5712 BUSHING-IDLER, GEAR Price: $8.88
44 111-5723 BOLT-SPROCKET, IDLER Price: $18.08
45 09371 BOLT M8 X 60 Price: $1.34
46 09399 BOLT Price: $1.40
47 111-6009 CIRCLIP-EXT Price: $6.90
48 HY09485 WASHER M12 PLAIN Price: $1.40
49 ZNN1L000U HEX.NUT NYLOC M12 Price: $1.40
50 111-4788 FITTING-STRAIGHT Price: $4.75
51 127-5896 DAMPER Price: $50.53
52 ZNH1H000U HEX.NUT M8 Price: $1.40
53 70-06-053 BOSS ADAPT 7/8-3/8" Price: $6.93
54 127-5829 SPACER Price: $12.32
55 127-5849 SPRING-COMPRESSION Price: $13.31
56 111-5768 IDLER SPROCKET ASM Price: $70.86
