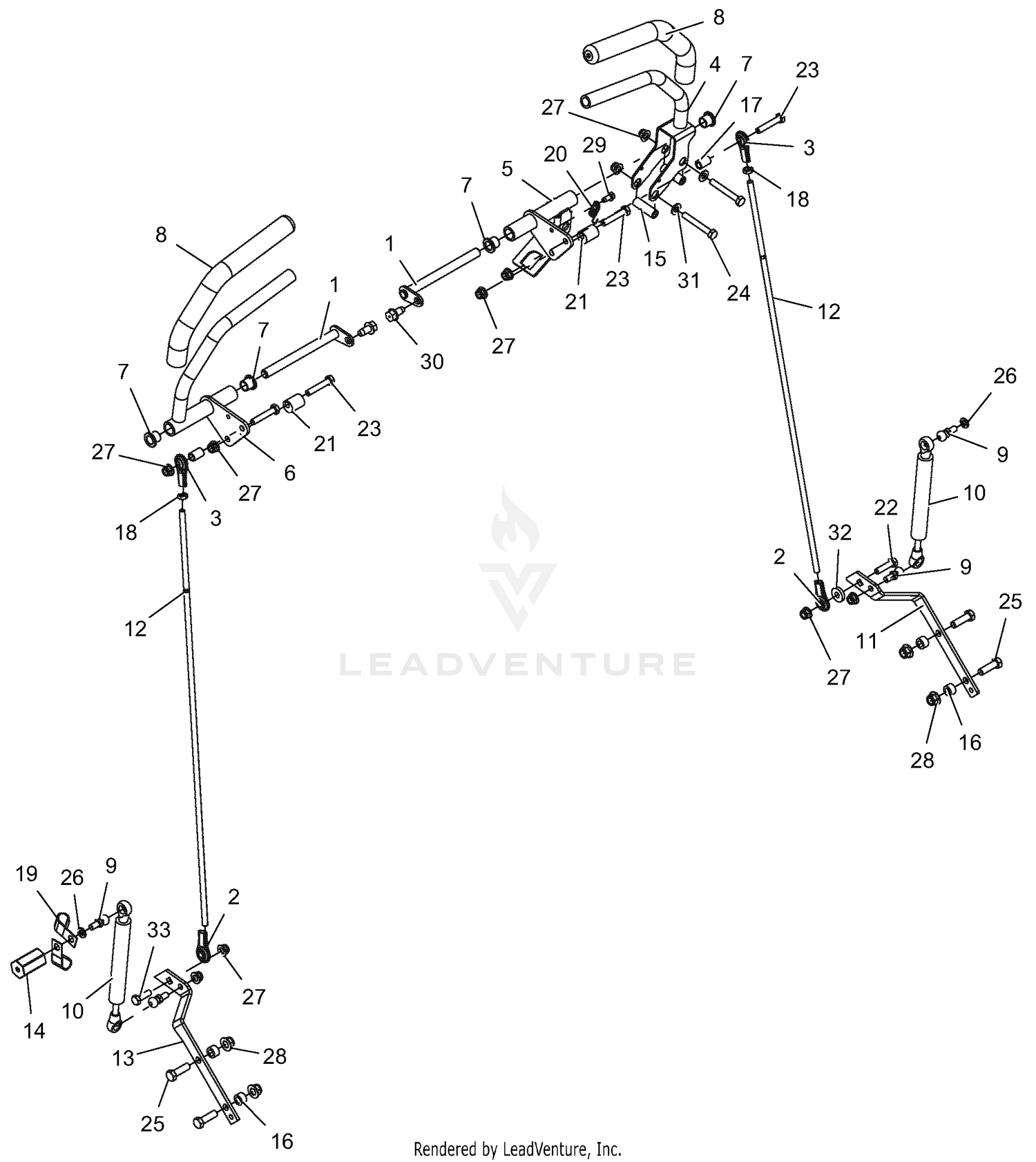

Operator Controls - Steering Levers

Operator Controls - Steering Levers

Parts (30)

RefPart NumberDescription
1 00203893 WLDT, PIN AND LOCK Y Price: $26.95
2 03787100 ALIGNABALL, 5/16 RH THREAD Price: $16.45
3 05298700 ROD END- 5/16 LH THREAD This part replaces 03787200. Price: $15.45
4 04389851 WMT, CONTROL ARM OPC Price: $61.45
7 00200116 BRG, FLG .500X.620X.500 BRNZ Price: $5.45
8 00675200 GRIP, HANDLEBAR Price: $8.45
9 03652200 STUD- BALL Price: $3.45
10 03914100 DAMPER, CONTROL Price: $41.95
11 04378451 BRKT, PROSTANCE CONTROL Price: $20.45
12 04399900 ROD, STEERING Price: $19.45
13 04446251 BRKT,PROSTANCE CONTROL-RH Price: $24.95
14 04456300 MOUNT, DAMPER - PROSTANCE Price: $31.45
15 05501110 BSHG-SLV .325X.49X1.56 Price: $8.95
16 05522100 BSHG-SLV .377X.624X.370 Price: $4.45
17 05531500 BSHG-SLV .328X.50X.75 Price: $12.45
18 06501002 NUT, JAM-LH .312-24 ZCC This part replaces 06544300. Price: $3.45
19 06916000 J-CLAMP Price: $2.45
20 08300036 SPRING, EXT. .043X.438X1.64 Price: $1.95
21 09235700 ECCENTRIC Price: $4.45
22 05901803 BLT, HEX .31-18X1.25 G5 ZCC This part replaces 05947500. Price: $2.45
23 05901804 BLT, HEX .31-18X1.75 G5 ZCC This part replaces 05957400. Price: $2.95
24 05901806 BLT- HEX .31-18X2.25 G5 ZCC This part replaces 05963700. Price: $1.45
25 05901724 BLT- HEX .38-16X1.25 G5 ZCC This part replaces 05958000. Price: $1.45
26 06300119 WSHR-LK-REG .312X.078 ZCC This part replaces 06308600. Price: $0.95
27 06500809 NUT,NYL-FLG .31-18 GF ZCC This part replaces 06545400. Price: $1.45
28 06500726 NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45
29 07400122 SCR-TAP .25-20X.50 HWH ZCC This part replaces 07400034. Price: $0.45
30 07400129 SCR,TAP .375-16X.75 HWH TR ZCC This part replaces 07415400. Price: $1.45
31 06401017 WSHR,FLT .344X.688X.065 ZCC This part replaces 06437200. Price: $0.45
32 06401103 WSHR, FLT .328X.870X.179 ZCC This part replaces 06439100. Price: $2.95
