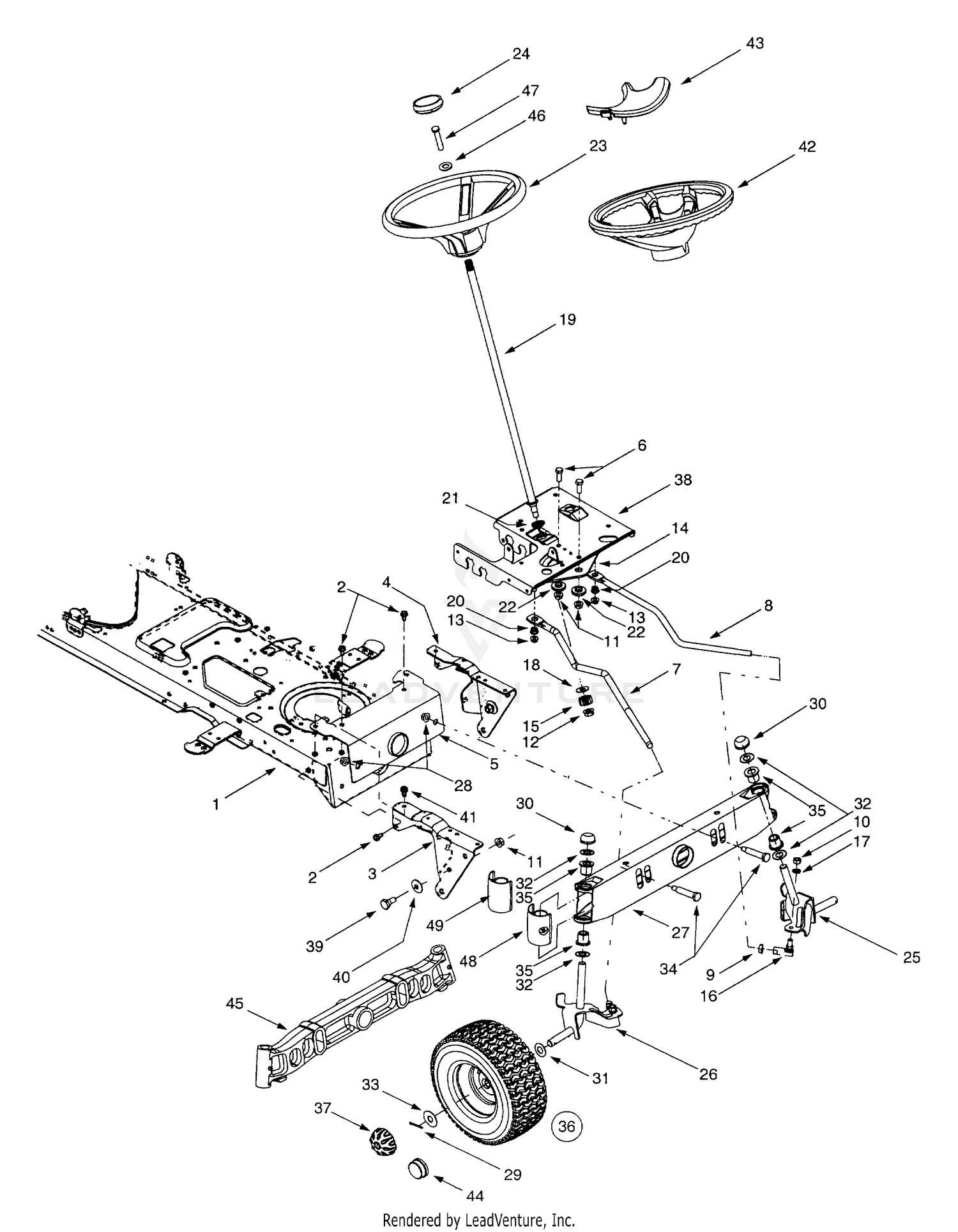

| Ref | Part Number | Description |
|---|
| 1 |
683-0304 |
LOWER FRAME Not Available Price: |
| 2 |
710-0604A |
Self-tapping Screw, 16-18 x .625 Price: $3.96 |
| 3 |
783-0726E |
PIVOT SUPPORT BRACKET (RH) Not Available This part replaces 783-0726A. Price: |
| 4 |
783-0727D |
PIVOT SUPPORT BRACKET (LH) Not Available This part replaces 783-0727. Price: |
| 5 |
783-0728B-0637 |
PIVOT BAR BRACKET (POWDER BLACK) Not Available This part replaces 783-0728. Price: |
| 6 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1 (Grade 5) Price: $3.78 |
| 7 |
711-1408 |
DRAG LINK (RH) Not Available Price: |
| 8 |
711-1409A |
DRAG LINK (LH) Not Available Price: |
| 9 |
912-0240 |
Nut, Jam, 7/16-20, Gr2 This part replaces 712-0240. Price: $3.90 |
| 10 |
712-0241 |
Hex Nut, 3/8-24 (Grade 2) Price: $3.86 |
| 11 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 12 |
712-0459 |
Flange Lock Nut, 7/16-20 Price: $4.39 |
| 13 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 14 |
717-1550F |
Steering Gear This part replaces 717-1550D. Price: $61.81 |
| 15 |
717-1554 |
Steering Pinion Gear Price: $9.44 |
| 16 |
923-0448A |
Ball Joint, 7/16-20, Lock This part replaces 723-0448A. Price: $22.55 |
| 17 |
736-0169 |
Lock Washer, 3/8 Price: $3.33 |
| 18 |
736-3084 |
Flat Washer, .51 x 1.12 x .06 Price: $4.39 |
| 19 |
738-1001A |
Steering Shaft, .625 OD x 24.4 Not Available Price: |
| 20 |
941-0475 |
BUSHING .380 ID This part replaces 741-0475. Price: $3.74 |
| 21 |
941-0656A |
BRG:HEX FLNG 5/8 This part replaces 741-0656. Price: $4.69 |
| 22 |
738-0372B |
Shoulder Spacer This part replaces 738-0372A. Price: $8.78 |
| 23 |
931-0027A |
Steering Wheel (4 Spoke) This part replaces 631-0027. Price: $85.70 |
| 24 |
931-0220 |
Steering Wheel Cap This part replaces 731-0220. Price: $7.93 |
| 28 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 29 |
714-0470 |
Cotter Pin Price: $3.90 |
| 30 |
726-0214 |
Push Cap, .625 Price: $9.11 |
| 30 |
726-0341 |
CAP This part replaces 926-0341. Price: $4.26 |
| 31 |
736-0162 |
Flat Washer, .64 x 1.0 x .12 Price: $3.86 |
| 33 |
736-0285 |
Flat Washer, .635 x 1.589 x .06 Price: $3.89 |
| 34 |
738-1011A |
SHOULDER SCREW .50 x 2.23 3/8-16 This part replaces 738-1011. Price: $7.65 |
| 36 |
734-0864 |
TIRE-15 x 6 Not Available Price: |
| 36 |
734-1731 |
Tire Only, Square Shoulder Price: $97.72 |
| 38 |
783-04612-0637 |
Steering Support Bracket This part replaces 783-0653D. Price: $78.74 |
| 39 |
738-0143 |
SHOULDER SCREW .498 DIA x .340 Price: $3.93 |
| 40 |
736-0331 |
Bell Washer, .39 x 1.13 x .062 Price: $3.50 |
| 41 |
710-1260A |
Self-tapping Screw, 5/16-18 x .75 Price: $3.34 |
| 42 |
731-1869 |
STEERING WHEEL Not Available Price: |
| 43 |
731-1904 |
STEERING WHEEL CAP Not Available Price: |
| 46 |
736-0242 |
Bell Washer, .34 x .872 Price: $3.75 |
| 47 |
710-0643 |
Hex Bolt, 5/16-18 X 1 Price: $5.99 |
| 48 |
931-1291A |
Pivot Bar End Cap w/ fitting This part replaces 731-1291A. Price: $13.96 |
