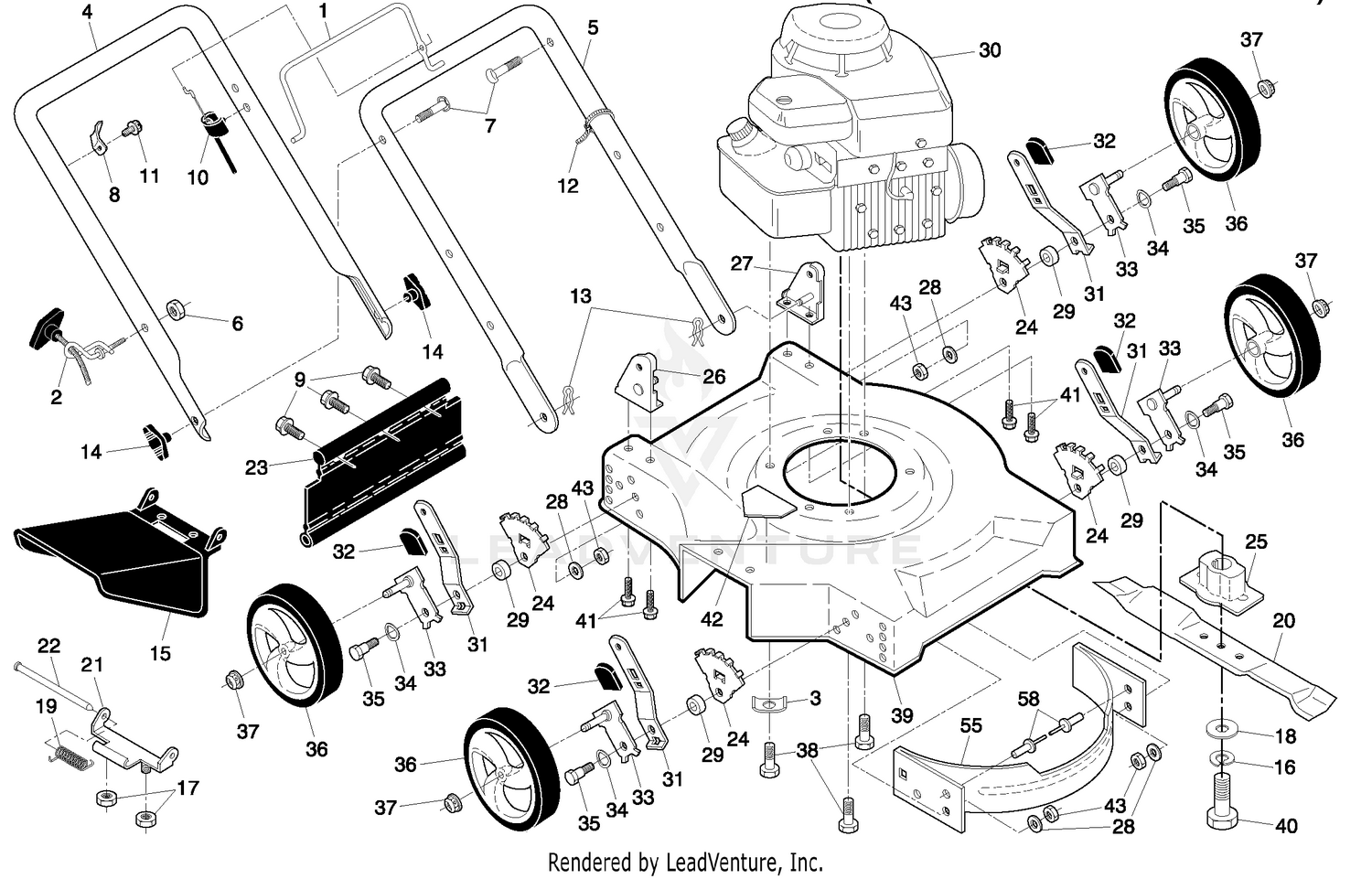

| Ref | Part Number | Description |
|---|
| 1 |
194176X428 |
Control Bar Price: Call Us |
| 1 |
94-7216 |
HOSE Price: $285.87 |
| 2 |
194788 |
Rope Guide Price: Call Us |
| 2 |
94-7038 |
HOSE ASM Price: $80.09 |
| 3 |
851201X004 |
Engine Washer Price: Call Us |
| 3 |
94-7026 |
DISCONTINUED Price: Call Us |
| 4 |
194180X479 |
Upper Handle Price: Call Us |
| 4 |
94-7037 |
HOSE ASM Price: $64.92 |
| 5 |
151590X479 |
Lower Handle Price: Call Us |
| 5 |
353-425 |
T FITTING This part replaces 94-7017. Price: $78.80 |
| 6 |
132004 |
Nut, Hex Price: Call Us |
| 6 |
94-7014 |
TEE Price: $73.88 |
| 7 |
191574 |
Handle Bolt 5/16-18 x 1-3/4 Price: Call Us |
| 7 |
353-388 |
FITTING-STRAIGHT This part replaces 94-7018. Price: $10.13 |
| 8 |
33116-120 |
SCREW-HH Price: $1.70 |
| 8 |
86899X004 |
Up-Stop Bracket Price: Call Us |
| 9 |
137-4285 |
HYDRAULIC MOTOR ASM This part replaces 93-6489. Price: $2,746.75 |
| 9 |
189241 |
Hex Washer Head Screw #10-24 x 1/2 Price: Call Us |
| 10 |
162778 |
Engine Zone Control Cable Price: Call Us |
| 10 |
3217-44 |
NUT-HEX This part replaces 22-9-AJD. Price: $1.29 |
| 11 |
750634 |
Screw Price: Call Us |
| 11 |
93-7966 |
SHAFT-SPLINED BRAKE Price: $96.40 |
| 12 |
33106-090 |
SCREW-HHF Price: $2.78 |
| 12 |
664-26 |
Wire Tie Price: Call Us |
| 13 |
51793 |
Hairpin Cotter Price: Call Us |
| 13 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 14 |
108-6731 |
KIT-BRAKE This part replaces 92-7414. Price: $2,603.90 |
| 14 |
189713X428 |
Knob, Handle Price: Call Us |
| 15 |
107-8657 |
CABLE-BRAKE, RH This part replaces 93-6594. Price: $121.27 |
| 15 |
412277X428 |
Discharge Guard Price: Call Us |
| 16 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 16 |
850263 |
Helical Lock Washer 3/8 Price: Call Us |
| 17 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 92-7415. Price: $3,119.29 |
| 17 |
73800400 |
Locknut, Hex 1/4-20 Price: Call Us |
| 18 |
851074 |
Hardened Washer Price: Call Us |
| 18 |
93-6495 |
ORDER COMPONENT PARTS Price: Call Us |
| 19 |
3296-19 |
NUT-HEX Price: $0.65 |
| 19 |
411832 |
Torsion Spring Price: Call Us |
| 20 |
145106 |
Blade, 20" Price: Call Us |
| 21 |
88602 |
Hinge Deflector Price: Call Us |
| 22 |
150215 |
Hinge Rod Price: Call Us |
| 23 |
189240 |
Rear Deflector Price: Call Us |
| 24 |
407494X005 |
Wheel Adjusting Bracket Price: Call Us |
| 25 |
850977 |
Blade Adapter Price: Call Us |
| 26 |
170345X479 |
Handle Bracket Assembly, RH Price: Call Us |
| 27 |
170346X479 |
Handle Bracket Assembly, LH Price: Call Us |
| 28 |
61537 |
Washer, Flat Price: Call Us |
| 29 |
401629 |
Spacer Price: Call Us |
| 31 |
401621X004 |
Selector Spring Price: Call Us |
| 32 |
87877 |
Selector Knob Price: Call Us |
| 33 |
401179X004 |
Axle Arm Assembly Price: Call Us |
| 34 |
401630 |
Washer, Curved, Cylindrical Price: Call Us |
| 35 |
401638 |
Shoulder Bolt Price: Call Us |
| 36 |
193850X617 |
Wheel and Tire Assembly Price: Call Us |
| 37 |
409148 |
Nut, Hex Price: Call Us |
| 38 |
150406 |
Hex Head Thread Rolling Screw 3/8-16 x 1-1/8 Price: Call Us |
| 39 |
414790 |
Lawn Mower Housing Price: Call Us |
| 40 |
851084 |
Hex Head Screw 3/8-24 x 1-3/8 Grade 8 Price: Call Us |
| 41 |
149741 |
Thread Cutting Screw 5/16-18 x 3/4 Price: Call Us |
| 42 |
404763 |
Danger Decal Price: Call Us |
| 43 |
73930500 |
Locknut, Hex 3/8-16 Price: Call Us |
| 55 |
700839X479 |
Baffle, Front Price: Call Us |
| 58 |
128415 |
Pop Rivet Price: Call Us |
