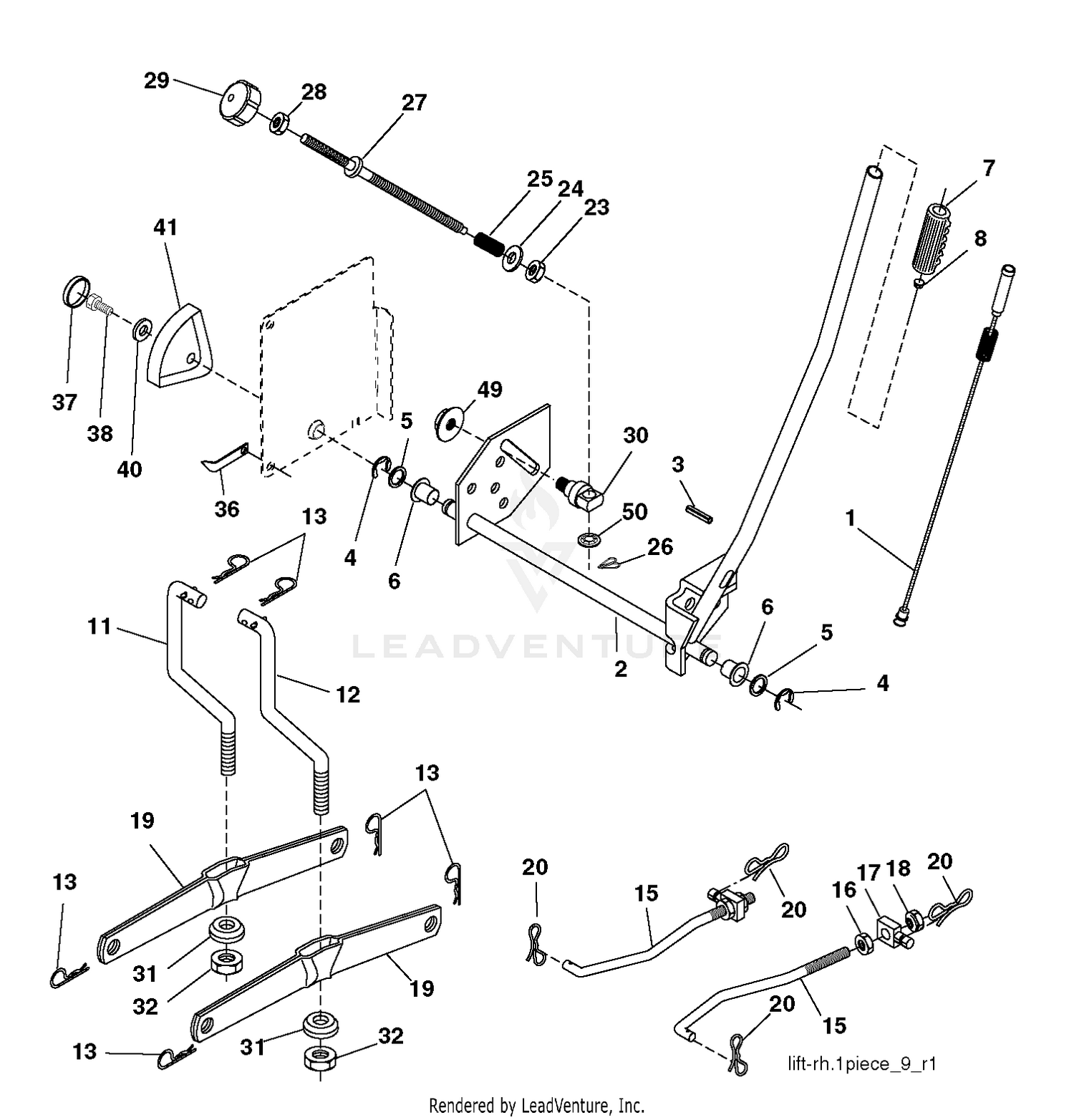

| Ref | Part Number | Description |
|---|
| 1 |
532404981 |
PLUNGER.ASM.LIFT.LVR.BLK.17.32 Price: $12.99 |
| 1 |
94-3645 |
KEY Price: $13.07 |
| 2 |
529845601 |
SERVICE KIT SHAFT ASM RH HANDL This part replaces 532159471. Price: $49.99 |
| 2 |
94-6359 |
SHAFT-DRIVE Price: $675.42 |
| 3 |
104-4046 |
BEARING-CUP Price: $40.66 |
| 3 |
532105767 |
PIN GROOVE. Price: $4.99 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 4 |
98-4640 |
SCREW-CAP Price: $7.46 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 5 |
98-4644 |
PLATE-COVER Price: $310.82 |
| 6 |
105-9762 |
WASHER Price: $5.90 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
100-3182 |
SHIM KIT Price: $404.35 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
532125925 |
PLUNGER BUTTON KIT This part replaces 532122365. Price: $5.99 |
| 8 |
98-4639 |
BEARING-CONE Price: $74.90 |
| 9 |
94-3646 |
KEY Price: $6.56 |
| 10 |
104-4888 |
SWASHPLATE Price: $1,258.52 |
| 11 |
532165828 |
LIFT LINK, LH This part replaces 532165829. Price: $17.99 |
| 11 |
76-6070 |
ROTATING KIT Price: $1,788.80 |
| 12 |
532165830 |
LINK ASSY. This part replaces 532165831. Price: $9.99 |
| 13 |
104-0429 |
PLATE-VALVE Price: $524.20 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 15 |
76-6150 |
PIN-DOWEL Price: $1.42 |
| 16 |
105-3813 |
ENDCOVER SUB ASM Price: $1,421.33 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 18 |
74-9280 |
PLUG ASM Price: $35.55 |
| 19 |
104-4889 |
RELIEF VALVE ASM Price: $818.85 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
105-3812 |
VALVE-CHECK Price: $570.10 |
| 20 |
532194209 |
PIN.COTTER.7/16.BOW TI. Price: $2.99 |
| 21 |
105-3811 |
VALVE-BYPASS Price: $170.14 |
| 22 |
76-6170 |
CAPSCREW Price: $2.65 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 23 |
76-6160 |
CAPSCREW Price: $3.95 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
532164024 |
SPRING Price: $3.99 |
| 25 |
98-4645 |
PLATE-COVER Price: $645.16 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 27 |
532164543 |
ROD ADJ LIFT Price: $6.99 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
100-3176 |
HOUSING ASM Price: $1,172.62 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 31 |
252-71 |
WASHER-THRUST Price: $14.39 |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
252-66 |
BEARING-THRUST Price: $10.61 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 33 |
33-3720 |
WASHER Price: $11.87 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 39 |
98-4635 |
INSERT-PLATE, CAM Price: $167.59 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 42 |
74-9040 |
COUPLER Price: $73.91 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
