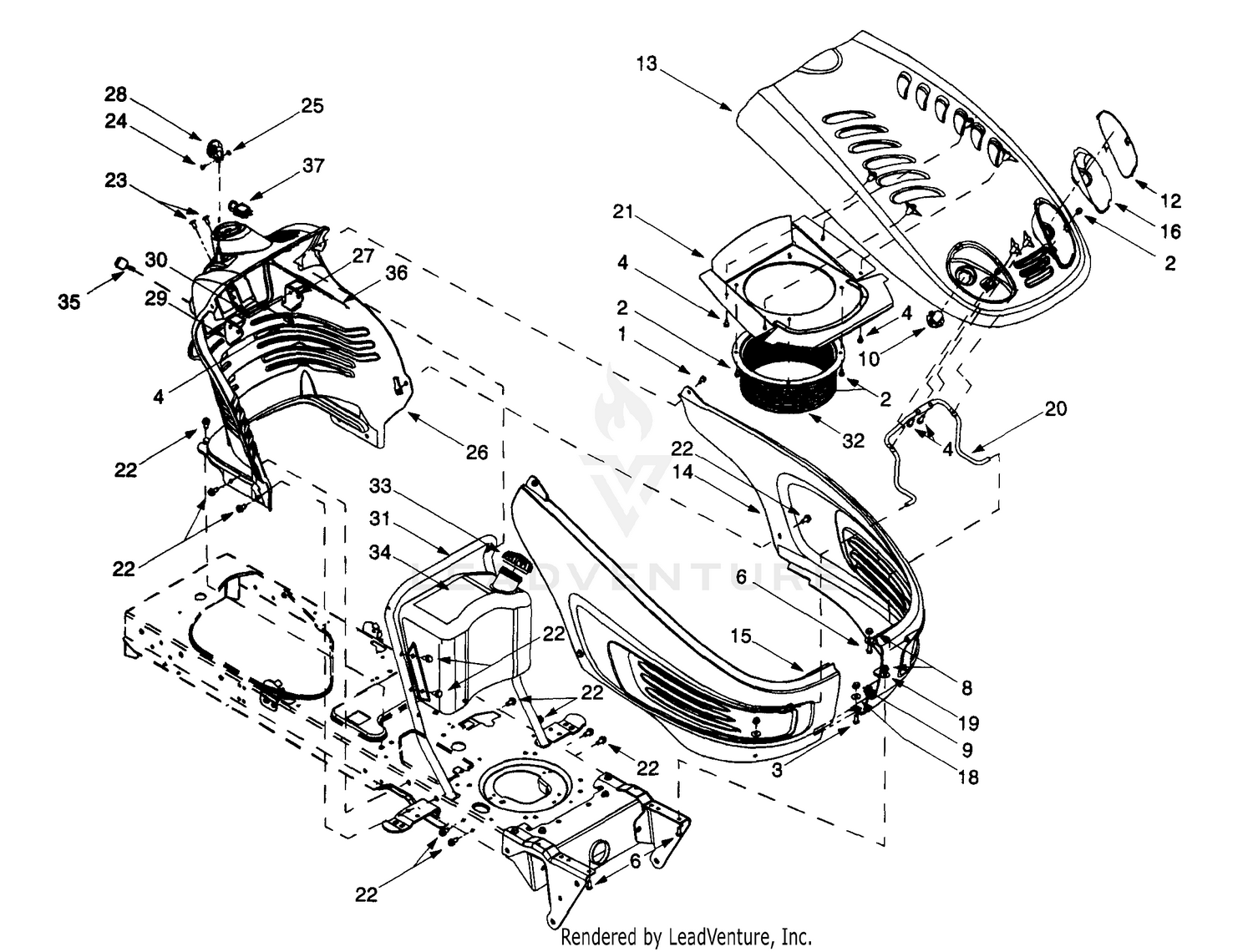

| Ref | Part Number | Description |
|---|
| 1 |
710-0788 |
Self Tapping Screw, 1/4-20 x 1.0 Price: $6.20 |
| 2 |
710-0599 |
Self Tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 3 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 4 |
710-0895 |
Self Tapping Screw, 1/4-15 x .75 Price: $5.82 |
| 6 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 8 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 9 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 10 |
925-1649A |
HEADLIGHT SOCKET (1/4 TURN) This part replaces 725-1649. Price: $10.30 |
| 12 |
931-1979 |
HEADLIGHT LENS (LH) Not Available This part replaces 731-1979. Price: |
| 13 |
731-2238 |
HOOD, 4-STYLE RED Not Available Price: |
| 14 |
753-0859 |
KIT (LH)&(RH) Not Available Price: |
| 15 |
753-0859 |
KIT (LH)&(RH) Not Available Price: |
| 16 |
777X41432 |
LABEL-LENSE Not Available This part replaces 731-1995. Price: |
| 18 |
736-0173 |
Flat Washer, .28 x .74 x .063 Price: $3.76 |
| 19 |
736-3078 |
Flat Washer, .349 x 1.0 x .063 Price: $3.95 |
| 20 |
747-1132A |
HOOD SUPPORT ROD Not Available This part replaces 747-1132. Price: |
| 21 |
783-0808A-0637 |
HEAT SHIELD Not Available This part replaces 783-0808. Price: |
| 22 |
710-0604A |
Self Tapping Screw, 5/16-18 x .625 Price: $3.96 |
| 23 |
710-1017 |
Torx Self Tapping Screw, 1/4-14 x .625 Price: $7.26 |
| 24 |
710-3217 |
Torx Screw, #8-32 x .375 Price: $5.94 |
| 25 |
712-0142 |
Hex Nut, 8-32 Price: $3.90 |
| 26 |
731-0071E |
DASH PANEL Not Available This part replaces 731-0071. Price: |
| 27 |
731-0072 |
LEVER-DASH BRAKE Not Available Price: |
| 28 |
731-1857 |
Throttle Control Lever Price: $12.90 |
| 29 |
731-2106 |
BUTTON-CRUISE CONT Not Available Price: |
| 30 |
747-1155 |
BRAKE/CRUISE PIVOT ROD Not Available Price: |
| 31 |
749-1087A-0637 |
DASH SUPPORT TUBE Not Available This part replaces 749-1087. Price: |
| 35 |
925-1745A |
IGNITION KEYS This part replaces 725-1745. Price: $15.91 |
