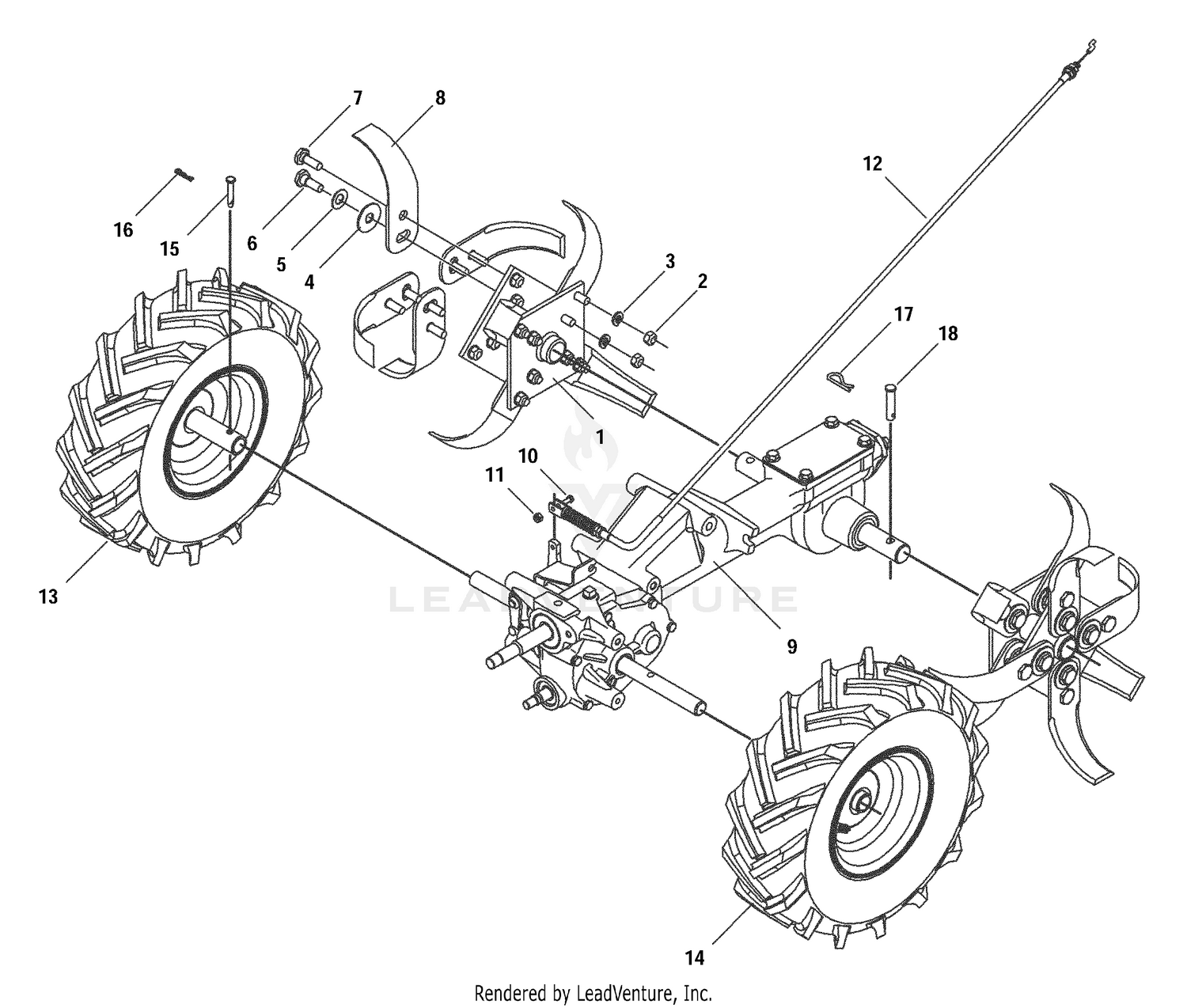

| Ref | Part Number | Description |
|---|
| 1 |
642-04015 |
Adapter Assembly, Tine Price: Call Us |
| 2 |
712-3054 |
Nut, 3/8-24, Hex, Lock Price: $3.90 |
| 3 |
736-0169 |
Washer, Lock, 3/8, Regular Duty Price: $3.33 |
| 4 |
736-0208 |
Washer, Flat,.51 x 1.5 x.07 Price: $4.02 |
| 5 |
736-0253 |
Washer, Bell,.525 x 1.00 x.050 Price: $3.58 |
| 6 |
938-0688 |
SHOULDER SCREW This part replaces 738-0688. Price: $9.14 |
| 7 |
938-0689 |
SHOULDER SCREW This part replaces 738-0689. Price: $7.87 |
| 8 |
742-0305A-0637 |
ARTICULATING TINE This part replaces 742-0305. Price: $19.19 |
| 9 |
618-04120 |
Transmission Assembly, Dual Direction Price: Call Us |
| 10 |
710-1194 |
Screw, Machine, #10-24, 1.00, Gr5 Price: $3.33 |
| 11 |
712-0161 |
Nut, Hex Lock, #10-24, Gr2, Nylon Price: $4.02 |
| 12 |
746-04150 |
Cable, Shift, Wheel Price: Call Us |
| 13 |
634-0240 |
WHEEL ASSEMBLY (14 x 4.5X 6) (RH) (GREY) Not Available Price: |
| 14 |
634-0241 |
WHEEL ASSEMBLY (14 x 4.5X 6) (LH) (GREY) Not Available Price: |
| 15 |
711-1017 |
Pin, Clevis,.250 x 1.53 Price: $6.57 |
| 16 |
714-0104 |
Pin, Cotter,.072 Dia. x 1.13 Lg Price: $3.90 |
| 17 |
714-0149B |
Internal Cotter Pin Price: $3.95 |
