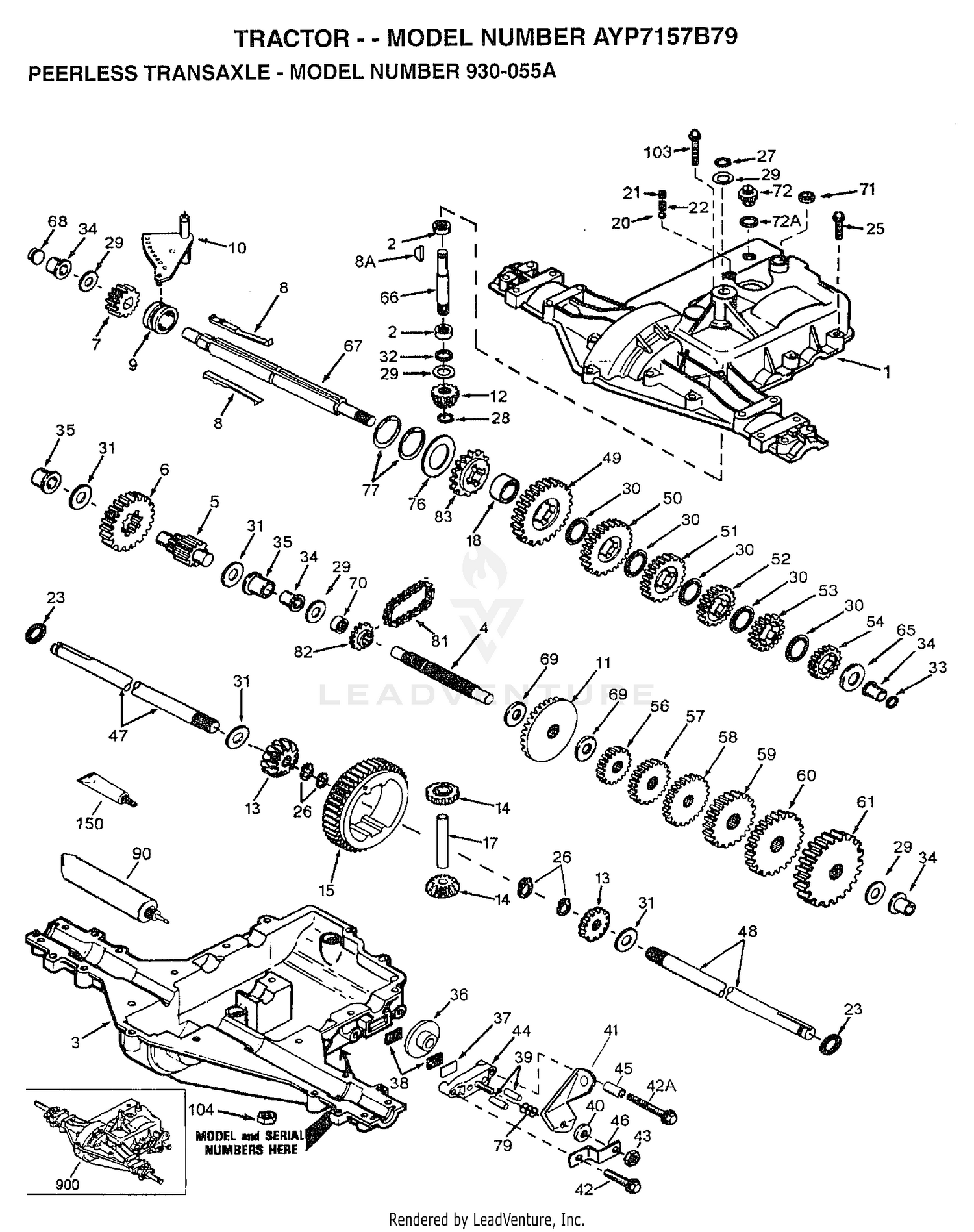

| Ref | Part Number | Description |
|---|
| 1 |
340-132 |
FITTING-ELBOW, 90 DEG Price: $24.64 |
| 1 |
772108A |
TRANSAXLE COVER Price: Call Us |
| 2 |
139-2650 |
CYLINDER, HYD This part replaces 105-3820. Price: $608.23 |
| 2 |
780086 |
BEARING, NEEDLE Price: Call Us |
| 3 |
283-68 |
PIN-CLEVIS Price: $11.26 |
| 3 |
770102A |
TRANSAXLE CASE Price: Call Us |
| 4 |
776260 |
SHAFT, COUNTER Price: Call Us |
| 4 |
99-4126 |
CENTER LIFT ARM ASM Price: $322.79 |
| 5 |
105-9781 |
SPRING-TORSION Price: $24.02 |
| 5 |
776219B |
OUTPUT SHAFT AND PINION Price: Call Us |
| 6 |
778139 |
GEAR, OUTPUT Price: Call Us |
| 6 |
98-2197 |
BUSHING-FLANGE Price: $1.82 |
| 7 |
778136 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 7 |
99-4116 |
REAR LIFT FRAME ASM Price: $376.66 |
| 8 |
105-9779 |
GUIDE-SPRING Price: $50.19 |
| 8 |
792136A |
SHIFT KEY Price: Call Us |
| 8A |
792047 |
KEY, WOODRUFF Price: Call Us |
| 9 |
784352 |
COLLAR, SHIFTER Price: Call Us |
| 10 |
784355 |
ROD & FORK ASSY, SHIFT Price: Call Us |
| 11 |
778229 |
GEAR, BEVEL, 42 TEETH Price: Call Us |
| 12 |
778113A |
BEVEL PINION, INPUT Price: Call Us |
| 13 |
778221 |
GEAR, BEVEL Price: Call Us |
| 14 |
778068 |
GEAR, BEVEL, PINION Price: Call Us |
| 15 |
33096-00 |
WASHER-FLAT Price: $1.76 |
| 15 |
778260 |
GEAR, RING Price: Call Us |
| 16 |
3272-11 |
PIN-COTTER Price: $0.99 |
| 17 |
786139 |
PIN, DRIVE Price: Call Us |
| 17 |
95-1639 |
FITTING-STR,ORIF Price: $63.47 |
| 18 |
32120-72 |
RING-SNAP Price: $2.09 |
| 18 |
786102 |
SPACER, NEUTRAL Price: Call Us |
| 19 |
63-2290 |
WASHER-THRUST Price: $2.27 |
| 20 |
792077 |
BALL STEEL, 5/16" DIA. Price: Call Us |
| 20 |
93-2258 |
HYD HOSE ASM Price: $43.64 |
| 21 |
792078 |
SCREW, 3/8-16 X 3/8" Price: Call Us |
| 21 |
94-3452 |
PIN Price: $10.04 |
| 22 |
792079 |
SPRING Price: Call Us |
| 22 |
94-8199 |
TUBE-PIVOT Price: $23.74 |
| 23 |
3296-53 |
NUT-LOCK, NI Price: $1.47 |
| 23 |
788061 |
RING, SEAL Price: Call Us |
| 24 |
327-25 |
SCREW-HH Price: $11.16 |
| 25 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 26 |
792125 |
RING RETAINER Price: Call Us |
| 26 |
94-3477 |
HYD HOSE ASM Price: $65.92 |
| 27 |
792035 |
RING, RETAINER Price: Call Us |
| 28 |
3218-5 |
NUT-JAM Price: $0.27 |
| 28 |
788040 |
RETAINING RING Price: Call Us |
| 29 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 29 |
780072 |
WASHER THRUST Price: Call Us |
| 30 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 30 |
780108 |
WASHER THRUST Price: Call Us |
| 31 |
780001 |
WASHER Price: Call Us |
| 32 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 33 |
32144-69 |
SCREW-HWHTF Price: $1.58 |
| 33 |
788095 |
SEAL, SQUARE CUT Price: Call Us |
| 34 |
325-5 |
SCREW-HH Price: $1.20 |
| 34 |
780105A |
BUSHING, FLANGED Price: Call Us |
| 35 |
780118A |
BUSHING, FLANGED Price: Call Us |
| 35 |
93-7489 |
ORIFICE VALVE ASM Price: $191.40 |
| 36 |
790003 |
DISK, BRAKE Price: Call Us |
| 36 |
99-4248 |
SPACER Price: $6.58 |
| 37 |
790007 |
PLATE BRAKE PAD Price: Call Us |
| 37 |
95-2927 |
FITTING-ELBOW 90 Price: $97.89 |
| 38 |
125-5222 |
BUSHING-ECCENTRIC, MACHINED This part replaces 98-4618. Price: $44.55 |
| 38 |
799021 |
BRAKE PAD Price: Call Us |
| 39 |
3256-74 |
WASHER-FLAT Price: $0.27 |
| 39 |
786026 |
PIN DOWEL Price: Call Us |
| 40 |
33114-016 |
SCREW-HH Price: $0.27 |
| 40 |
792076A |
WASHER Price: Call Us |
| 41 |
790079 |
BRAKE LEVER Price: Call Us |
| 41 |
99-4072 |
SPACER Price: $23.67 |
| 42 |
792073 |
SCREW, 1/4-20 X 1-1/4 Price: Call Us |
| 42 |
99-4111-01 |
PLATE-TRANSPORT, 1 AND 3 Price: $49.03 |
| 42A |
792085A |
SCREW, 1/4-20 X 2-1/4 Price: Call Us |
| 43 |
792075 |
LOCKNUT 5/16-24 Price: Call Us |
| 43 |
99-4225 |
PAD-WEAR Price: $10.18 |
| 44 |
325-7 |
SCREW-HH Price: $1.53 |
| 44 |
790025 |
HOLDER BRAKE PAD Price: Call Us |
| 45 |
786066 |
SPACER Price: Call Us |
| 45 |
99-4201 |
TUBE-SPACER Price: $10.91 |
| 46 |
786086 |
BRKT BRAKE LEVER Price: Call Us |
| 46 |
99-4246 |
LINK BRACKET ASM Price: $62.27 |
| 47 |
774690 |
AXLE Price: Call Us |
| 48 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 48 |
774691 |
AXLE Price: Call Us |
| 49 |
3250-17 |
SCREW-PPH Price: $1.76 |
| 49 |
778215 |
GEAR, SPUR, 37 TEETH Price: Call Us |
| 50 |
325-14 |
SCREW-HH Price: $2.64 |
| 50 |
778125 |
GEAR, SPUR, 35 TEETH Price: Call Us |
| 51 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 51 |
778124A |
GEAR, SPUR, 30 TEETH Price: Call Us |
| 52 |
778123A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 53 |
778122A |
GEAR, SPUR, 22 TEETH Price: Call Us |
| 54 |
778273 |
GEAR, SPUR, 19T Price: Call Us |
| 56 |
778230 |
GEAR, SPUR, 12 TEETH Price: Call Us |
| 57 |
778151 |
GEAR, SPUR, 15 TEETH Price: Call Us |
| 58 |
778126A |
GEAR, SPUR, 20 TEETH Price: Call Us |
| 59 |
778127A |
GEAR, SPUR, 25 TEETH Price: Call Us |
| 60 |
778128A |
GEAR, SPUR, 28 TEETH Price: Call Us |
| 61 |
778163 |
GEAR, SPUR, 31 TEETH Price: Call Us |
| 65 |
780109 |
WASHER, THRUST Price: Call Us |
| 66 |
776135 |
SHAFT, INPUT Price: Call Us |
| 67 |
776315A |
SHAFT, BRAKE, 4 KEYED Price: Call Us |
| 68 |
786116A |
PLUG Price: Call Us |
| 69 |
780051 |
WASHER THRUST Price: Call Us |
| 70 |
786118 |
SPACER Price: Call Us |
| 71 |
788069 |
SEAL SQUARE CUT Price: Call Us |
| 72 |
792165 |
THREADED PLUG 9/16-18 Price: Call Us |
| 76 |
780090 |
WASHER, THRUST Price: Call Us |
| 77 |
788078A |
INVERTED RETAINING RING Price: Call Us |
| 79 |
792144 |
SPRING Price: Call Us |
| 81 |
786081 |
CHAIN, ROLLER Price: Call Us |
| 82 |
786082 |
SPROCKET 9T Price: Call Us |
| 83 |
786123 |
SPROCKET 18T (REV) Price: Call Us |
| 90 |
788067B |
GREASE BENTONITE, 32 OZ. Price: Call Us |
| 103 |
792166 |
SCREW Price: Call Us |
| 104 |
792167 |
LOCKNUT Price: Call Us |
| 150 |
510334 |
GASKET ELIMINATOR Price: Call Us |
