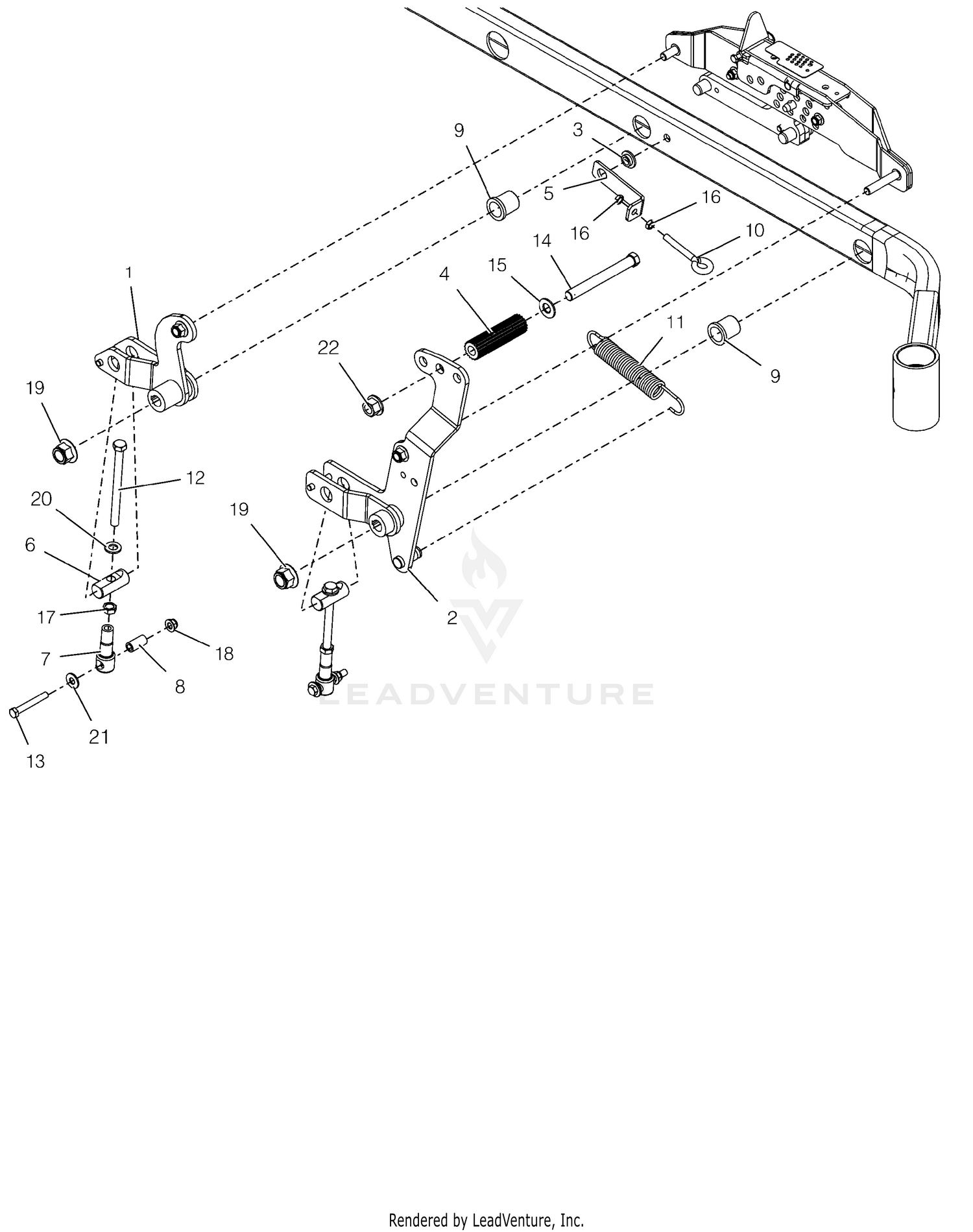

| Ref | Part Number | Description |
|---|
| 1 |
04896767 |
REAR RH DECK LIFT ARM WMT- LF Price: $94.95 |
| 2 |
04896967 |
FRT RH DECK LIFT ARM WMT- LF Price: $122.45 |
| 3 |
03989100 |
BSHG-FLG .515X.750X.310X1.120 Price: $3.45 |
| 4 |
05120951 |
ROD, FOOT PEDAL (BLACK) Price: $20.45 |
| 5 |
04777353 |
SPRING ANCHOR BRACKET - RED Price: $16.45 |
| 6 |
05149500 |
PIN, DECK LIFT Price: $14.95 |
| 7 |
05081400 |
LINK, DECK LIFT FORMED Price: $14.45 |
| 8 |
04895200 |
SPACER, DECK LEVELING Price: $2.45 |
| 9 |
05500934 |
BSHG-FLG 1.00X1.25X1.50X1.50 Price: $6.95 |
| 10 |
07030000 |
BLT-EYE .375-16X2.50 YWZC Price: $7.45 |
| 11 |
08319000 |
SG-TENS .162X1.25X8.25 WLD 25 Price: $29.95 |
| 12 |
05901924 |
BLT, HEX .50-13X6.00S G5 ZCC This part replaces 05901605. Price: $6.45 |
| 13 |
05901813 |
BLT, HEX .38-16X2.75 G8 ZCC This part replaces 05963000. Price: $1.45 |
| 14 |
05901730 |
BLT, HEX .62-11X5.50 G5 FBP Price: $6.45 |
| 15 |
06401039 |
WSHRFLT 5/8SAE CARBHARD FBP Price: $3.45 |
| 16 |
06500910 |
NUT-JAM .375-16 G2 ZCC This part replaces 06535900. Price: $0.95 |
| 17 |
06500911 |
NUT-JAM .500-13 G2 ZCC This part replaces 06529300. Price: $1.45 |
| 18 |
06500726 |
NUT,NYL-FLG .38-16 GF ZCC This part replaces 06545500. Price: $1.45 |
| 19 |
06500931 |
NUT,FLG-TOP LK .750-10 FCC This part replaces 06500717. Price: $3.45 |
| 20 |
06401116 |
WSHR, FLT .557X1.040X.102 ZCC This part replaces 06400418. Price: $1.45 |
| 21 |
06401008 |
WSHR-FLT .438X1.00X.083 ZCC This part replaces 06435900. Price: $1.45 |
