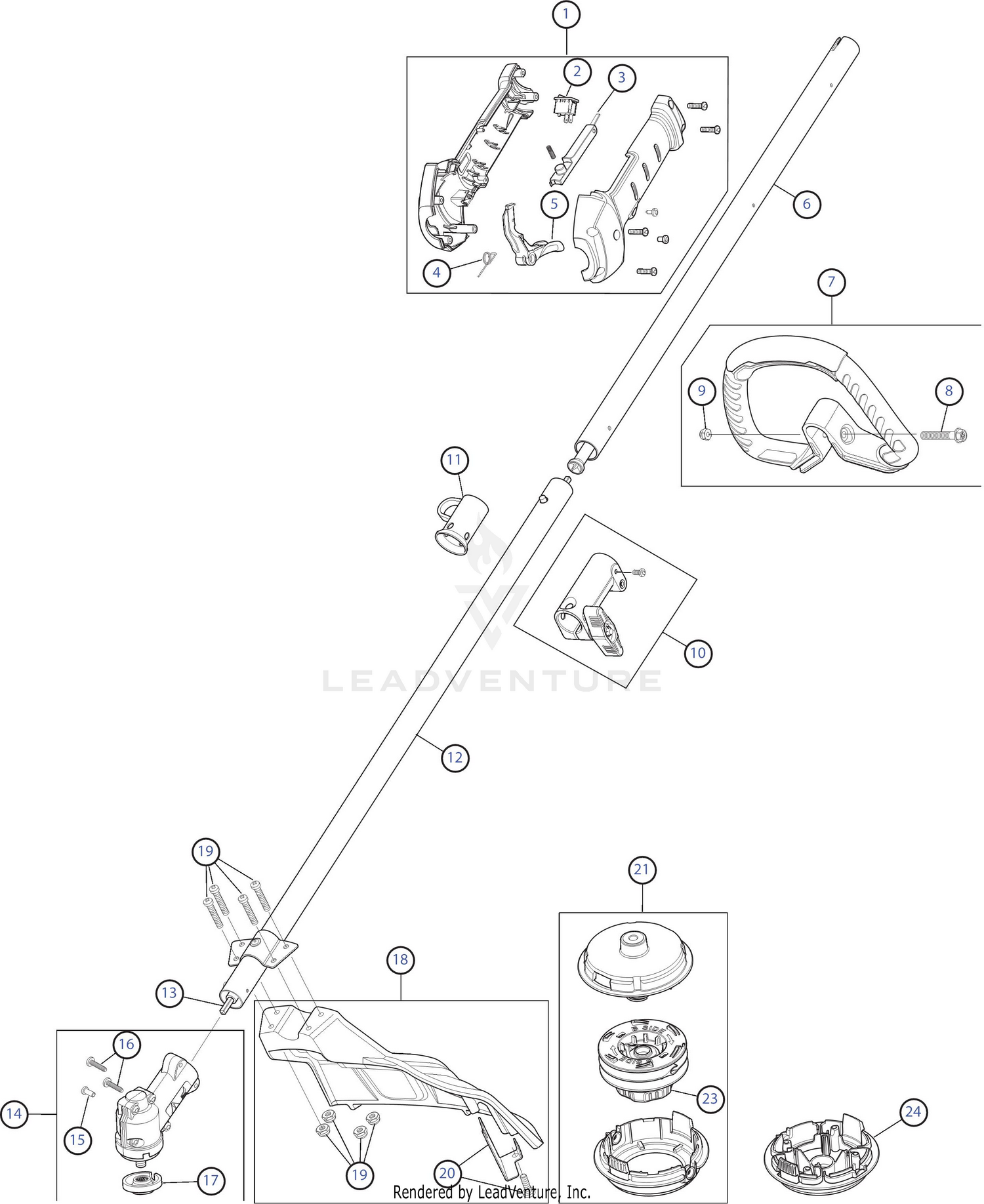

| Ref | Part Number | Description |
|---|
| 1 |
753-08564 |
Throttle Housing Assembly (Incl. 2 - 5) Price: $21.00 |
| 2 |
731-08433C-10 |
Throttle Trigger Lock-Out This part replaces 753-08378. Price: $2.72 |
| 3 |
753-05007 |
TRIGGER SPRING Price: $4.42 |
| 4 |
731-11788-10 |
Throttle Trigger Price: $3.58 |
| 5 |
791-182405 |
Switch Assembly Price: $9.29 |
| 6 |
753-06682 |
Upper Drive Shaft Housing Price: $15.87 |
| 7 |
753-06889 |
D-Handle Assembly (Incl. 8 & 9) Price: $8.14 |
| 8 |
753-06040 |
Bolt Price: $6.01 |
| 9 |
712-0324 |
Nut Price: $3.38 |
| 10 |
753-06886 |
Split Boom Coupler (with Screw) Price: $9.20 |
| 11 |
731-08926 |
Hanger Price: $2.32 |
| 12 |
753-08162 |
BOOM ASSEMBLY LOWER SLVR Not Available Price: |
| 13 |
753-05267 |
LOWER DRIVE SHAFT Price: $37.46 |
| 14 |
753-08180 |
Gearbox Assembly (Incl. 15 - 17) Price: $40.11 |
| 15 |
791-182519 |
Anti-rotation Screw Price: $4.37 |
| 16 |
791-182195 |
SCREW #10-24X11/16 T-25 Price: $6.20 |
| 17 |
748-05052 |
Cutting Head Driver Price: $2.83 |
| 18 |
753-05820 |
Shield Assembly (Incl. 19 & 20) Price: $21.37 |
| 19 |
753-06125 |
Shield Mounting Screws and Nuts Price: $5.94 |
| 20 |
753-05821 |
Blade Assembly Price: $8.03 |
| 21 |
841-012478S |
Cutting Head Assembly (Incl. 23) Price: $16.73 |
| 22 |
753-08563 |
Bump Knob Price: $3.11 |
| 23 |
841-032560S |
Cap Assembly (with Plug) Not Available Price: |
