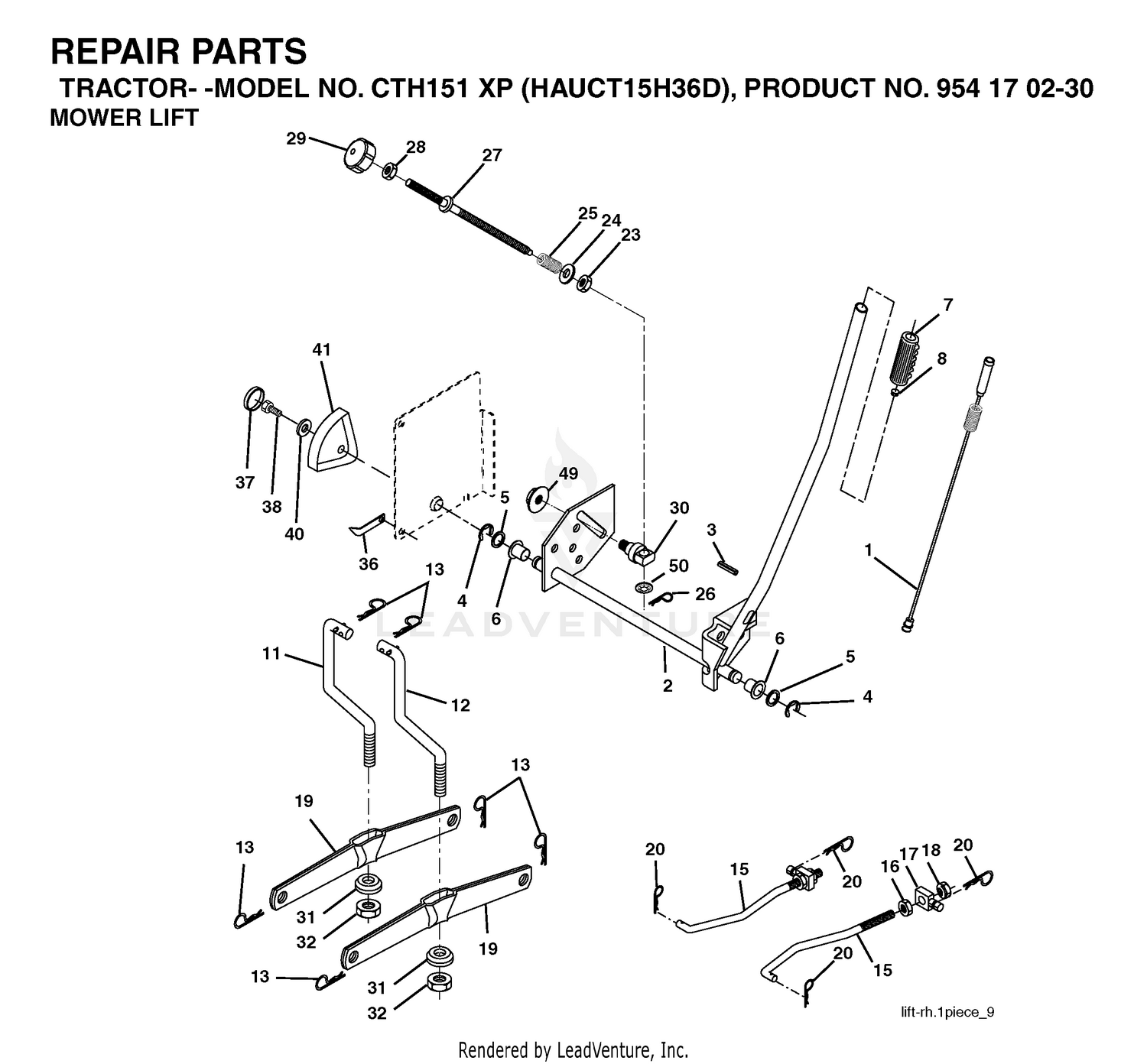

| Ref | Part Number | Description |
|---|
| 1 |
13-3740 |
DISCONTINUED Price: Call Us |
| 1 |
532159461 |
WIRE.ASM.INNER.SP Price: $12.99 |
| 2 |
13-2840 |
KEY-SQUARE Price: $1.40 |
| 2 |
532159476 |
SHAFT.ASM.LIFT.RH.INF Price: $54.99 |
| 3 |
5-1718 |
KEY-CLUTCH Price: $8.57 |
| 3 |
583172901 |
PIN.GROOVE.5/16 This part replaces 532188822. Price: $4.99 |
| 4 |
3247-3 |
SCREW-SET Price: $7.86 |
| 4 |
812000002 |
RETAINING RING LT Price: $3.99 |
| 5 |
3218-3 |
NUT-JAM Price: $0.25 |
| 5 |
819211621 |
WASHER Price: $4.99 |
| 6 |
251-234 |
COLLAR-LOCKING Price: $17.04 |
| 6 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 7 |
3246-2 |
SCREW-SET, HSH Price: $0.54 |
| 7 |
532125631 |
GRIP HANDLE Price: $6.99 |
| 8 |
13-6260 |
ADJUSTING SCREW ASM Price: $77.62 |
| 9 |
13-5520 |
SPACER-SCREW, ADJUSTING Price: $23.41 |
| 10 |
324-7 |
SCREW-HH Price: $1.79 |
| 11 |
532165828 |
LIFT LINK, LH This part replaces 532165829. Price: $17.99 |
| 11 |
603773 |
LOCKNUT This part replaces 32153-2. Price: $2.09 |
| 12 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 12 |
532165830 |
LINK ASSY. This part replaces 532165831. Price: $9.99 |
| 13 |
13-0100 |
PIVOT-LINK, RAKE LIFT Price: $61.98 |
| 13 |
532124670 |
RETAINER-SPRNG RB Price: $5.99 |
| 14 |
3219-3 |
NUT-HEX Price: $0.34 |
| 15 |
283-35 |
DISCONTINUED Price: Call Us |
| 15 |
532173288 |
LINK.SUSPENSION.FRONT Price: $11.99 |
| 16 |
1-633131 |
YOKE-LINKAGE, BRAKE This part replaces 282-22. Price: $14.99 |
| 16 |
596433401 |
Nuts This part replaces 873350800. Price: $2.99 |
| 17 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 17 |
532175689 |
TRUNNION Price: $3.99 |
| 18 |
108-0930 |
LIFTING BELL CRANK-RH This part replaces 13-5490. Price: $337.37 |
| 18 |
596135601 |
GSPW NUTS This part replaces 873800800. Price: $3.99 |
| 19 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 19 |
531165801 |
SERVICE KIT ARM ARM.REAR.SUSPE This part replaces 532139868. Price: $11.99 |
| 20 |
3217-8 |
NUT-HEX Price: $1.34 |
| 20 |
532003146 |
SPRING RETAINER This part replaces 532163552. Price: $2.99 |
| 21 |
3256-28 |
WASHER-FLAT Price: $0.48 |
| 22 |
3272-22 |
PIN-COTTER Price: $0.61 |
| 23 |
3247-6 |
SCREW-SET Price: $1.02 |
| 23 |
532110807 |
NUT T Price: $3.99 |
| 24 |
13-4880-01 |
SPROCKET This part replaces 13-4880. Price: $784.22 |
| 24 |
819131016 |
WASHER Price: $2.99 |
| 25 |
13-0480 |
SPRING Price: $30.51 |
| 25 |
532137150 |
SPRING.COMP.INF.H Price: $4.99 |
| 26 |
13-3990-01 |
HANDLE-TRIP This part replaces 13-3990. Price: $189.07 |
| 26 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 27 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 27 |
532137167 |
ROD.LIFT.ADJUSTABLE Price: $5.99 |
| 28 |
108-0928 |
LIFTING BELL CRANK-LH This part replaces 13-5500. Price: $337.37 |
| 28 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 29 |
13-0050 |
SPRING-EXTENSION Price: $93.83 |
| 29 |
532138057 |
KNOB INF 3/8-16 Price: $6.99 |
| 30 |
13-5530 |
ROD-ADJUST, SPRING Price: $67.42 |
| 30 |
532150233 |
TRUNNION Price: $9.99 |
| 31 |
13-4490-01 |
DISCONTINUED This part replaces 13-4490. Price: Call Us |
| 31 |
532169865 |
BEARING.PIVOT.LIFT Price: $5.99 |
| 32 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 32 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 33 |
322-7 |
SCREW-HH Price: $0.89 |
| 34 |
13-0160 |
DISCONTINUED Price: Call Us |
| 35 |
56-6230 |
BEARING-ROLLER This part replaces 251-244. Price: $72.34 |
| 36 |
13-4340 |
DISCONTINUED Price: Call Us |
| 36 |
532155097 |
POINTER, HEIGHT INDICATOR(2 2) Price: $4.99 |
| 37 |
13-3710 |
WASHER Price: $3.05 |
| 37 |
532123935 |
PLUG,HOLE Price: $4.99 |
| 38 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 38 |
593337601 |
Screws This part replaces 817060516. Price: $3.99 |
| 40 |
819112410 |
WASHER Price: $3.99 |
| 41 |
532123934 |
HEIGHT INDICATOR Price: $2.99 |
| 49 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $3.99 |
| 50 |
532110452 |
NUT PUSH M Price: $2.99 |
