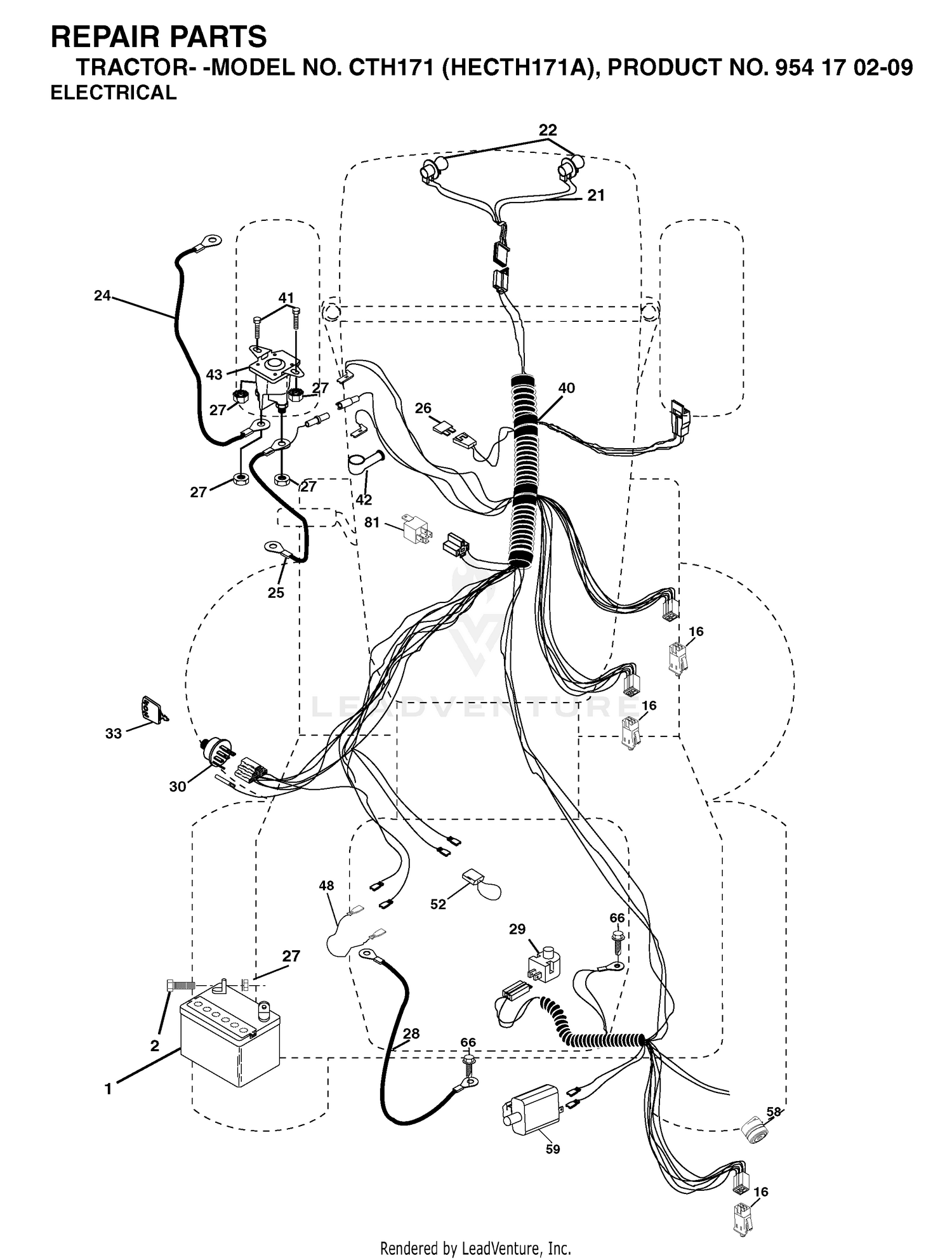

| Ref | Part Number | Description |
|---|
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532144927. Price: $149.99 |
| 2 |
105-3992-03 |
BRACKET-BULKHEAD Price: $45.94 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 4 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 5 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 6 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 7 |
140-6431 |
PIVOT PIN ASM This part replaces 95-7158. Price: $37.92 |
| 8 |
87-3470 |
BUMPER Price: $18.89 |
| 9 |
3-6781 |
WASHER-THRUST Price: $1.40 |
| 10 |
63-7400 |
WASHER-REBOUND Price: $1.70 |
| 11 |
105-9827 |
SHAFT Price: $77.02 |
| 12 |
136-3385 |
NO.2 LIFTARM ASM This part replaces 105-9202. Price: $800.50 |
| 13 |
136-3387 |
NO. 3 LIFTARM ASM This part replaces 105-9203. Price: $800.50 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
32151-36 |
RING-RETAINING Price: $1.73 |
| 16 |
127-6428 |
LIFT CYLINDER ASM This part replaces 107-1978. Price: $655.93 |
| 17 |
302-11 |
FITTING-LUBE, 45 DEG Price: $1.56 |
| 18 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 19 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 20 |
92-7548 |
PIN-CYLINDER Price: $16.62 |
| 21 |
532175688 |
HARNESS.W/LIGHT SOCKET Price: $29.99 |
| 21 |
76-2980 |
WASHER-THRUST Price: $5.08 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 23 |
131-4201 |
PIN-PIVOT This part replaces 104-5525. Price: $20.50 |
| 24 |
323-7 |
SCREW-HH Price: $0.65 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 25 |
532165987 |
CABLE BATTERY Price: $22.99 |
| 26 |
323-4 |
SCREW-HH Price: $1.02 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
105-9839 |
STOP-ROTATION, NO. 2 AND 3 Price: $67.21 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
3245-1 |
SCREW-SET, HSH Price: $0.54 |
| 28 |
532127725 |
CABLE GROUND Price: $4.18 |
| 29 |
131-7765-0P |
SUPPORT-BUMPER, REAR This part replaces 119-3941-03. Price: $77.14 |
| 29 |
532160784 |
PLUNGER SWITCH (COLOR:OLIVE) Price: $17.99 |
| 30 |
3234-11 |
SCREW-HHF Price: $1.23 |
| 30 |
532175566 |
IGNITION SWITCH Price: $22.99 |
| 31 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 33 |
136-3510 |
CARRIER FRAME ASM This part replaces 115-3453. Price: $664.28 |
| 33 |
532140401 |
KEY MLD GEN DELTA Price: $5.99 |
| 34 |
112-9900-03 |
GUARD-FOOT Price: $82.81 |
| 35 |
323-52 |
SCREW-HH Price: $3.63 |
| 36 |
93-8806 |
WASHER-HARDENED Price: $1.62 |
| 37 |
105-9823 |
BUSHING-CARRIER Price: $5.52 |
| 38 |
105-9822 |
SPACER Price: $3.16 |
| 40 |
532179728 |
NEEDS DESCRIPTION Price: Call Us |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532178861. Price: $19.99 |
| 48 |
532140844 |
ADAPTER.AMMETER Price: $4.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
| 58 |
532169420 |
KIT.BUZZER.CRD This part replaces 532169419. Price: $64.99 |
| 59 |
583100701 |
SWITCH.FBI.CRD This part replaces 532180379. Price: $11.99 |
| 66 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 81 |
532109748 |
RELAY.ASSY.T Price: $19.99 |
