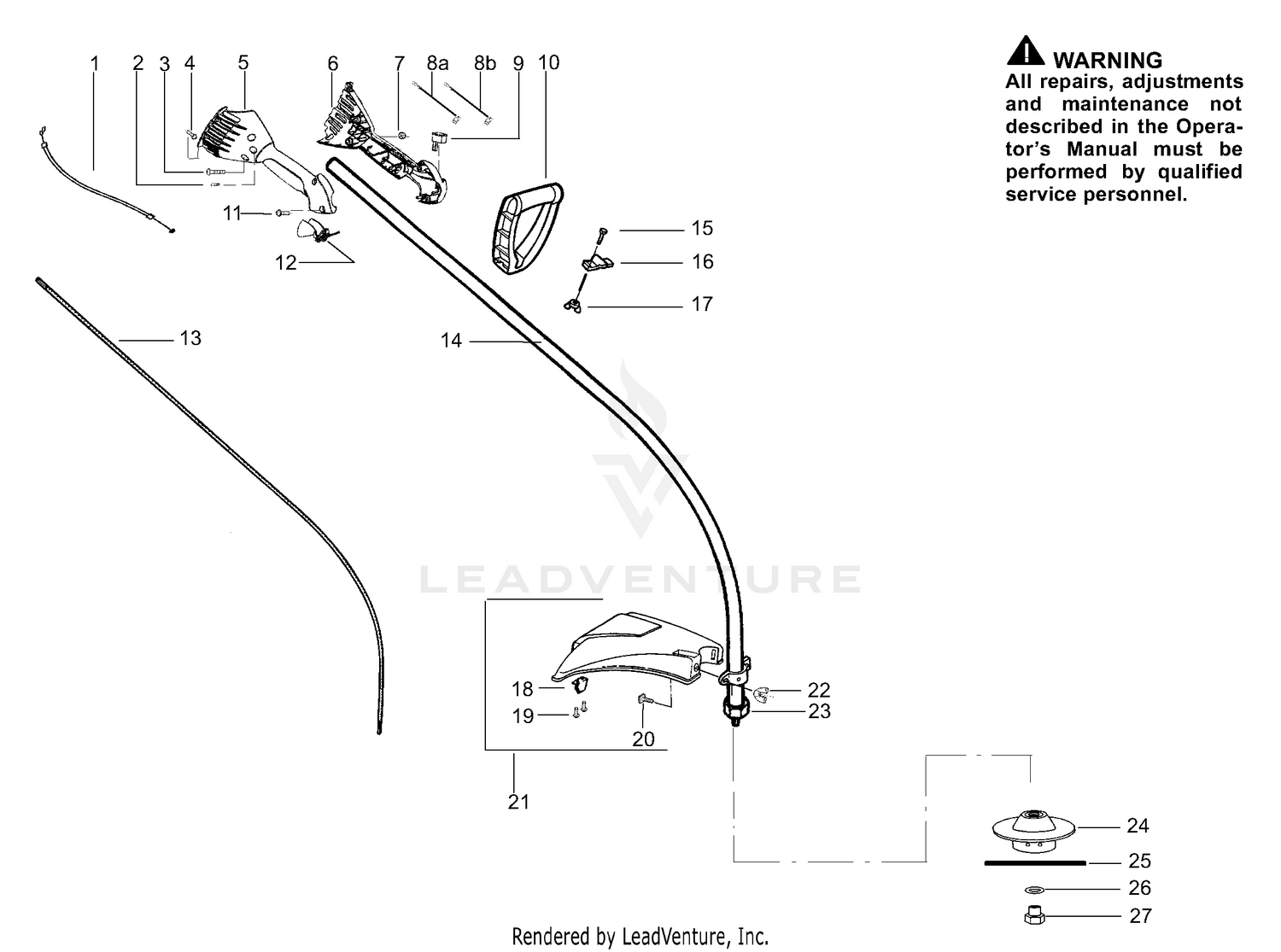

Drive Shaft & Cutting Head
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 107-2932 | CAP-OIL Price: $34.54 |
| 1 | 530054942 | Assy-Throttle cable Price: $3.99 |
| 2 | 107-2933 | PLUG Price: $10.91 |
| 2 | 530015805 | Screw-alignment Price: $1.99 |
| 3 | 117-9247 | SEAL Price: $64.90 |
| 3 | 530015774 | Screw-(10-24) Price: $1.99 |
| 4 | 107-2935 | CAP-OIL Price: $31.96 |
| 4 | 530015886 | Screw-handle/fan hsg. Price: $1.99 |
| 5 | 530054837 | Throttle Hsg.-Right Price: $6.99 |
| 6 | 530071553 | Kit-Left Throttle Hsg. Price: $7.99 |
| 7 | 530016284 | Nut-Hex (10-24) Price: $1.99 |
| 8A | 530054943 | Assy-Front wire Price: $1.99 |
| 8B | 530055724 | Assy-Front wire (upper) Price: $4.99 |
| 9 | 530071356 | Kit-Switch Price: $4.99 |
| 10 | 530055699 | Assy-Assist Handle This part replaces 530094673. Price: $11.99 |
| 11 | 530015886 | Screw Price: $1.99 |
| 12 | 530054940 | Trigger-Throttle Price: $1.99 |
| 13 | 530095964 | Shaft-Flex Price: $17.99 |
| 14 | 530055371 | Assy-Driveshaft Price: $37.99 |
| 15 | 530015820 | Bolt Price: $1.99 |
| 16 | 530094847 | Clamp-Handle assist Price: $2.99 |
| 17 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 18 | 530052285 | Limiter-Line Price: $1.99 |
| 19 | 530015814 | Screw Price: $1.99 |
| 20 | 530015820 | Bolt Price: $1.99 |
| 22 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 23 | 530094543 | Dustcup Price: $1.99 |
| 24 | 530054485 | Assy-Cutting Head Price: $19.99 |
| 25 | 530095953 | Tube-Line Price: $3.33 |
| 26 | 530016296 | Washer Price: $1.99 |
| 27 | 530016297 | Nut-Shoulder Price: $1.99 |
