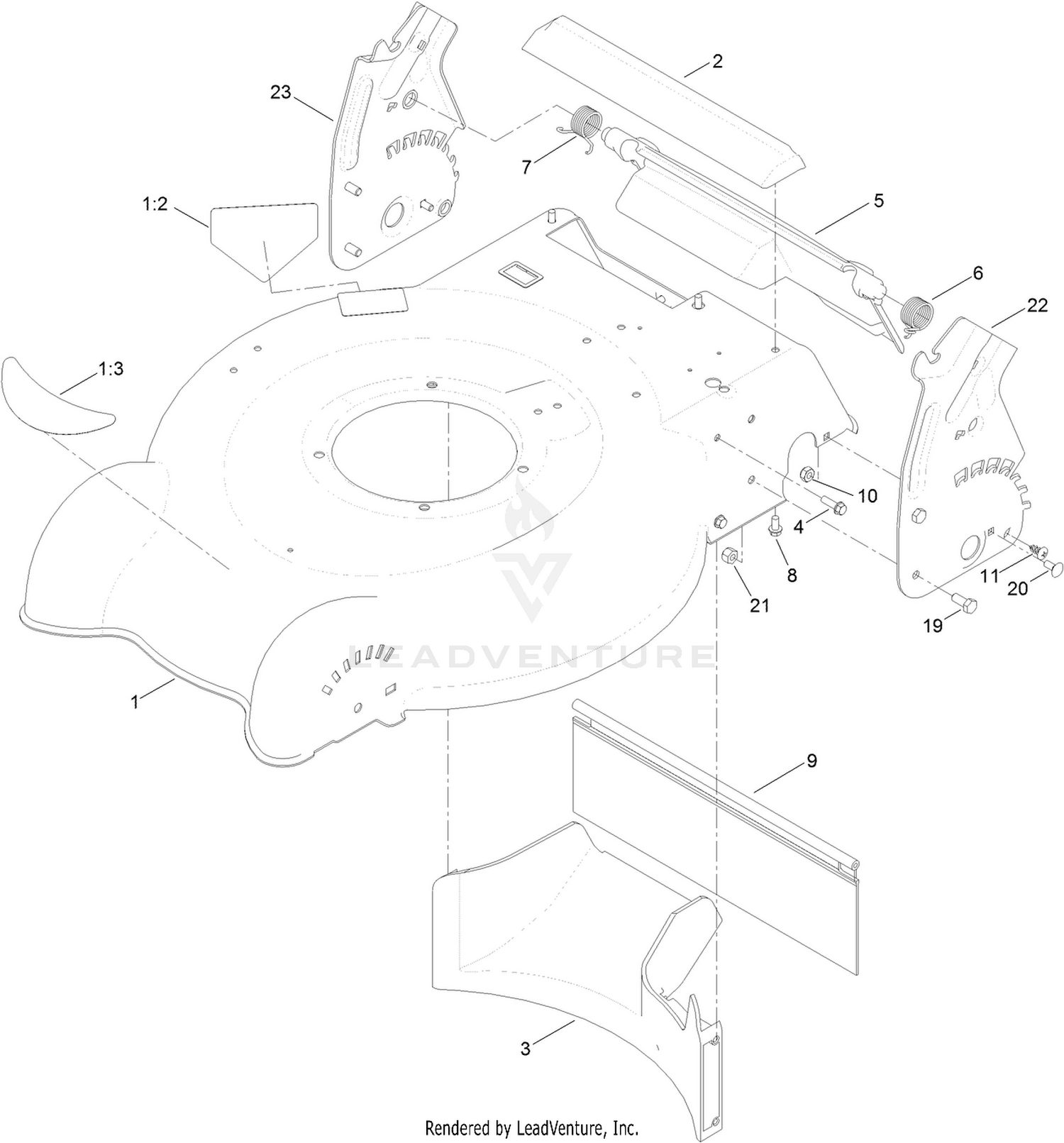

| Ref | Part Number | Description |
|---|
| 1 |
117-5944 |
HOUSING ASM Price: $135.64 |
| 2 |
112-8845 |
CHUTE-REAR Price: $8.08 |
| 3 |
112-8821 |
BAFFLE-REAR Price: $21.23 |
| 4 |
46-8091 |
SCREW-HWH Price: $3.59 |
| 5 |
119-7029 |
REAR DEFLECTOR ASM Price: $15.03 |
| 6 |
119-7015 |
SPRING-TORSION, LH Price: $2.31 |
| 7 |
119-7016 |
SPRING-TORSION, RH Price: $2.31 |
| 8 |
46-8093 |
SCREW-PLASTITE Price: $0.88 |
| 9 |
125-2517 |
SHIELD-TRAILING Price: $15.03 |
| 10 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 11 |
139-1692 |
SCREW-THD This part replaces 117-1092. Price: $0.32 |
| 19 |
322-3 |
SCREW-HH Price: $0.79 |
| 20 |
3229-11 |
SCREW-CARR Price: $0.99 |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
112-8822-03 |
PLATE-HOC, LH Price: $17.85 |
