| Ref | Part Number | Description |
|---|
| 1 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 2 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 4 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |
| 5 |
104-4620 |
SEAT This part replaces 92-1180. Price: $273.15 |
| 6 |
323-4 |
SCREW-HH Price: $1.02 |
| 7 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 8 |
3212-4 |
SCREW-HH Price: $2.73 |
| 9 |
3296-54 |
NUT-LOCK Price: $3.59 |
| 10 |
75-4370-03 |
BRACKET-SEAT This part replaces 75-4370. Price: $20.93 |
| 11 |
92-8753 |
DISCONTINUED Price: Call Us |
| 12 |
3250-29 |
SCREW-PPH Price: $0.25 |
| 13 |
92-8001 |
SENSOR-SWITCH, REED Price: $86.02 |
| 14 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 15 |
75-4360-03 |
BRACKET-SUSPENSION, SEAT This part replaces 75-4360. Price: $17.81 |
| 16 |
74-0720 |
TUBE-MANUAL Price: $22.99 |
| 17 |
2412-133 |
CLAMP-R Price: $3.19 |
| 18 |
322-3 |
SCREW-HH Price: $0.79 |
| 19 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 20 |
75-3400 |
SHAFT-PIVOT, SEAT Price: $21.81 |
| 21 |
2412-93 |
CLAMP-R Price: $1.02 |
| 22 |
92-6534 |
ORDER COMPLETE SEAT Price: Call Us |
| 23 |
351-78 |
EDGING Price: $60.98 |
| 501466901 |
501466901 |
SCREW Price: $7.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666201 |
501666201 |
COVER, PUMP SIDE Price: $5.99 |
| 501666701 |
501666701 |
THROTTLE STOP Price: $0.83 |
| 501667001 |
501667001 |
GASKET, METERING SIDE Price: $6.99 |
| 501667301 |
501667301 |
METERING DIAPHRAGM Price: $64.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 502254501 |
502254501 |
Throttle Shaft Price: $5.13 |
| 502254601 |
502254601 |
THROTTLE FLAP Price: $2.54 |
| 502254701 |
502254701 |
PUMP DIAPHRAGM Price: $19.99 |
| 502263602 |
502263602 |
Lever Price: $5.92 |
| 502274901 |
502254601 |
THROTTLE FLAP This part replaces 502274901. Price: $2.54 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503176301 |
503176301 |
COVER METERING DIAPHR. Price: $4.99 |
| 503281619 |
503281016 |

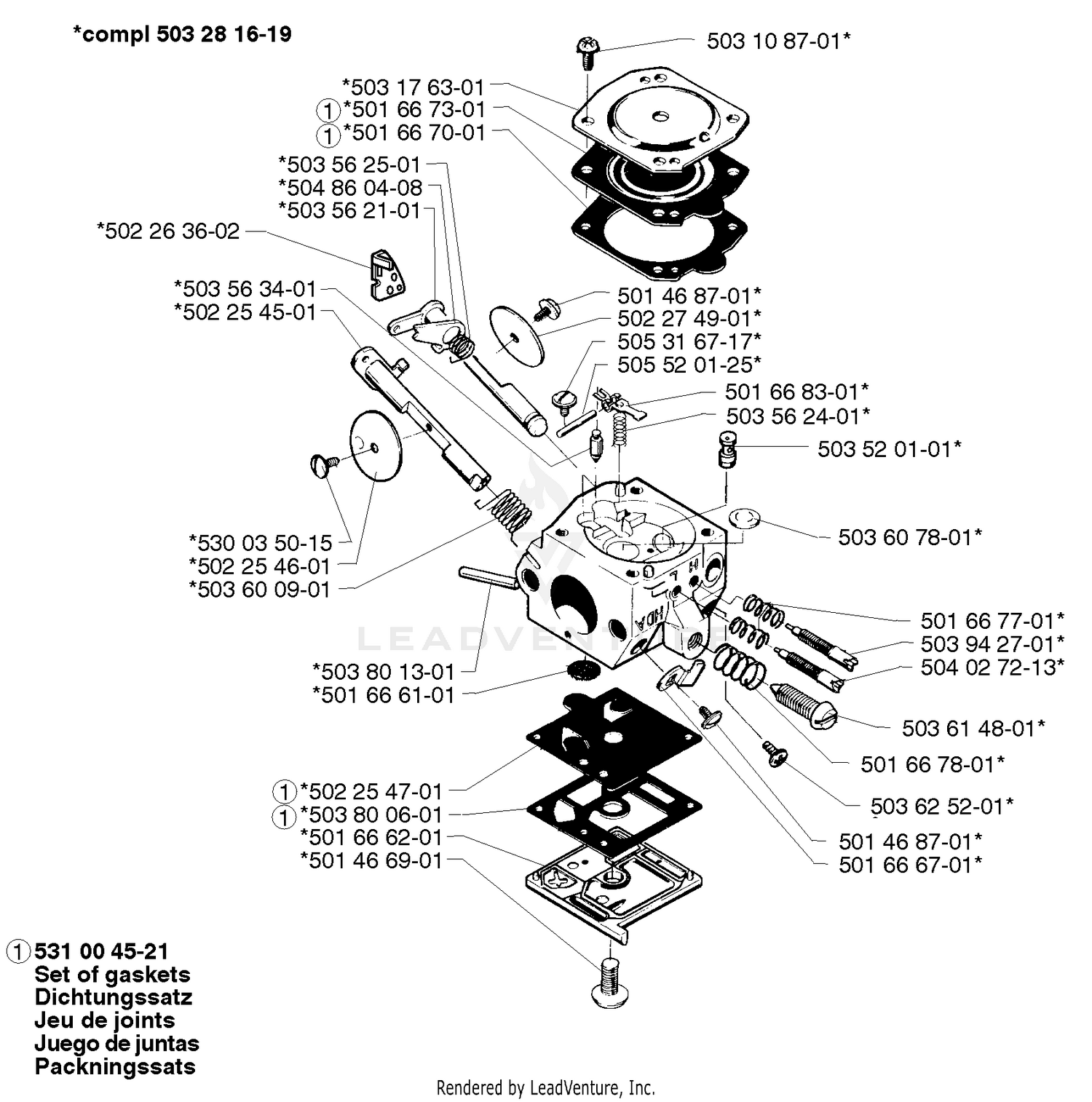

CARBURETOR This part replaces 503281619. Price: $77.47 |
| 503520101 |
503524201 |
NOZZLE This part replaces 503520101. Price: $8.58 |
| 503562101 |
503562101 |
Choke Shaft Price: $3.68 |
| 503562401 |
503562401 |
SPRING Price: $6.99 |
| 503562501 |
537158101 |
SPRING This part replaces 503562501. Price: $9.99 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503600901 |
503600901 |
Spring Price: $0.63 |
| 503607801 |
503574201 |
WELCH PLUG This part replaces 503607801. Price: $6.99 |
| 503614801 |
503614801 |
IDLE SPEED SCREW Price: $2.99 |
| 503625201 |
503625201 |
SCREW Price: $0.55 |
| 503800601 |
501666901 |
GASKET, PUMP SIDE This part replaces 503800601. Price: $14.99 |
| 503801301 |
503801301 |
CONNECTION Price: $8.99 |
| 503942701 |
503942701 |
Needle High Speed Price: $6.47 |
| 504027213 |
504027213 |
IDLING SCREW Price: $5.99 |
| 504860408 |
537158201 |
LEVER This part replaces 504860408. Price: $3.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
| 531004521 |
531004521 |
GASKET SET Price: $4.04 |
