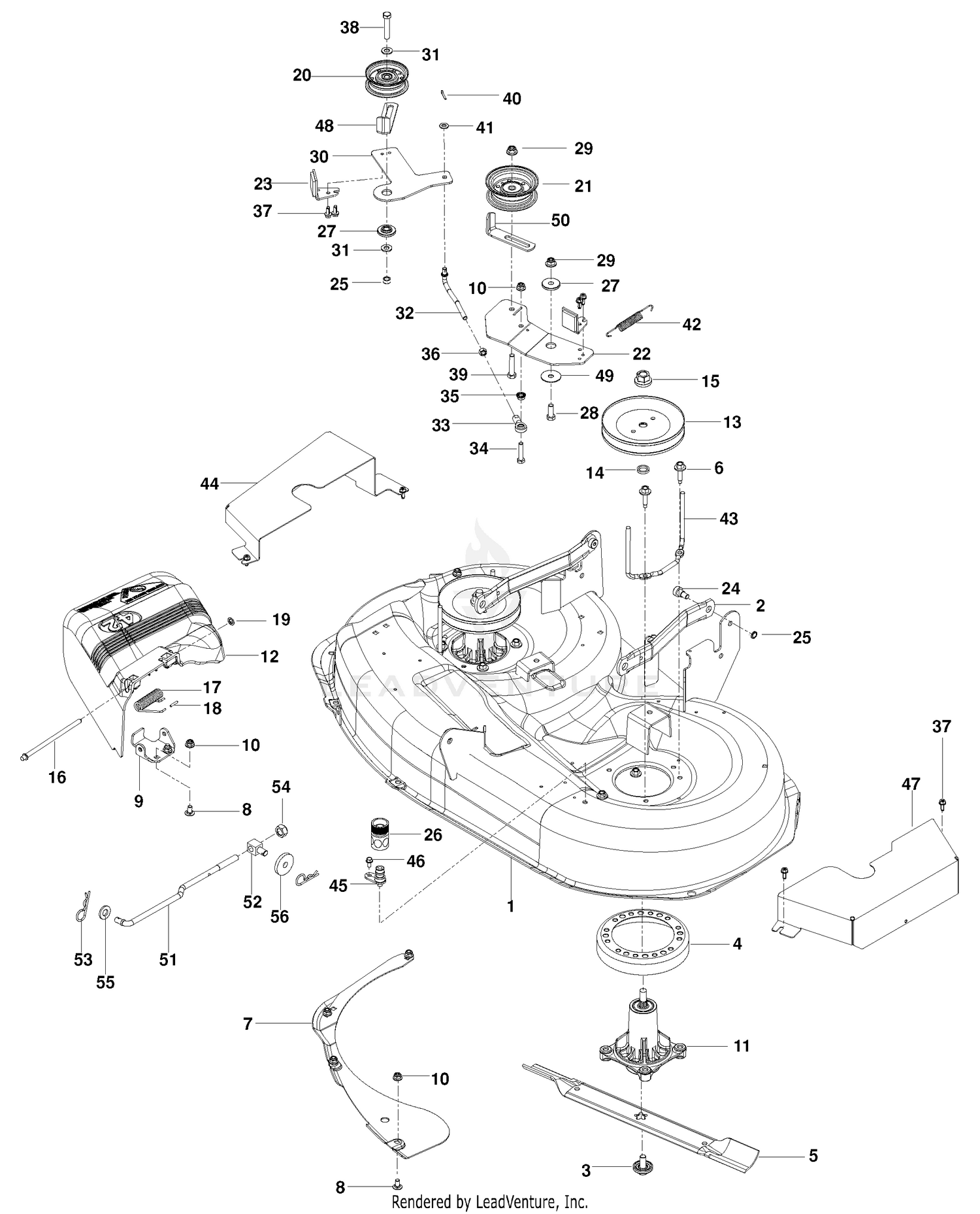

| Ref | Part Number | Description |
|---|
| 1 |
237-21 |
O-RING Price: $0.70 |
| 1 |
575699801 |
DECK.SVC W/DECALS 42" HTC RZ Price: $699.99 |
| 2 |
322-3 |
SCREW-HH Price: $0.79 |
| 2 |
531169201 |
SERVICE KIT ARM ARM.SUSPENSION This part replaces 532195185. Price: $12.99 |
| 3 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 3 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 4 |
531167701 |
SERVICE KIT MANDREL STRIPPER This part replaces 539107518. Price: $6.99 |
| 4 |
82-9330 |
BRACKET - SENSOR *R Price: $24.29 |
| 5 |
23-1840 |
BUSHING-TAPERLOCK Price: $92.22 |
| 6 |
237-22 |
O-RING Price: $2.43 |
| 6 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 539107630. Price: $3.99 |
| 7 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 7 |
531167001 |
SERVICE KIT BAFFLE.VORTEX BAFF This part replaces 539110463. Price: $11.99 |
| 8 |
237-42 |
O-RING Price: $2.78 |
| 8 |
596039401 |
BOLT ROUND HEAD SQUARE NECK BO This part replaces 539990799. Price: $2.99 |
| 9 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 9 |
58-0070 |
DISC BRAKE ASM Price: $316.73 |
| 10 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 11 |
237-118 |
O-RING Price: $1.73 |
| 11 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192870. Price: $49.99 |
| 12 |
532403004 |
SHIELD.DEFLECTOR.MOWER.42"BLAC This part replaces 532193108. Price: $29.99 |
| 12 |
58-5430 |
PISTON MOTOR ASM Price: $3,072.75 |
| 13 |
237-81 |
O-RING Price: $2.76 |
| 13 |
532195945 |
PULLEY.MANDREL.5.438.P Price: $12.99 |
| 14 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 14 |
532187690 |
WASHER.SPACER.MANDREL This part replaces 539107520. Price: $3.99 |
| 15 |
237-58 |
O-RING Price: $2.18 |
| 15 |
596134801 |
Nuts This part replaces 539107590. Price: $1.00 |
| 16 |
323-18 |
SCREW-HH Price: $0.82 |
| 16 |
595297001 |
Rods This part replaces 539110462. Price: $4.99 |
| 17 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 17 |
539107609 |
TORSION SPRING This part replaces 539110328. Price: $4.99 |
| 18 |
353-949 |
O-RING Price: $3.49 |
| 18 |
532105304 |
CAP-SLEEVE LT This part replaces 539107627. Price: $3.99 |
| 19 |
532110452 |
NUT PUSH M This part replaces 539107626. Price: $2.99 |
| 19 |
60-6990 |
WASHER Price: $4.62 |
| 20 |
327-3 |
SCREW-HH Price: $1.49 |
| 20 |
539919078 |
IDLER PULLEY Price: $27.99 |
| 21 |
532177968 |
PULLEY.IDLER.FLAT Price: $27.99 |
| 22 |
3247-10 |
SETSCREW Price: $0.55 |
| 22 |
574694505 |
ARM DECK IDLER ARM.IDLER.BLACK This part replaces 574694502. Price: $19.99 |
| 23 |
3219-5 |
NUT-HEX Price: $1.22 |
| 23 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 529311801. Price: $14.99 |
| 24 |
58-5610 |
RIM Price: $360.43 |
| 24 |
596241101 |
Bolts This part replaces 539113621. Price: $2.99 |
| 25 |
58-5620 |
TUBE Price: $89.16 |
| 25 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 26 |
136-3327 |
TIRE This part replaces 63-4480. Price: $404.86 |
| 26 |
532416405 |
COUPLING.QUICK CONNECT Price: $8.99 |
| 27 |
323-20 |
SCREW-HH Price: $1.28 |
| 27 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 28 |
58-3780 |
TUBE-SPACE Price: $25.99 |
| 28 |
596564401 |
Bolts This part replaces 539990563. Price: $3.99 |
| 29 |
29-1060 |
BRACKET-SECONDARY Price: $135.49 |
| 29 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 30 |
574693302 |
ARM.BRAKE.42.BLACK Price: $17.99 |
| 31 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 539990122. Price: $2.99 |
| 32 |
574694601 |
LINKAGE, DECK BRAKE Price: $58.99 |
| 32 |
58-0110-03 |
BRACKET-CALIPER, BRAKE This part replaces 58-0110. Price: $142.37 |
| 33 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 33 |
539102590 |
BALL JOINT, RIGHT HANDED Price: $19.99 |
| 34 |
29-1070 |
LEVER ASM Price: $64.17 |
| 34 |
596582201 |
Bolts This part replaces 539976935. Price: $2.99 |
| 35 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 35 |
596039201 |
GSPW Hardware This part replaces 539990585. Price: $2.99 |
| 36 |
596582601 |
Nuts This part replaces 539990196. Price: $2.99 |
| 36 |
60-1740 |
NUT Price: $1.53 |
| 37 |
532137729 |
SCREW.1/4-20X5/8 This part replaces 539107631. Price: $3.99 |
| 37 |
58-2300 |
LINK-BRAKE Price: $30.30 |
| 38 |
283-67 |
PIN-CLEVIS Price: $2.04 |
| 38 |
539990588 |
HCS 3/8C X 2 Price: $3.99 |
| 39 |
29-1080 |
BRAKE PAD Price: $66.87 |
| 39 |
596583901 |
Bolts This part replaces 539990730. Price: $2.99 |
| 40 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 40 |
596029501 |
Pins This part replaces 539990365. Price: $2.99 |
| 41 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 41 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T This part replaces 539990188. Price: $2.99 |
| 42 |
532401872 |
SPRING RETURN Price: $4.99 |
| 42 |
82-9280 |
DISC WA Price: $599.98 |
| 43 |
340-90 |
DISCONTINUED Price: Call Us |
| 43 |
532400140 |
BELT KEEPER.MANDREL.38"COATED Price: $39.99 |
| 44 |
340-11 |
ADAPTER Price: $40.75 |
| 44 |
575754602 |
GUARD.RIGHT.BELT.42"BLACK Price: $89.99 |
| 45 |
532415598 |
PORT.WASHOUT Price: $6.99 |
| 46 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 47 |
575754502 |
GUARD.LEFT.BELT.42" BLACK Price: $69.99 |
| 48 |
525851801 |
GUIDE, BELT Price: $11.99 |
| 49 |
539102998 |
WASHER, FRICTION Price: $4.99 |
| 50 |
525851801 |
GUIDE, BELT Price: $11.99 |
| 51 |
581506902 |
Links This part replaces 532195740. Price: $9.99 |
| 52 |
539114789 |
SWIVEL Price: $11.99 |
| 53 |
596273101 |
Pins This part replaces 539976989. Price: $2.99 |
| 54 |
573975201 |
NUT, 7/16-20 HEX NYLOC ZC Price: $2.99 |
| 55 |
595086801 |
Washers This part replaces 539990250. Price: $2.99 |
| 56 |
596770301 |
Washers This part replaces 539106504. Price: $4.99 |
